Hardware Setup
20
D6200 WiFi DSL Modem Router
• Two-line ADSL microfilter with built-in splitter (included). Use to share an outlet with a
phone and the WiFi DSL modem router.
Cable Your D6200 WiFi DSL Modem Router
Do not stack equipment or place equipment in tight spaces, in
drawers, or on carpets. Be sure that your equipment is
surrounded by at least 2
inches of air space. The unit should not
be wall mounted.

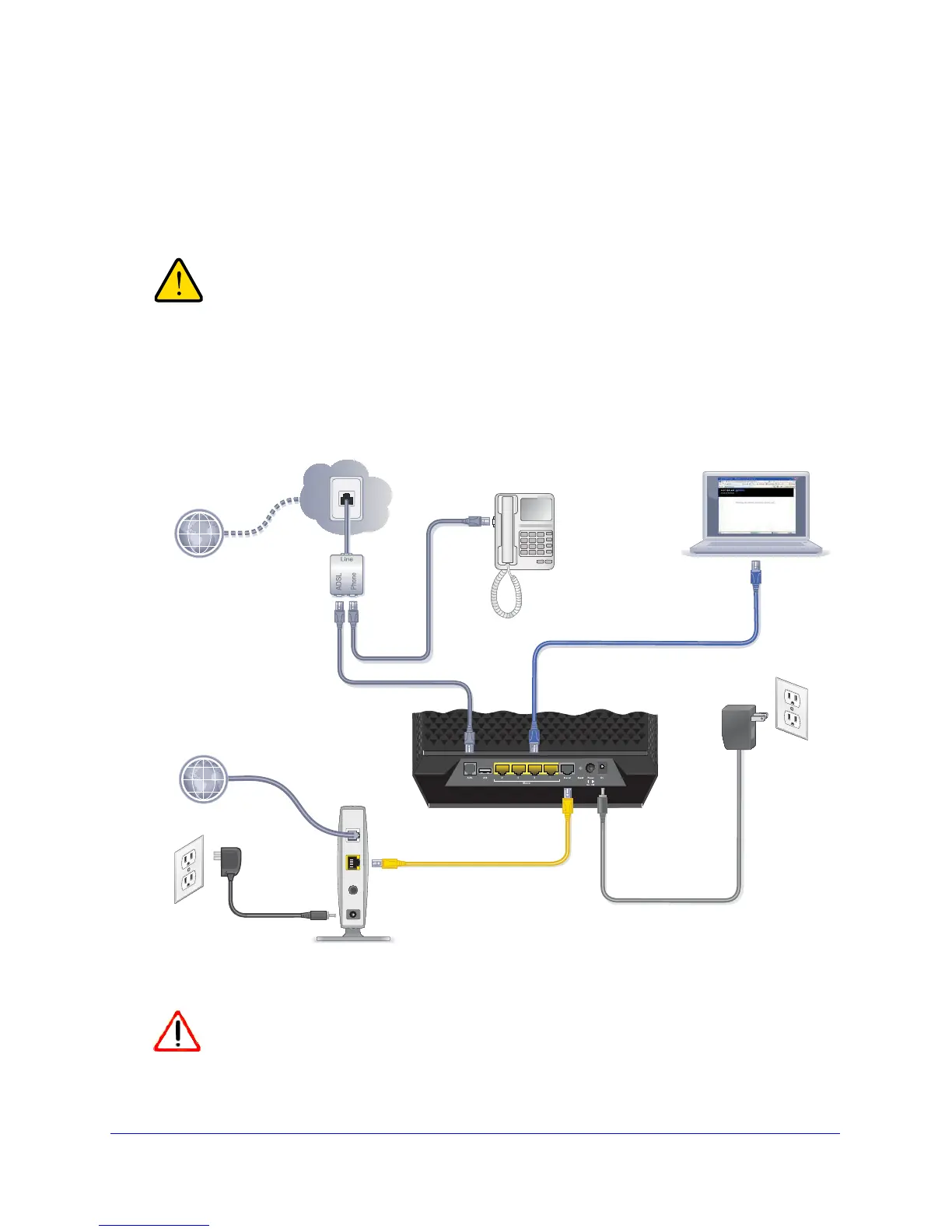

The installation guide that came in the box has a cabling diagram on the second page.
1ADSL
OR
cable/fiber
3 Power
2 Computer
4 Browser
modem
Figure 8. Cabling diagram
Incorrectly connecting a filter to your WiFi DSL modem router blocks your
ADSL connection.
