GS716T and GS724T Gigabit Smart Switches
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
6. If you make any changes to the page, click Apply to apply the change to the system.
MRP Port Settings
Use the MRP Port Settings page to configure the per-port MRP mode and timer settings. The
timers control when and how often various messages are transmitted on each interface.

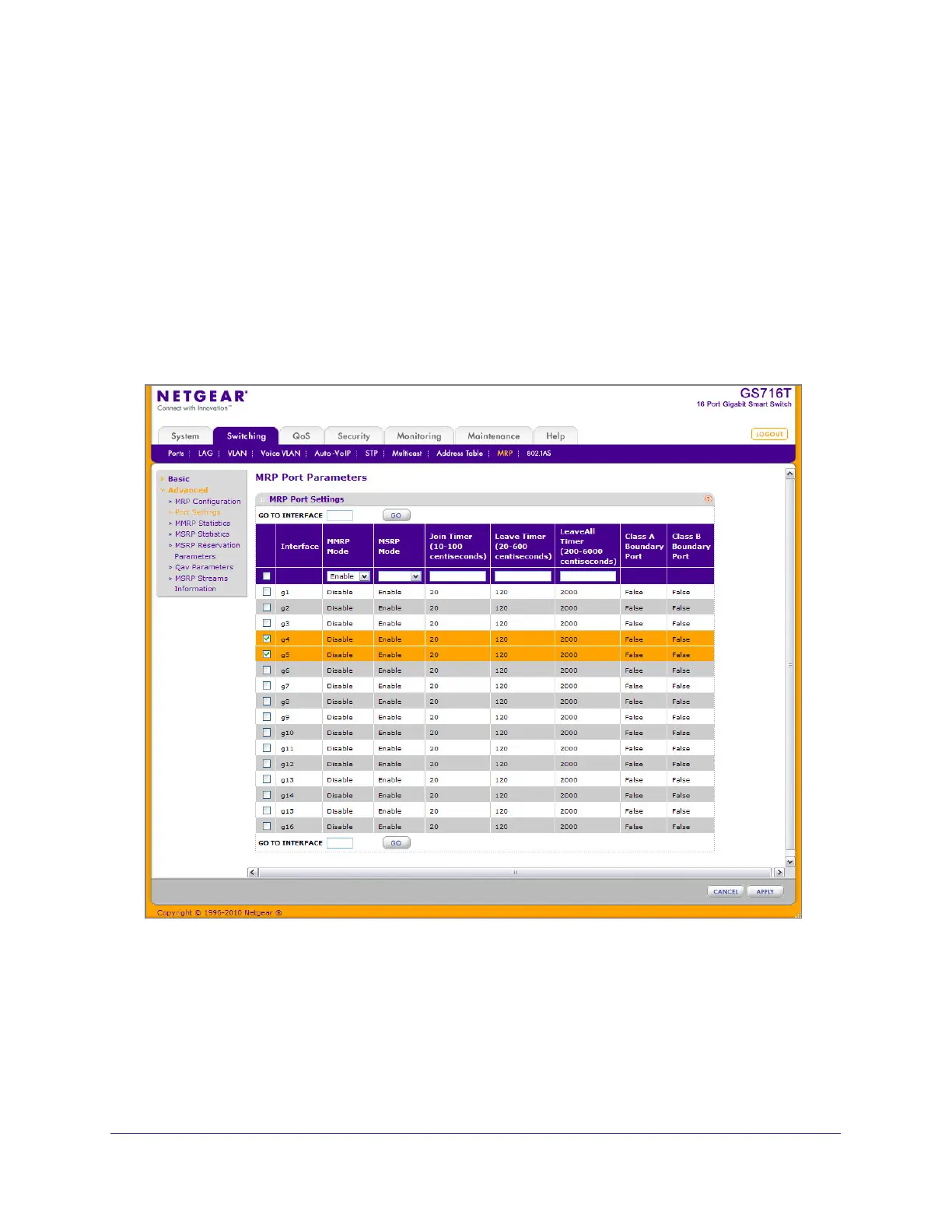

To access the Port Settings page click Switching> MRP > Advanced > Port Settings in the
navigation tree. In the following image, the MMRP mode on ports g4 and g5 is being enabled.
To configure the MRP port parameters:
1. Select the check box next to the port to configure. You can select multiple ports to apply
the same settings to the selected interfaces. Select the check box in the heading row to
apply the same settings to all interfaces.
2. Configure the following MRP port settings:
a. Enable or disable MMRP on the interface. The default mode is Disable.
b. Enable or disable MSRP on the interface. The default mode is Disable.

NETGEAR GS724T Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	0.5 MB
Maximum data transfer rate	1 Gbit/s
Dimensions (WxDxH)	43 x 440 x 260 mm
Connectivity technology	Wired
Non-operating relative humidity (non-condensing)	0 - 95 %
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Mean time between failures (MTBF)	59524 h
Power consumption (typical)	40 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
DHCP features	DHCP client
Switch type	Managed
Stackable	No

Weight and Dimensions

Weight	3200 g
