GS716T and GS724T Gigabit Smart Switches
c. Specify the value, in centiseconds, of the MRP Join Timer. The range is 10 to 100
centiseconds, and the default value is 20.
d. Specify the value, in centiseconds, of the MRP Leave Timer. The range is 10 to 600
centiseconds, and the default value is 120.
e. Specify the value, in centiseconds, of the MRP LeaveAll Timer. The range is 200 to
6000 centiseconds, and the default value is 2000.
ClassA/ClassB Boundary Port fields are not configurable and show whether the interface
is a boundary port.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
4. If you make any changes to the page, click Apply to apply the change to the system.

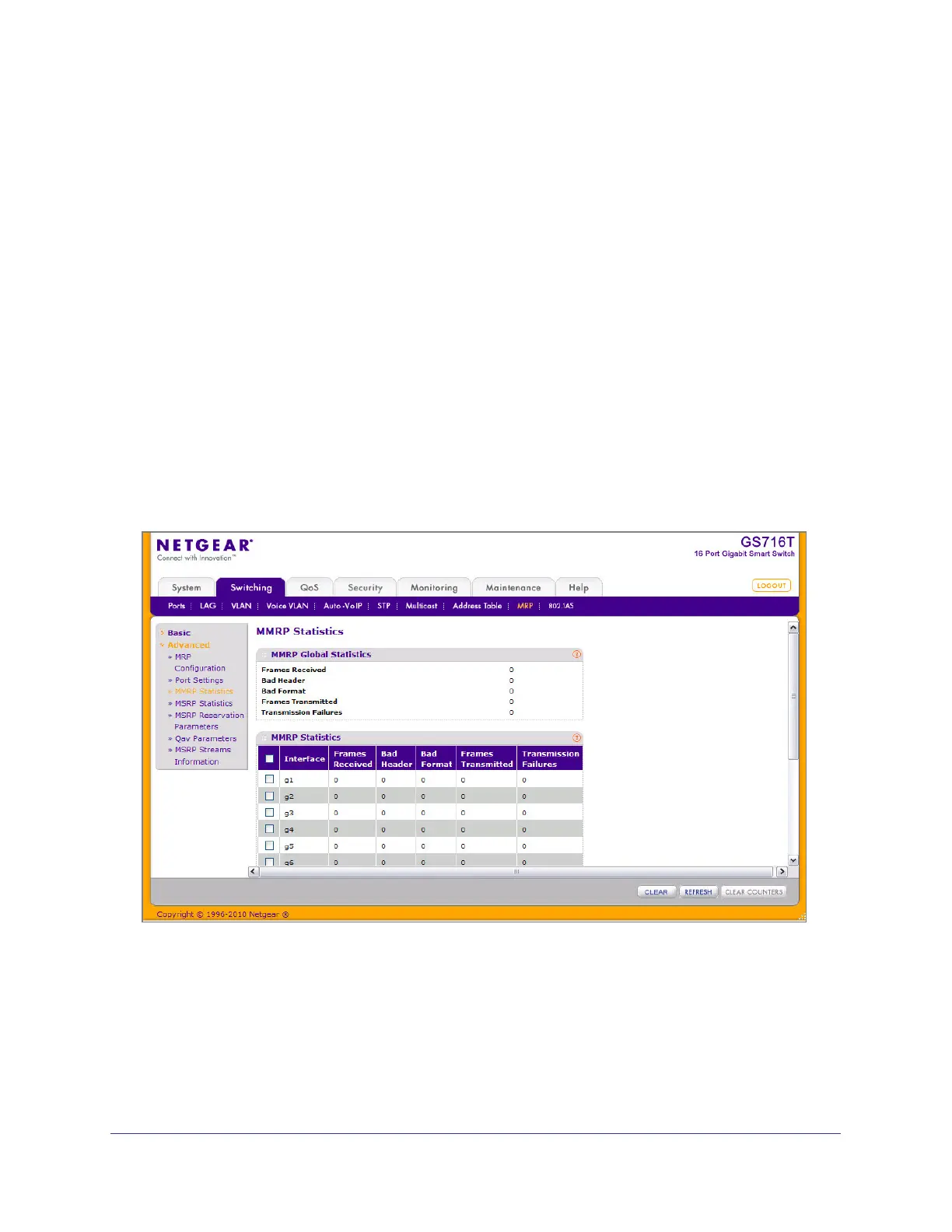

MMRP Statistics
The MMRP Statistics page displays information regarding the MMRP frames transmitted and
received by the switch and by each interface. To access the MMRP Statistics page click the
Switching tab, then click MRP > Advanced > MMRP Statistics.
The following table describes the fields on the MMRP Statistics page.

NETGEAR GS724T Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	0.5 MB
Maximum data transfer rate	1 Gbit/s
Dimensions (WxDxH)	43 x 440 x 260 mm
Connectivity technology	Wired
Non-operating relative humidity (non-condensing)	0 - 95 %
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Mean time between failures (MTBF)	59524 h
Power consumption (typical)	40 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
DHCP features	DHCP client
Switch type	Managed
Stackable	No

Weight and Dimensions

Weight	3200 g
