Smart Switch Software User Manual GS748T
Configuring the Switch 4-15
v1.0, October 2007
• VLAN ID. Specifies the VLAN ID. This field is only applicable if 802.1Q VLAN mode is
used.

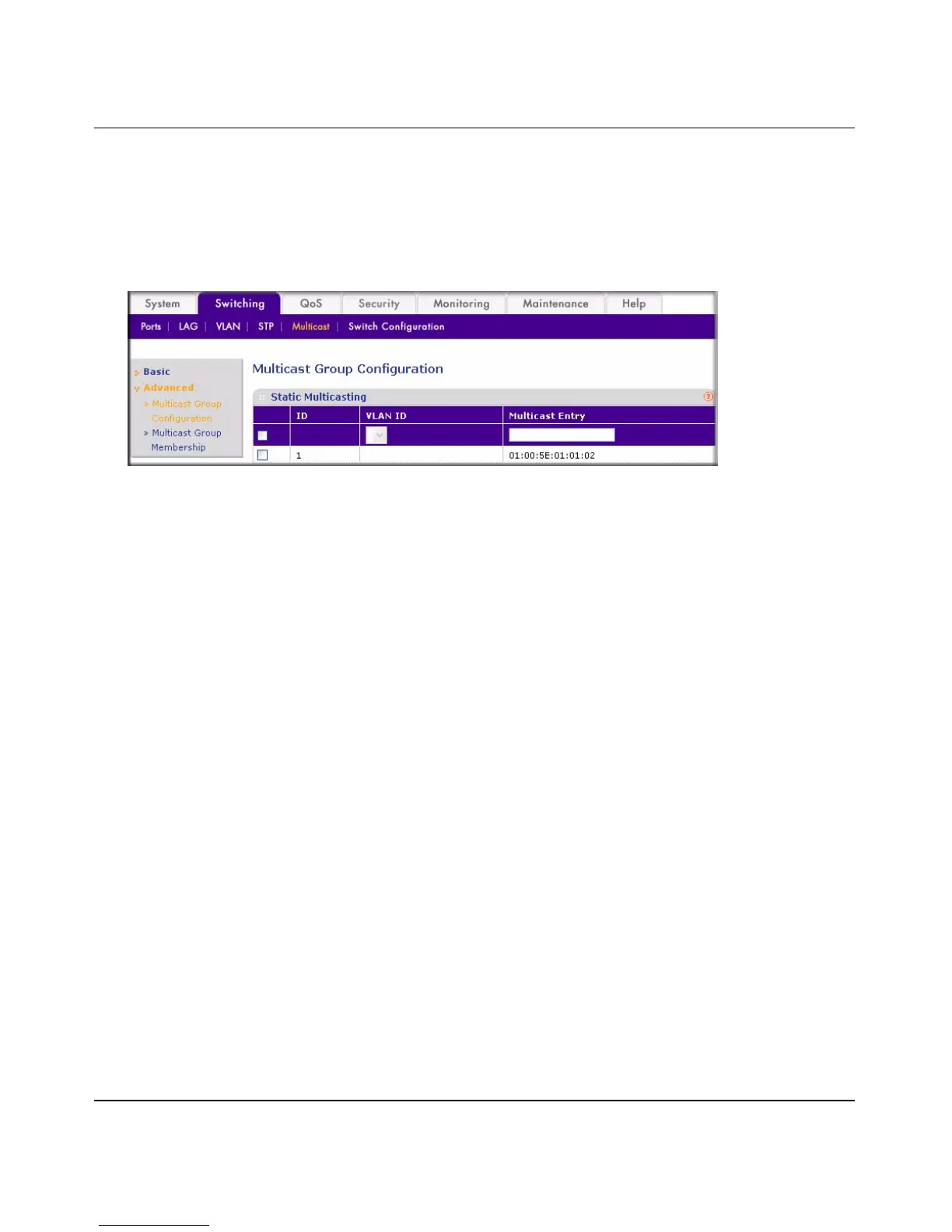

• Multicast Entry. Specifies the multicast group MAC address associated with the VLAN.
3. Click Add.
To delete a static multicast entry:
1. Select the checkbox adjacent to the multicast group you want to delete.
2. Click Delete.
Multicast Group Membership
The Multicast Group Membership table displays the ports associated with each multicast group.
To configure the multicast group membership:
1. Select Switching > Multicast > Advanced > Multicast Group Membership. The Multicast
Group Membership screen will display
2. From the ID pull-down menu, select a multicast group that you created in the Multicast Group
Configuration screen.
3. Click the Unit 1 link. All the available ports will display. Select the ports for the Multicast
Group (Select the Unit 1 checkbox to select all ports.)
4. Click Apply.
Figure 4-17
