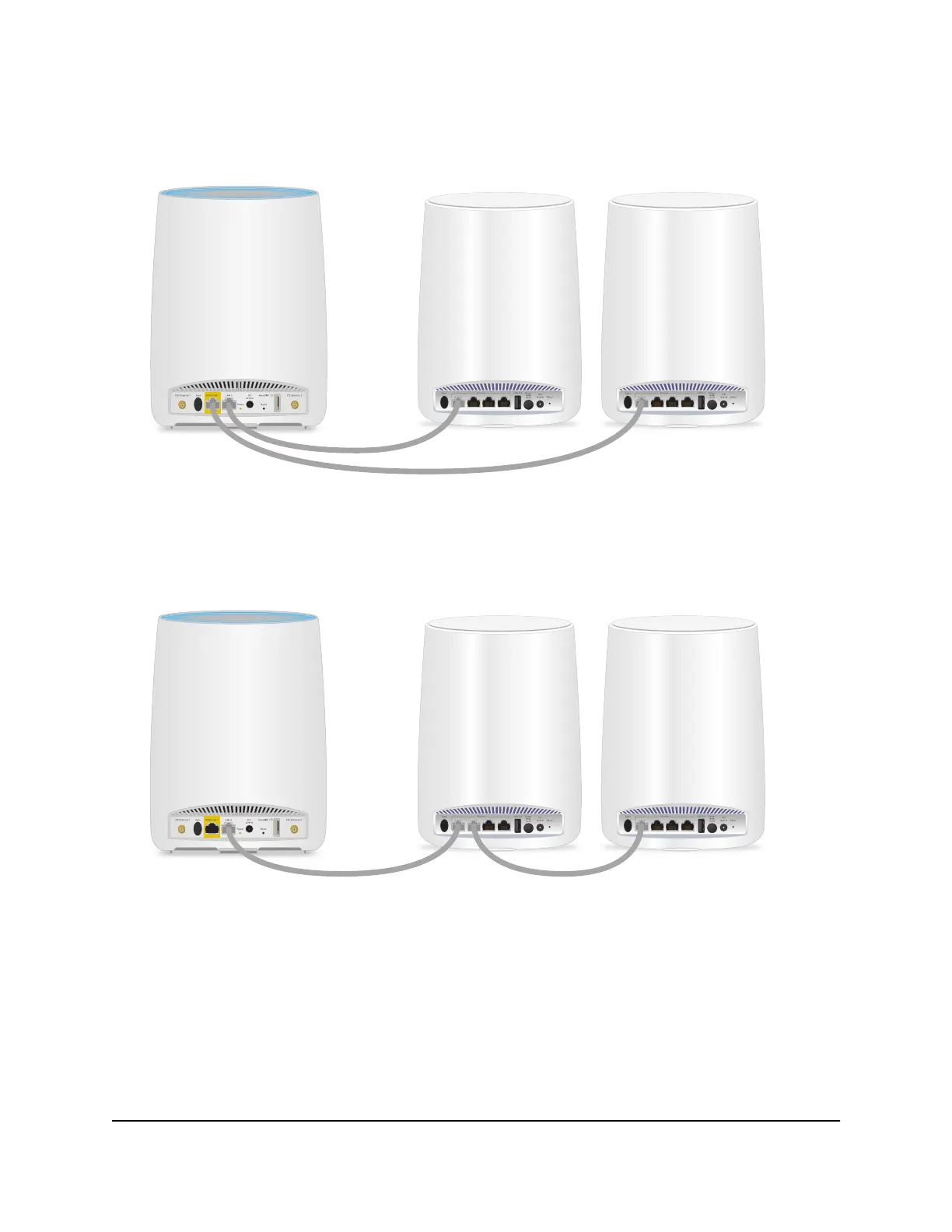

The following image shows how to connect your Orbi satellites to your Orbi router to
create an Ethernet backhaul connection.
Figure 2. Satellites connected to the router’s Ethernet ports
The following image shows another way to connect your Orbi satellites to your Orbi
router to create an Ethernet backhaul connection.
Figure 3. Satellite 1 connected to router and satellite 2 connected to satellite 1
The following image shows how to connect your Orbi satellites and your Orbi router to
an Ethernet switch.
Note: The Ethernet ports on the Orbi router and satellite are rated at 1 Gbps. Make
sure the switch ports are 1 Gbps or faster.
User Manual140Set Up and Manage an Optional
Orbi Satellite
4G LTE WiFi Orbi Router Model LBR20
