Attach the Antennas
The router comes with four antennas.
•
One antenna marked Ant 1 for antenna post marked Ant 1 on the right side panel.
•
Two antennas marked Ant 2 for the two antenna posts marked Ant 2 on the back
panel.
•
One antenna marked Ant 3 for the antenna post marked Ant 3 on the right side
panel.

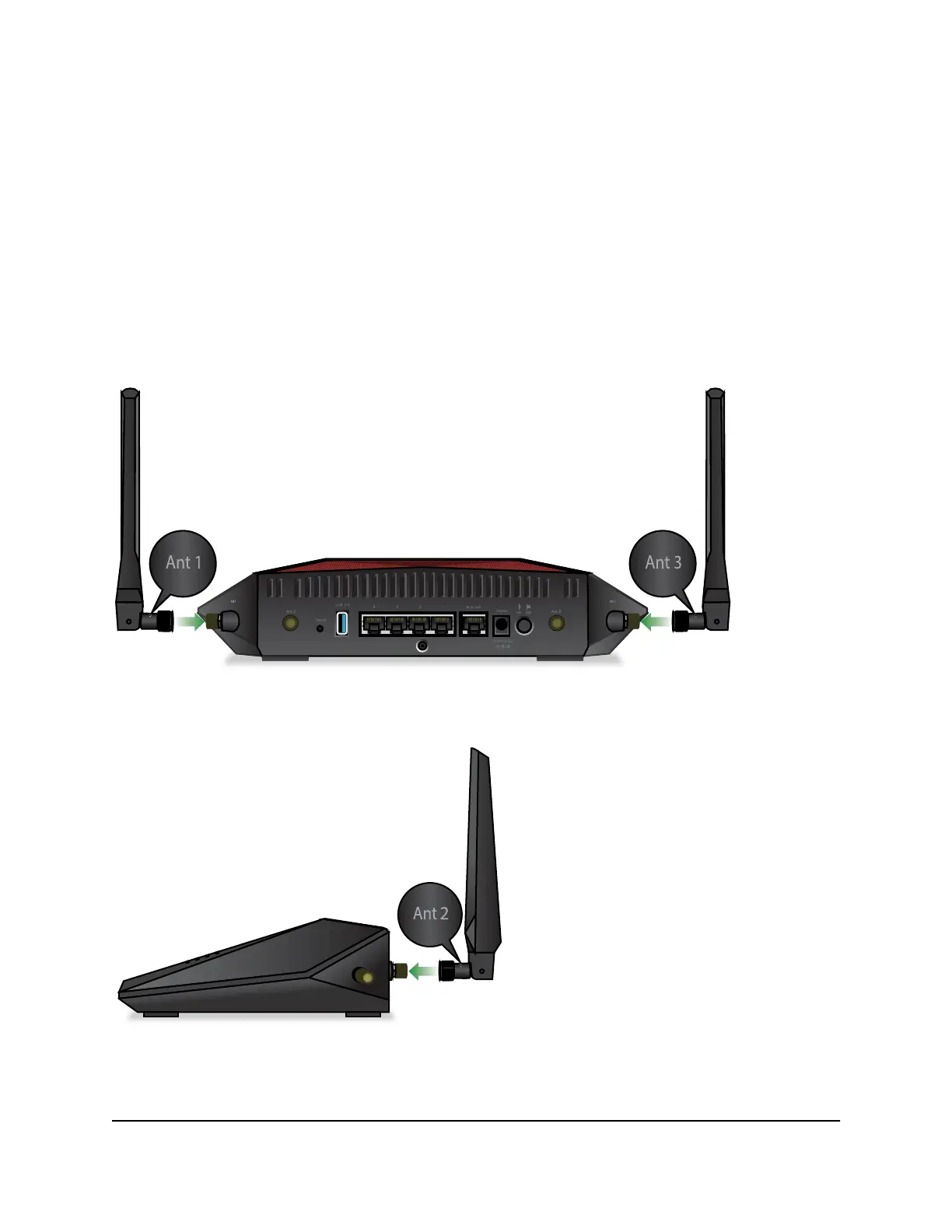

Figure 4. Ant 1 to post 1 and Ant 3 to post 3
Figure 5. Ant 2 to post 2 (the back panel provides two Ant 2 posts for two Ant 2 antennas)
