NETGEAR ProSafe GS108T User Manual

GS108T Hardware Installation Guide
2-2 Physical Description
v1.0, January 2010

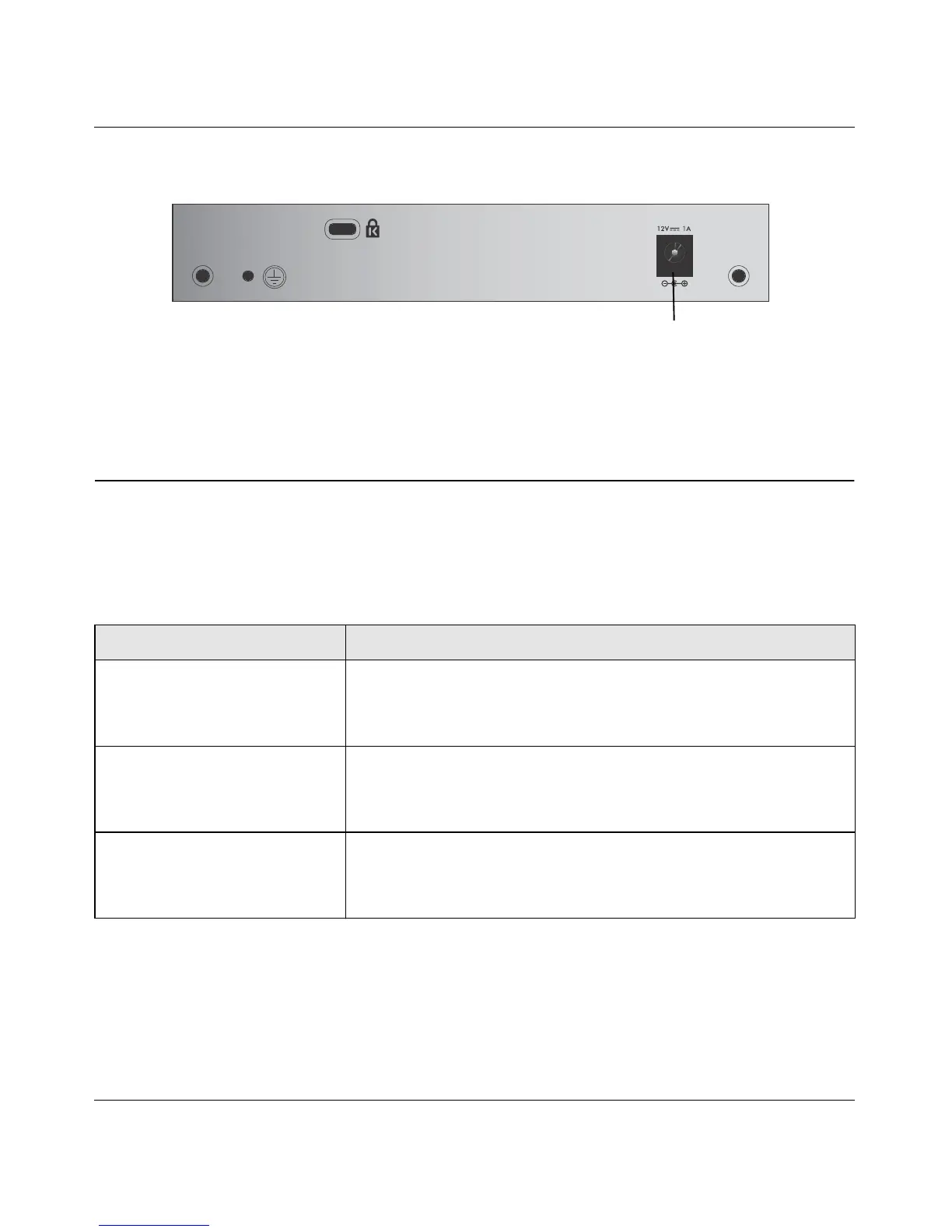

Figure 2-2 illustrates the NETGEAR GS108T Smart Switch back panel:
Power Connector
Figure 2-2
The back panel contains a DC input for the supplied 12V/1A external power adapter.
LED Designations
Port LEDs
The following table describes the port LED designations.
Table 2-1. Port LEDs
LED Designation
100 Mbps Link/ACT (Left LED) • Off - No 100 Mbps link is established on the port.
• Solid Green - A valid 100 Mbps link is established on the port.
• Flashing Green - Packet transmission or reception is occurring on
the port at 100 Mbps.
10 Mbps Link/ACT (Right LED) • Off - No 10 Mbps link is established on the port.
• Solid Green - A valid 10 Mbps link is established on the port.
• Flashing Green - Packet transmission or reception is occurring on
the port at 10 Mbps.
1000 Mbps Link/ACT (Both LEDs) • Off - No 1000 Mbps link is established on the port.
• Solid Green - A valid 1000 Mbps link is established on the port.
• Flashing Green - Packet transmission or reception is occurring on
the port at 1000 Mbps.

NETGEAR ProSafe GS108T Specifications

General

Switching Capacity	16 Gbps
VLAN Support	Yes
QoS	Yes
Model Number	GS108T
Managed	Yes
Forwarding Rate	11.9 Mpps
PoE	No
Management	Web-based
Jumbo Frame Support	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	90% maximum relative humidity, noncondensing
Ports	8 x Gigabit Ethernet
