Specify Network Settings
54
AC750 Wireless Dual Band Gigabit Router R6050

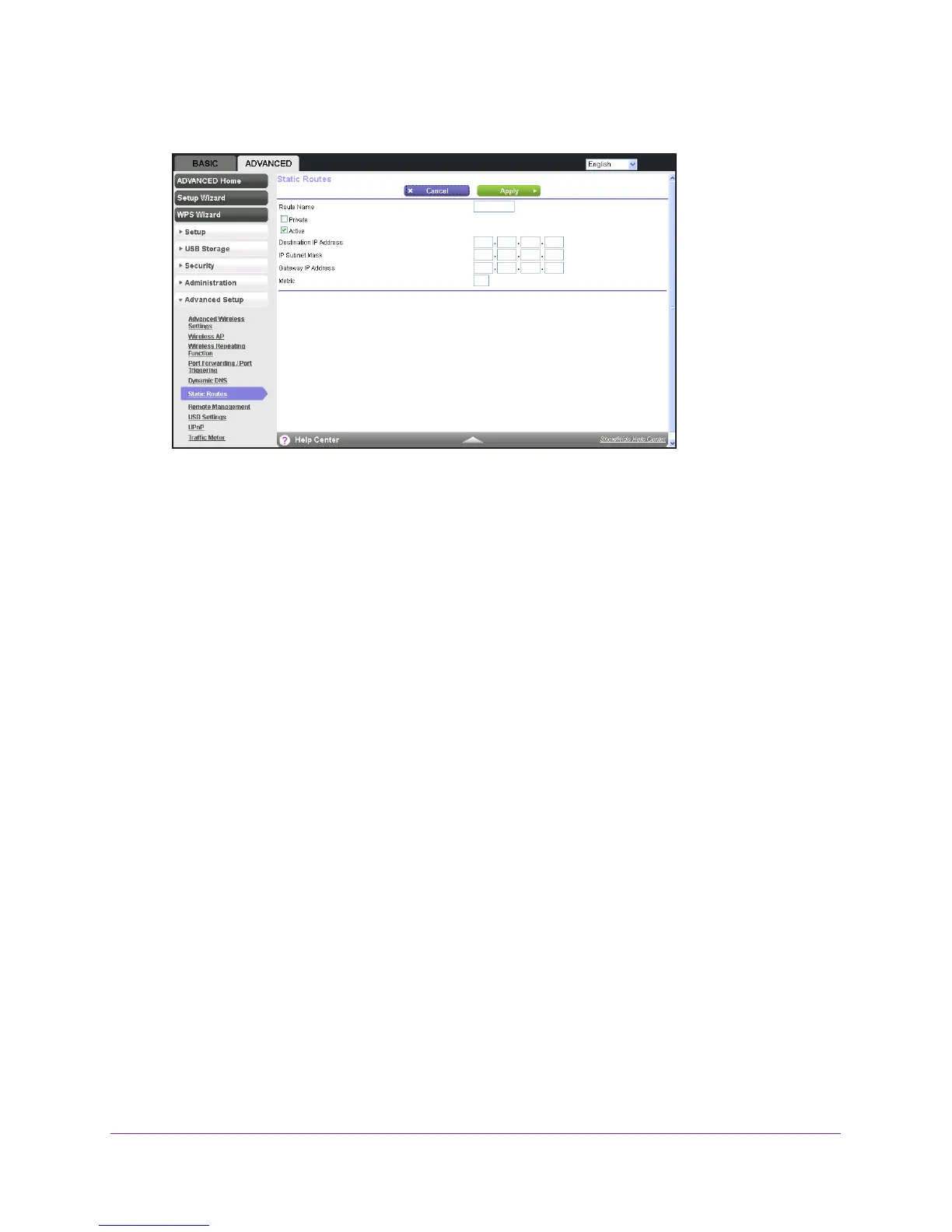

The screen adjusts:
6. In the Route Name field, type a name for this static route (for identification purposes only).
7. If you want to limit access to the LAN only
, select the Private check box.
If you select Private, the static route is not reported in RIP.
8. T
o make this route effective, select the Active check box.
By default, the Active check box is selected.
9. T
ype the IP address of the final destination.
10. T
ype the IP subnet mask for this destination. If the destination is a single host, type
255.255.255.255.
11. T
ype the gateway IP address, which must be a router on the same LAN segment as this
router.
12. T
ype a number from 1 through 15 as the metric value.
This value represents the number of routers between your network and the destination.
Usually
, a setting of 2 or 3 works, but if this link is a direct connection, set it to 1.
13. Click the Apply button.
The route is added to the table on the Static Routes screen.
Edit a Static Route
To edit a static route:
1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://www
.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
To Next Page
