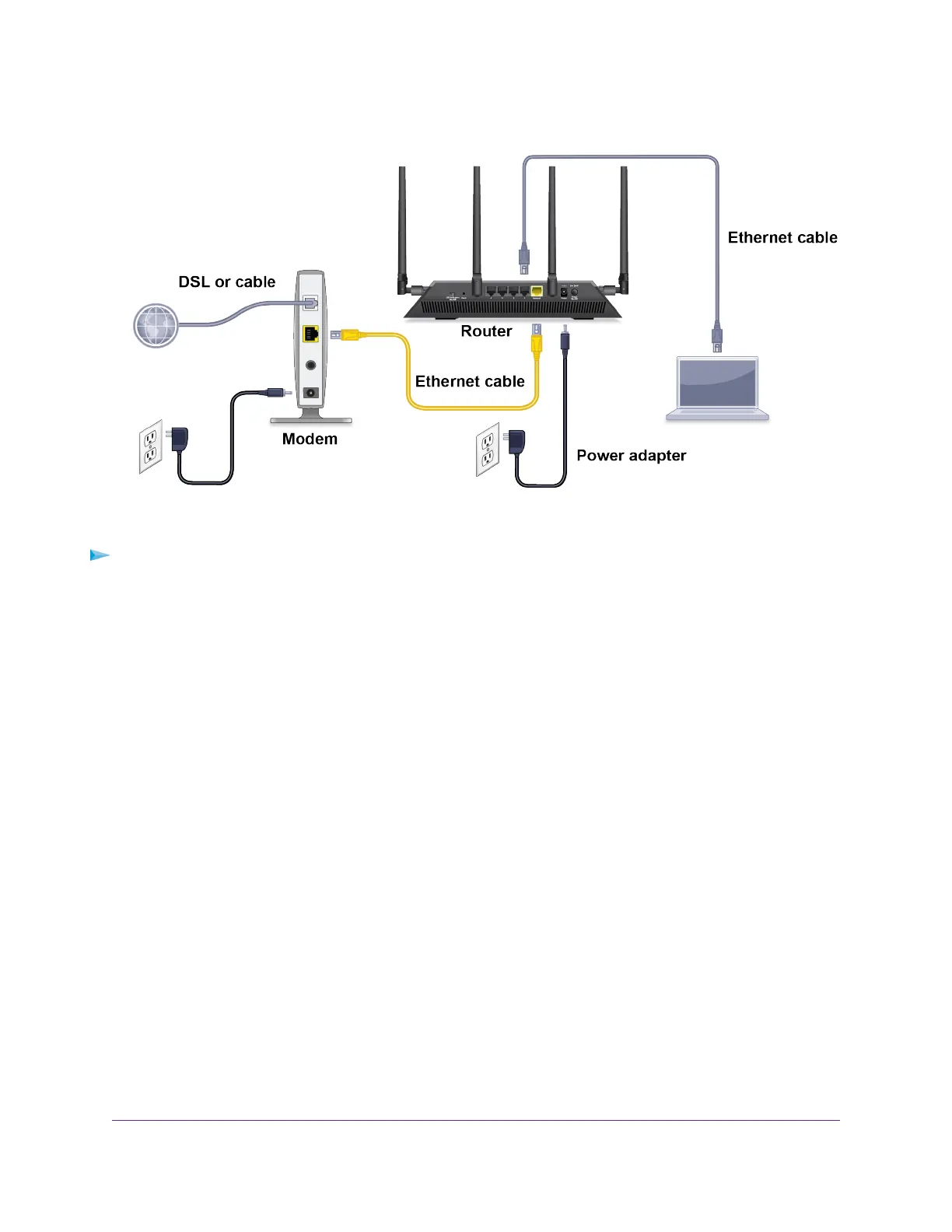

Figure 6. Router cabling
To cable your router:
1. Unplug your modem’s power, leaving the modem connected to the wall jack for your Internet service.
If your modem uses a battery backup, remove the battery.
2. Plug in and turn on your modem.
If your modem uses a battery backup, put the battery back in.
3. Connect your modem to the Internet port of your router with the yellow Ethernet cable that came with
your router.
4. Connect the power adapter to your router and plug the power adapter into an outlet.
5. Slide the LED On/Off switch on the rear panel to the On position.
6. Press the Power On/Off button on the rear panel of the router.
Hardware Setup
