NETGEAR RangeMax WPN824 User Manual

Reference Manual for the RangeMax Wireless Router WPN824
Network, Routing, Firewall, and Basics B-13
202-10072-01, March 2005
Inside Twisted Pair Cables
For two devices to communicate, the transmitter of each device must be connected to the receiver
of the other device. The crossover function is usually implemented internally as part of the
circuitry in the device. Computers and workstation adapter cards are usually media-dependent
interface ports, called MDI or uplink ports. Most repeaters and switch ports are configured as
media-dependent interfaces with built-in crossover ports, called MDI-X or normal ports. Auto
Uplink technology automatically senses which connection, MDI or MDI-X, is needed and makes
the right connection.

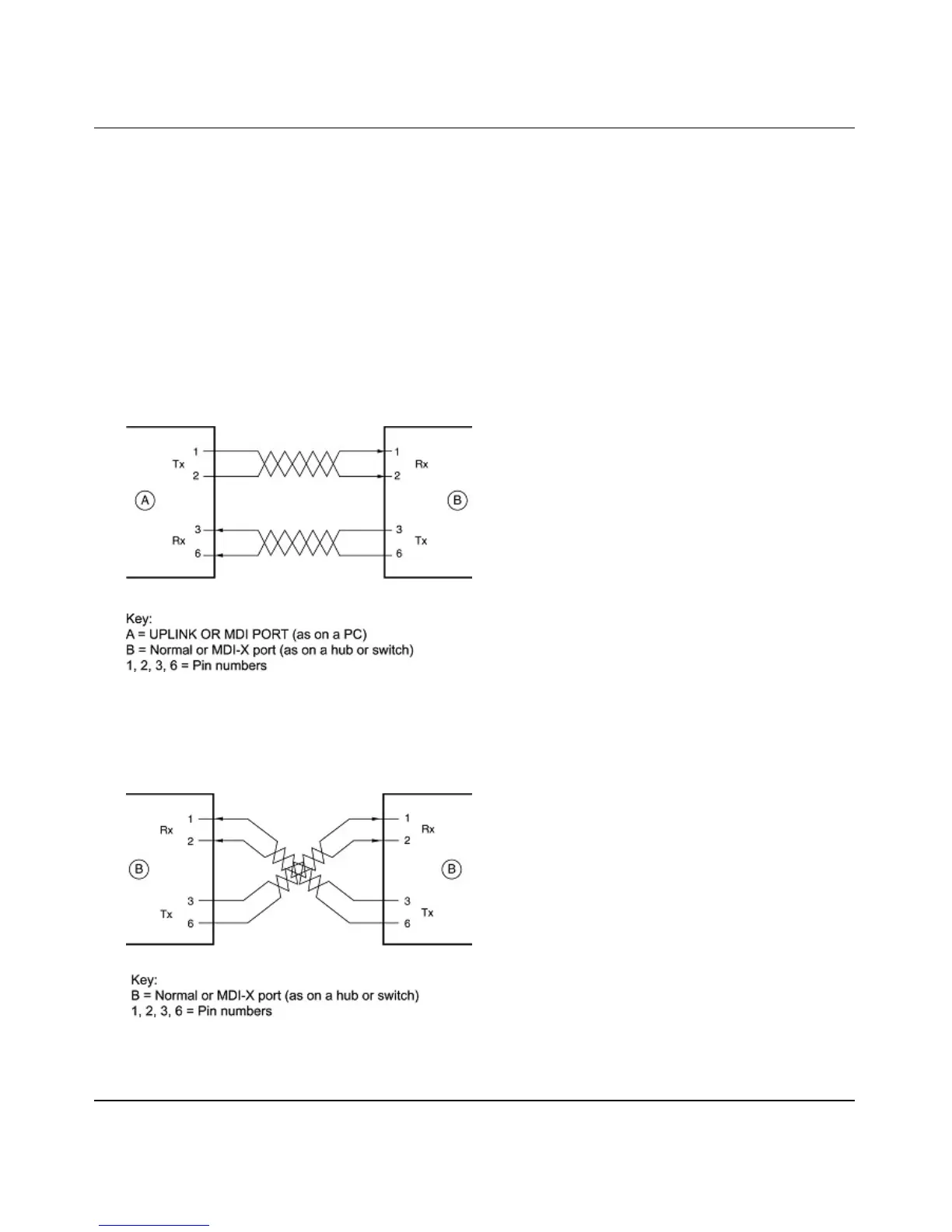

Figure B-4 illustrates straight-through twisted pair cable.
Figure B-4: Straight-Through Twisted-Pair Cable
Figure B-5 illustrates crossover twisted pair cable.
Figure B-5: Crossover Twisted-Pair Cable

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
