Reference Manual for the RangeMax Wireless Router WPN824
Advanced Configuration of the Router 8-13
202-10072-01, March 2005
Setting the MTU Size
The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is 1500 Bytes,
1492 Bytes for PPPoE connections, or 1436 for PPTP connections. For some ISPs you may need to
reduce the MTU. But this is rarely required, and should not be done unless you are sure it is
necessary for your ISP connection.
Any packets sent through the router that are larger than the configured MTU size will be
repackaged into smaller packets to meet the MTU requirement. To change the MTU size:
1. Under MTU Size, enter a new size between 64 and 1500.
2. Click Apply to save the new configuration.
Using the LAN IP Setup Options
Another feature category under the Advanced heading is LAN IP Setup. This menu allows
configuration of LAN IP services such as DHCP and RIP. From the Main Menu of the browser
interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

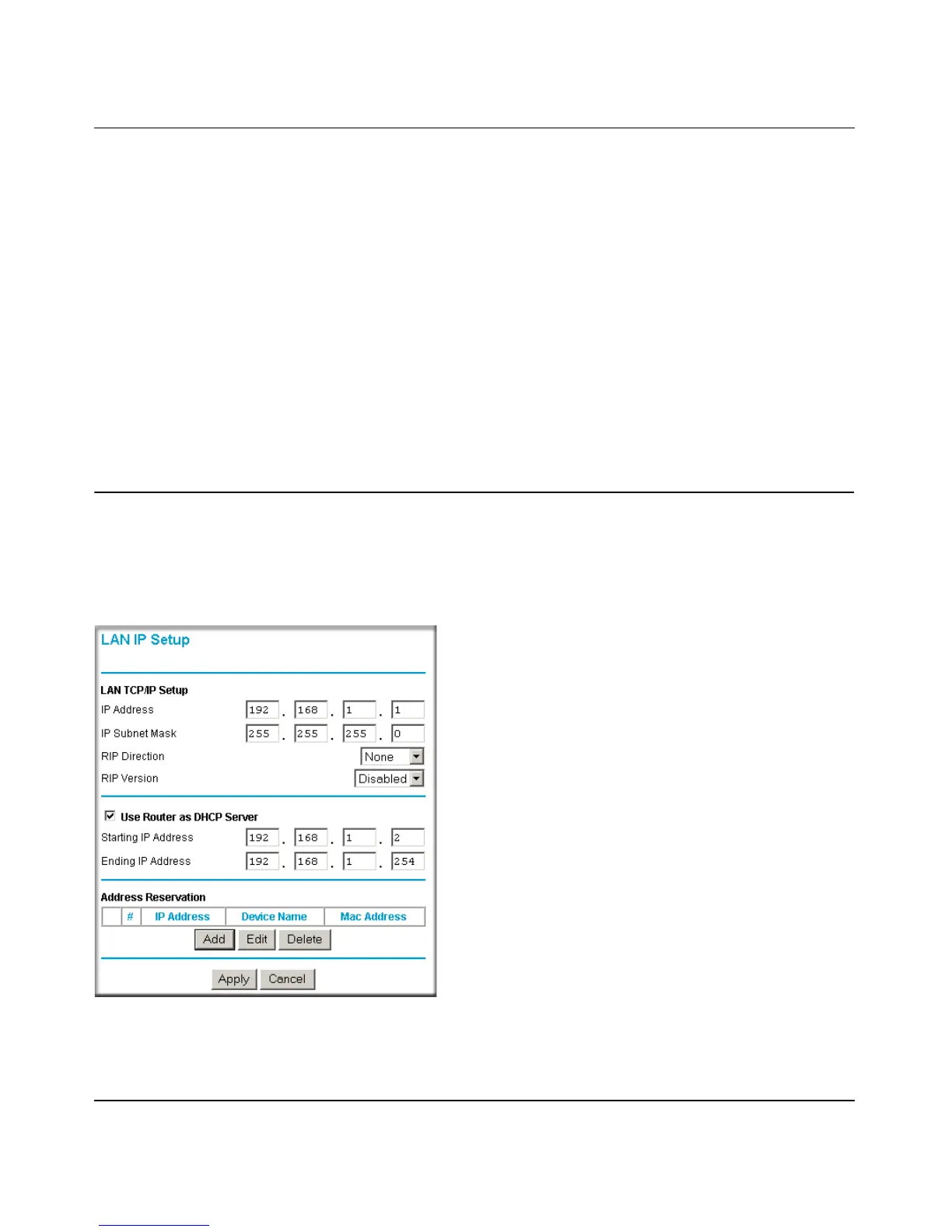

Figure 8-9: LAN IP Setup Menu

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
