NETGEAR RangeMax WPN824 User Manual

Reference Manual for the RangeMax Wireless Router WPN824
Introduction 2-7
202-10072-01, March 2005
You can use the status lights to verify connections. Viewed from left to right, the table below
describes the lights on the front panel of the router.
The Router’s Rear Panel
The rear panel of the WPN824 router contains the items listed below.

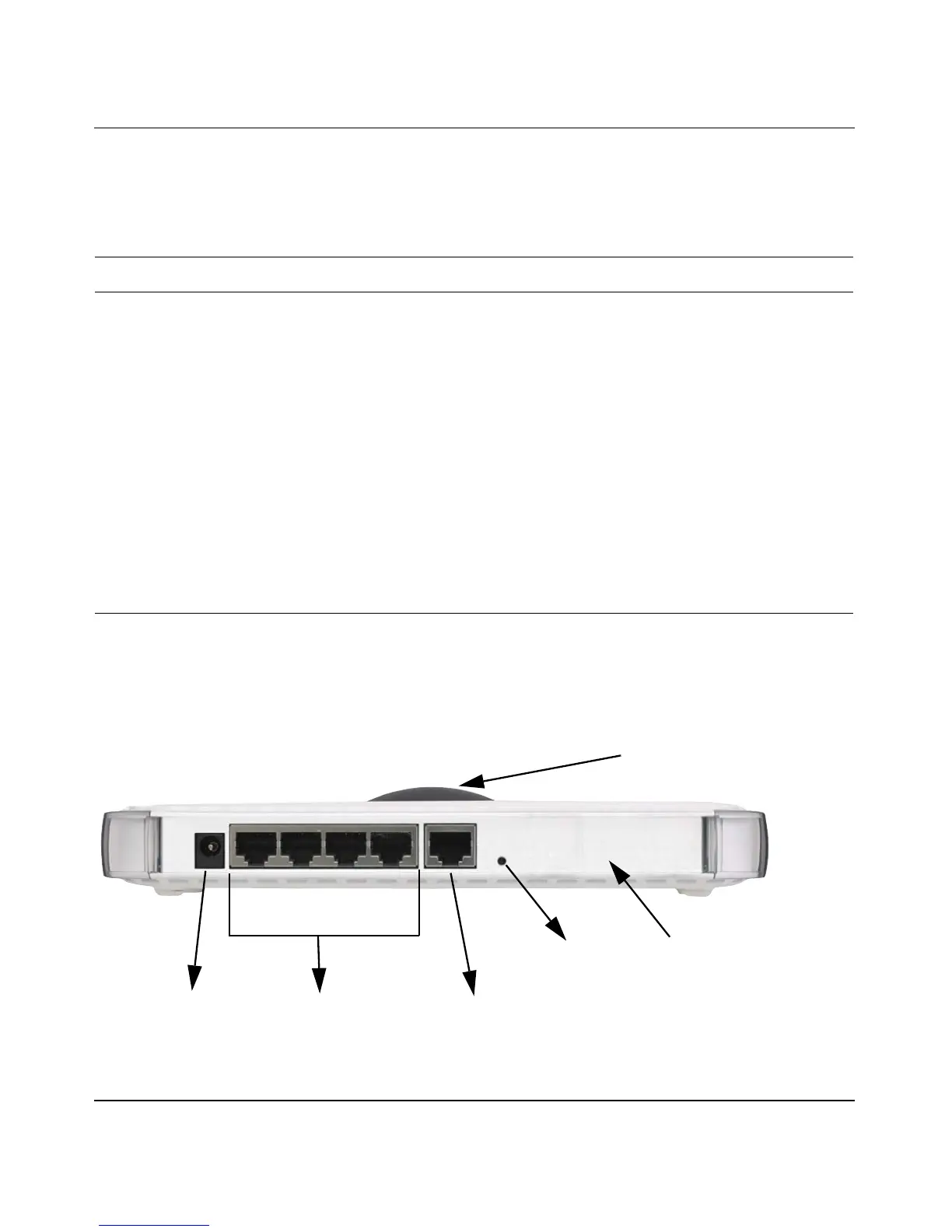

Figure 1-2: WPN824 Rear Panel
Table 2-1. Status Light Descriptions
Label Activity Description
Power On Green Solid
Off
Power is supplied and the router it has passed its diagnostic test.
Power is not supplied to the router.
Test On
Off
The unit is performing the power on self test diagnostic.
The unit successfully completed the power on self test diagnostic.
Wireless On
Off
The Wireless port is initialized and the wireless feature is enabled.
The wireless feature is turned off or there is a problem.
Internet On
Blink
The Internet port has detected a link with an attached device.
Data is being transmitted or received by the Internet port.
LAN On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The LAN (local area network) port has detected link with a 100 Mbps
device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
Power
4 LAN Ports
Internet Port
Reset
LEDs to show which
4
32
1
antenna is on
Button
Seven integrated
antennas inside

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
