NETGEAR RangeMax WPN824 User Manual

Reference Manual for the RangeMax Wireless Router WPN824
Preparing Your Network C-19
202-10072-01, March 2005
2. If not already selected, select Built-in Ethernet in the Configure list.
3. If not already selected, Select Using DHCP in the TCP/IP tab.
4. Click Save.

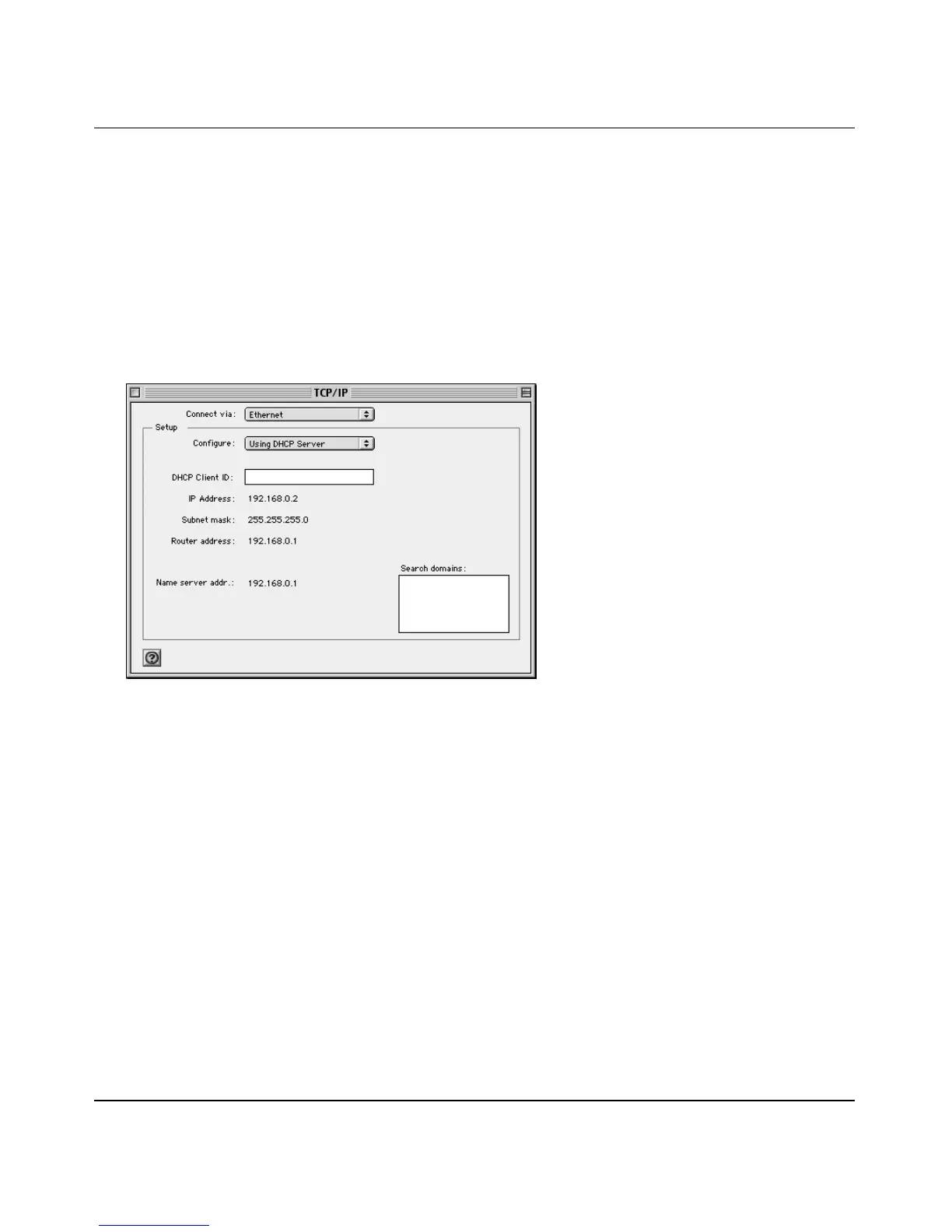

Verifying TCP/IP Properties for Macintosh Computers
After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by
returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.
The panel is updated to show your settings, which should match the values below if you are using
the default TCP/IP settings that NETGEAR recommends:
• The IP Address is between 192.168.1.2 and 192.168.1.254
• The Subnet mask is 255.255.255.0
• The Router address is 192.168.1.1
If you do not see these values, you may need to restart your Macintosh or you may need to switch
the “Configure” setting to a different option, then back again to “Using DHCP Server”.

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
