NETGEAR RangeMax WPN824 User Manual

Reference Manual for the RangeMax Wireless Router WPN824
3-6 Connecting the Router to the Internet
202-10072-01, March 2005
How to Log On to the Wireless Router After
Configuration Settings Have Been Applied
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of your
browser, then click Enter.

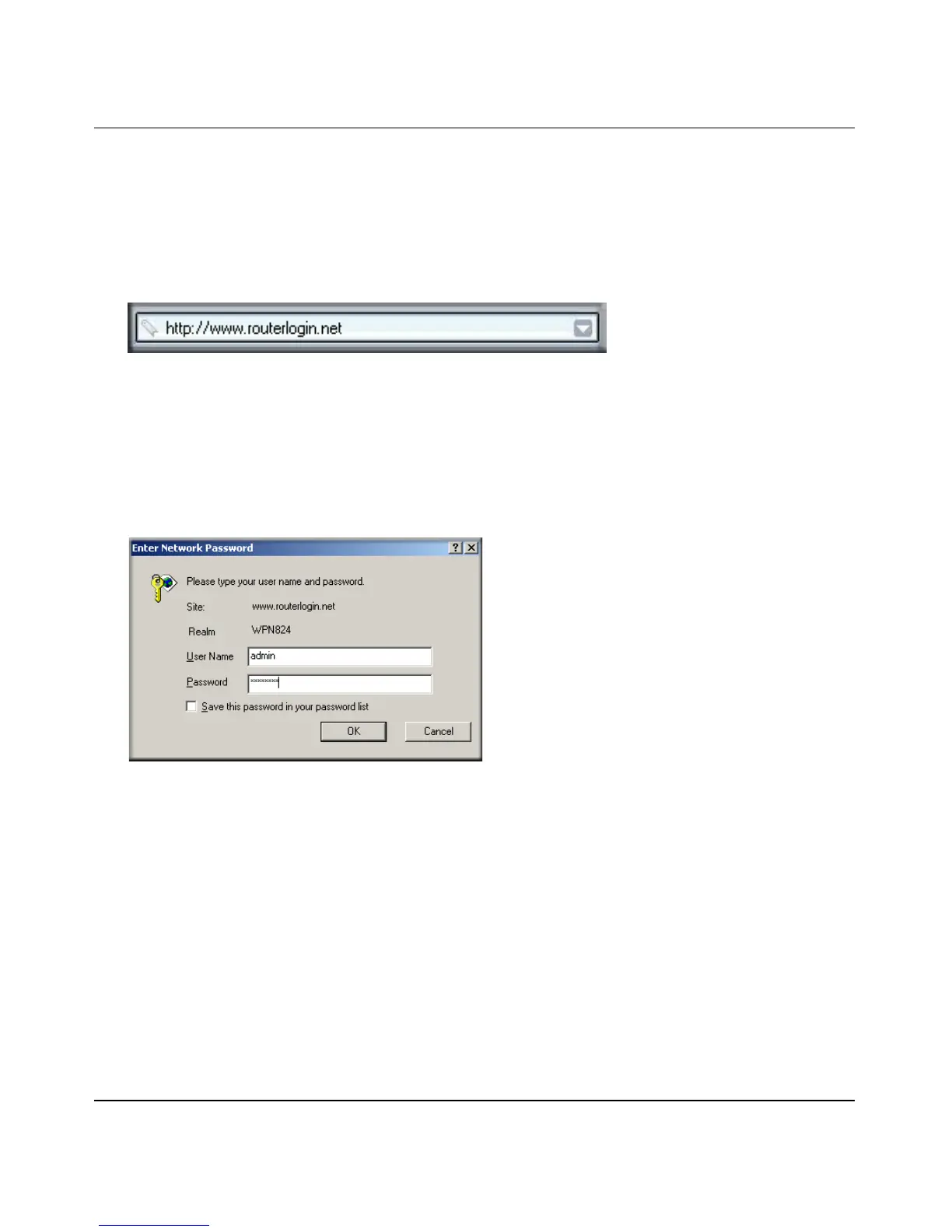

Figure 3-3: Login address
2.
For security reasons, the router has its own user name and password. When prompted, enter
admin for the router user name and password for the router password, both in lower case
letters. To change the password, see “Changing the Administrator Password” on page 6-9.
Note: The router user name and password are not the same as any user name or password you
may use to log in to your Internet connection.
Figure 3-4: Login window
Once you have entered your user name and password, your Web browser should find the
WPN824 router and display the home page as shown in below.

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
