NETGEAR RangeMax WPN824 User Manual

Reference Manual for the RangeMax Wireless Router WPN824
8-18 Advanced Configuration of the Router
202-10072-01, March 2005

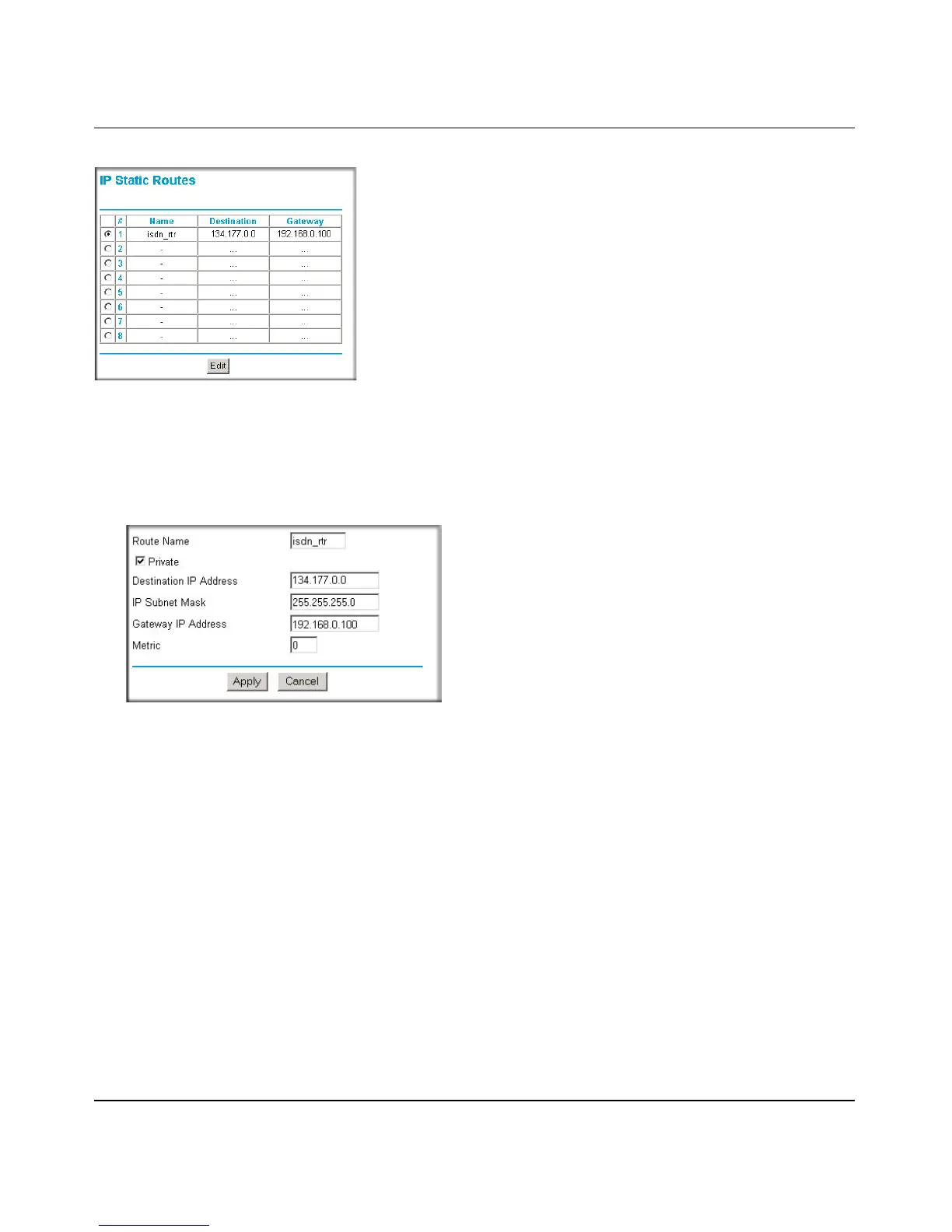

Figure 8-10: Static Route Summary Table
To add or edit a Static Route:
1. Click the Add button to open the Add/Edit Menu, shown below.
Figure 8-11. Static Route Entry and Edit Menu
2.
Type a route name for this static route in the Route Name box under the table.
(This is for identification purposes only.)
3. Select Private if you want to limit access to the LAN only. The static route will not be reported
in RIP.
4. Select Active to make this route effective.
5. Type the Destination IP Address of the final destination.
6. Type the IP Subnet Mask for this destination.
If the destination is a single host, type 255.255.255.255.
7. Type the Gateway IP Address, which must be a router on the same LAN segment as the router.

NETGEAR RangeMax WPN824 Specifications

General

Bandwidth	2.4 GHz
xDSL connection	Yes
Dimensions (WxDxH)	223 x 153 x 31 mm
Maximum data transfer rate	0.108 Gbit/s
Security algorithms	WPA-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
Ethernet LAN (RJ-45) ports	4

Weight and Dimensions

Weight	500 g
