5. Power LED
6. Reset button
7. DC Power connector
Orbi Pro WiFi 6 satellite model SXS80 hardware overview

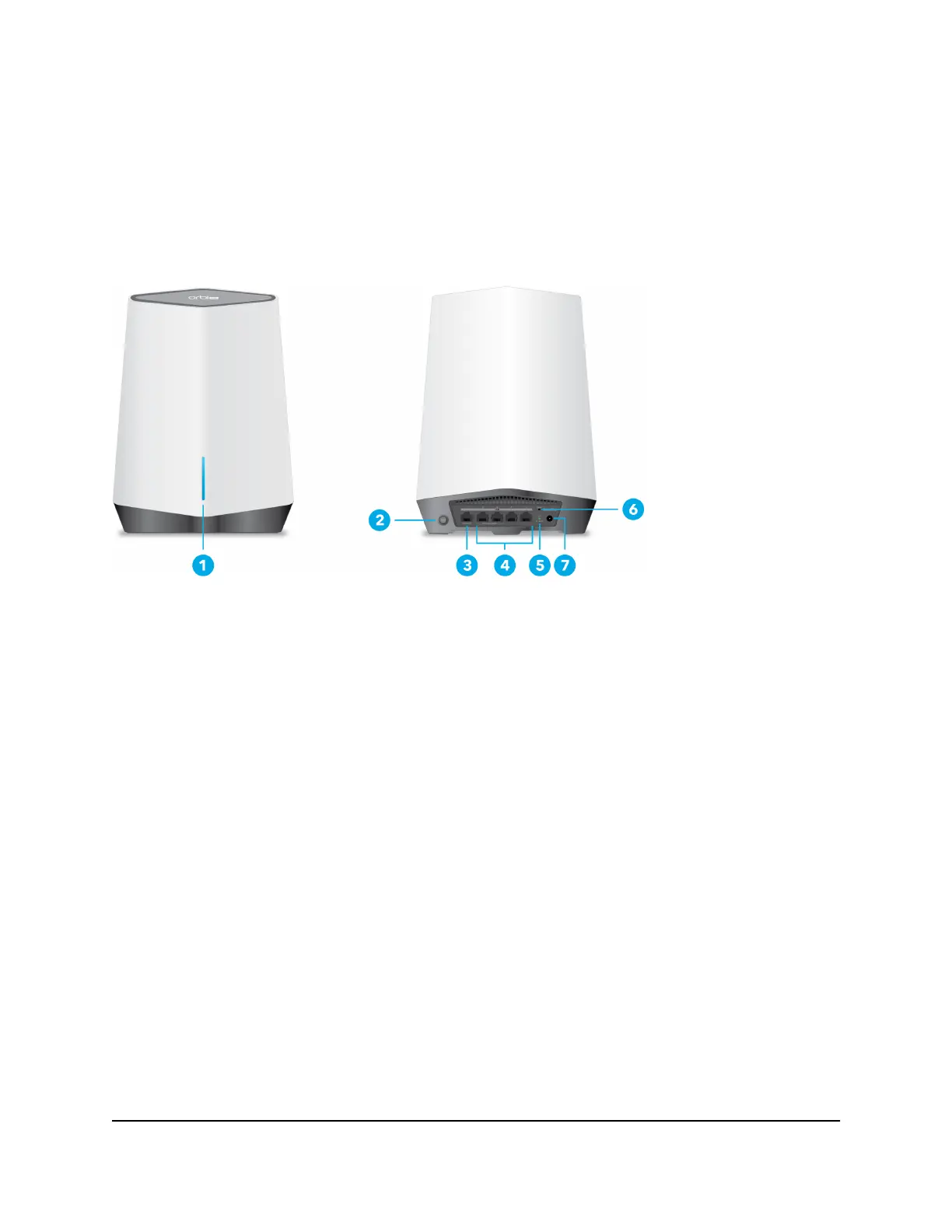

Figure 2. Orbi Pro WiFi 6 satellite model SXS80, front and back views
1. Bar LED
2. Sync button (also used for WPS connection)
3. 2.5G/1G LAN Ethernet port 1
4. LAN Ethernet ports 2–5 (LAN ports 2 and 3 support link aggregation)
5. Power LED
6. Reset button
7. DC Power connector
LED behavior
When you sync an Orbi Pro WiFi 6 satellite to the Orbi Pro WiFi 6 router, the LED behavior
for a satellite that comes in an Orbi Pro WiFi 6 system is different from the LED behavior
for add-on Orbi Pro WiFi 6 satellites.
User Manual10Overview
Orbi Pro WiFi 6 Router SXR80 and Orbi Pro WiFi 6 Satellite SXR80
