Hardware Setup
8
ProSAFE Dual-Band Wireless AC Access Point WAC720 WAC730

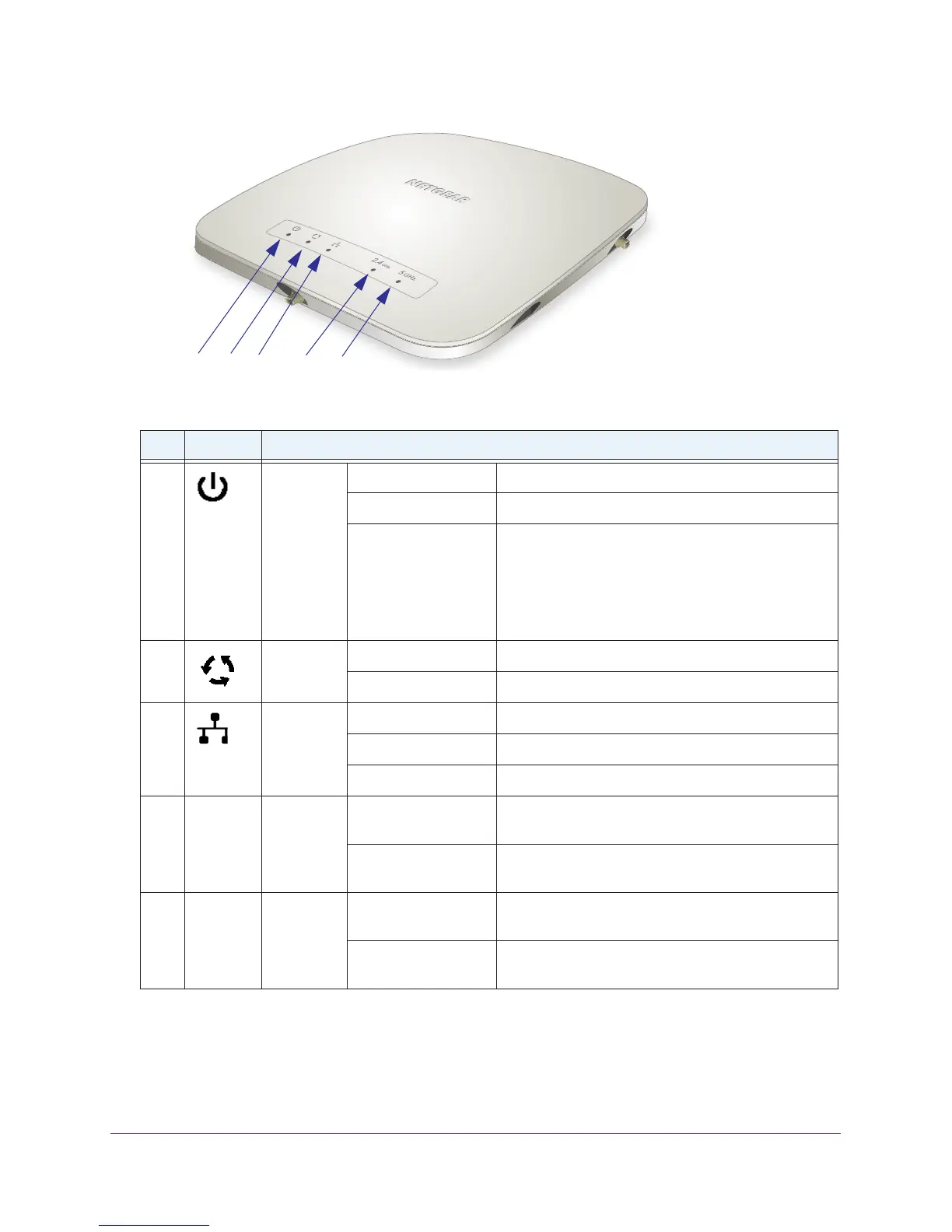

Figure 1. Top panel
Table 1. Top panel LEDs
Item LED Description
1
Power/Test Off Power is off.
On (green) Power is on.
Amber, then blinking
green
A self-test is running or software is being loaded.
During startup, the LED is first steady amber
, then
goes off, and then blinks green before turning steady
green after about 45 seconds. If after one minute the
LED remains amber or continues to blink green, it
indicates a system fault.
2
Active Off No Ethernet traffic is detected, or no link is detected.
On or blinking (green) Ethernet traffic is detected.
3
LAN Off A 10 Mbps or no link is detected on LAN port.
Amber A 100 Mbps link is detected on LAN port.
Green A 1000 Mbps link is detected on LAN port.
4 2.4
Ghz
WLAN Off The Wireless 802.11b/g/n (2.4 GHz) LAN is not ready,
or no wireless activity is detected.
On or blinking (green) The Wireless 802.11b/g/n (2.4 GHz) LAN is ready, or
wireless activity is detected.
5
5
Ghz
WLAN Off The Wireless 802.11n/a (5 GHz) LAN is not ready, or
no wireless activity is detected.
On or blinking (green) The Wireless 802.11n/a (5 GHz) LAN is ready, or
wireless activity is detected.
