Hardware Setup
9
ProSAFE Dual-Band Wireless AC Access Point WAC720 WAC730
Rear Panel
1
2
3
5
4

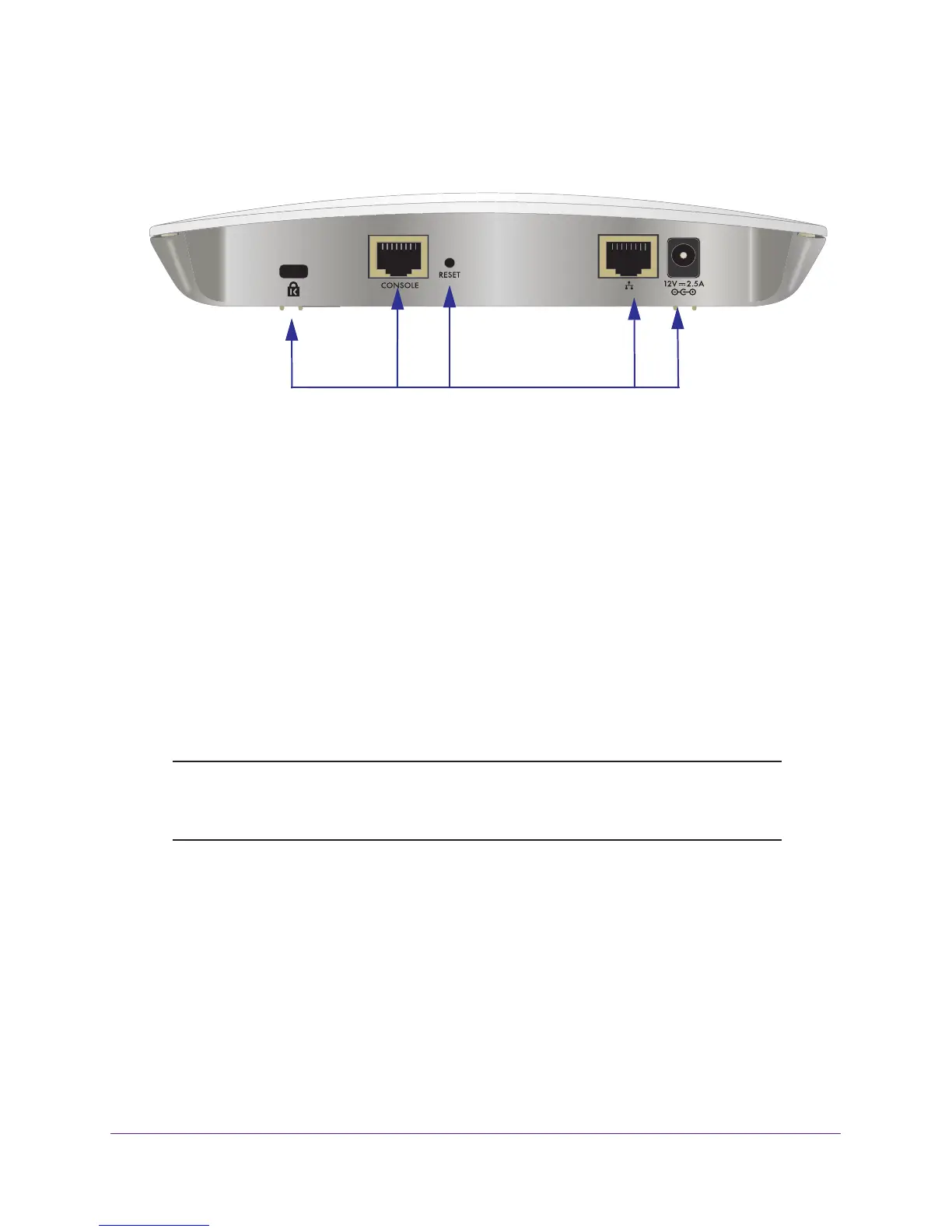

Figure 2. Read panel
The rear panel components of the wireless access point, from left to right, are described in
the following list:
1. Cable security lock receptacle for an optional lock.
2. Console port for connecting to an optional console terminal.
The port provides an RJ-45
connector and supports the following settings: 115200 K default baud rate, 8 data bits, no
(N) parity bit, and one (1) stop bit.
3. Factory default Reset button. Using a sharp object, press and hold this button for about
five seconds to reset the wireless access point to factory defaults settings. All configuration
settings are lost, and the default password is restored. For more information, see Restore
the Wireless Access Point to the Factory Default Settings on page 56.
4. 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with
Auto Uplink (Auto MDI-X) with
IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.
5. Power socket for an optional 12 VDC, 2.5A power adapter
.
Note: The WAC720 access point can support up to two optional
2.4GHz/5GHz dual band antennas. The WAC730 access point can
support up to three optional 2.4GHz/5GHz dual band antennas.
