Wireless PC card
in a notebook computer
Wireless PC card
in a notebook compute
Point-to-point
bridge mode
Point-to-point
bridge mode
Router
Hub or switch
Advanced Configuration
90
ProSAFE Dual-Band Wireless AC Access Point WAC720 WAC730

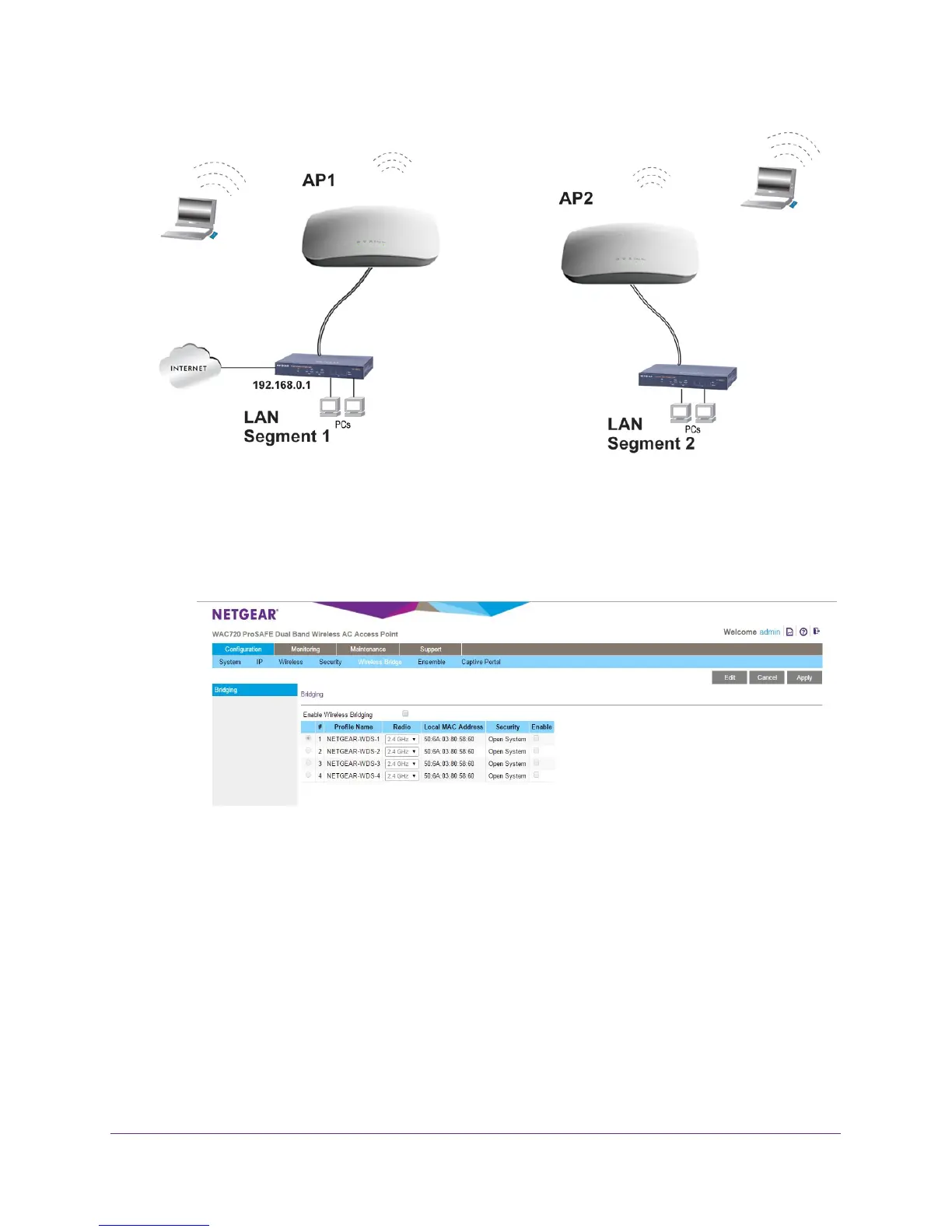

Figure 5.
To configure a point-to-point wireless network:
1. Configure the wireless access point (AP1 on LAN Segment 1 in the previous figure) as
a point-to-point bridge:
a. Select Configuration > W
ireless Bridge.
b. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
c. Select the W
ireless Point-to-Point Bridge radio button. The page adjusts.
d. If you want to enable wireless client association while the wireless access point
functions as a point-to-point bridge, select the Enable W
ireless Client Association
check box.
e. Click Edit to configure the security profile settings.
The Edit Security Profile page
displays:
