Note: If you can reach behind the T-bar, hold the T-bar with one hand and the access
point with your other hand.
3.

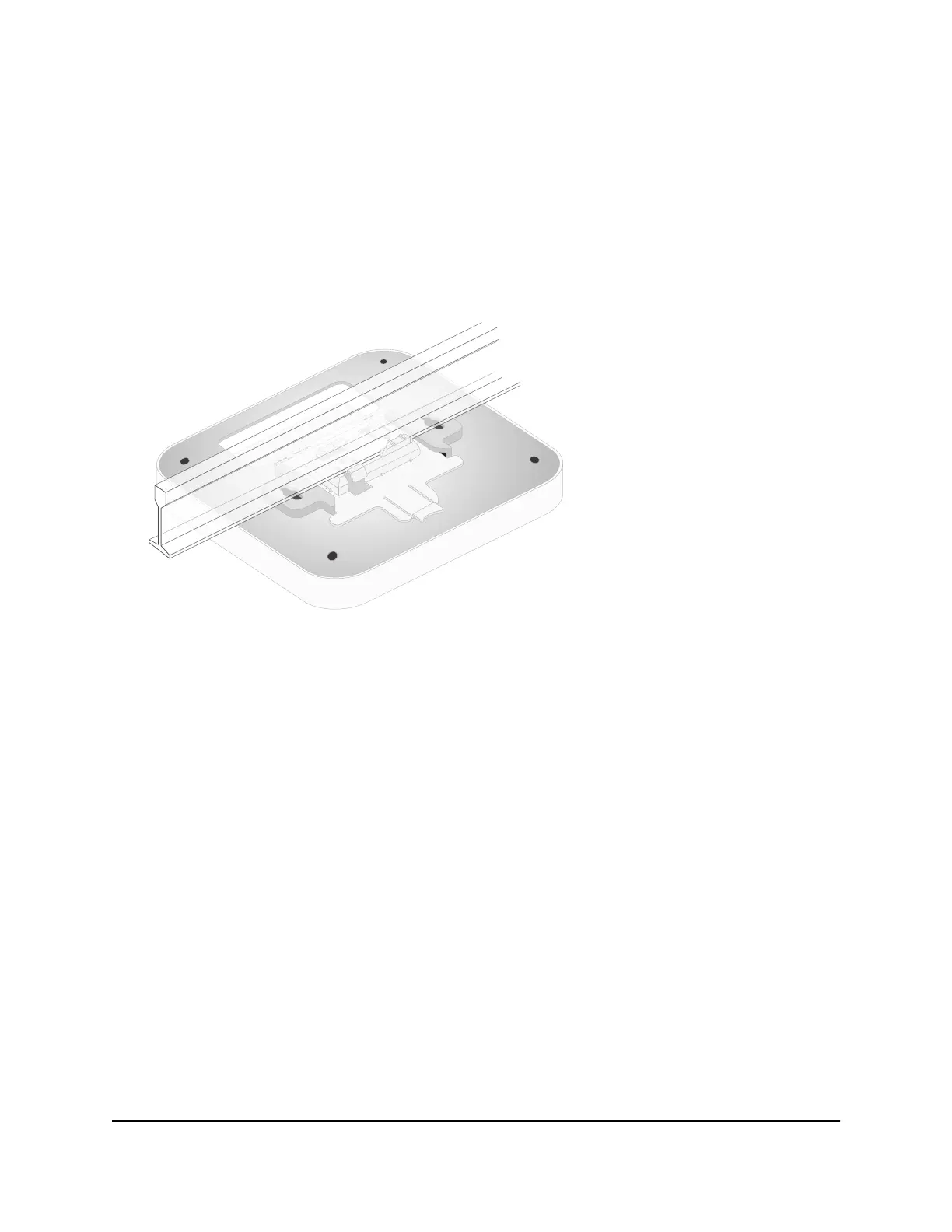

Align the rectangular protruding part of the bracket with the T-bar.
4.
Hook the bracket onto one side of the T-bar.
5.
Hook the bracket onto the other side of the T-bar until the bracket locks onto the
T-bar.
User Manual146Mount Model WAX214 to a Wall
or Ceiling
NETGEAR WiFi 6 AX1800/AX3600 Dual Band PoE/PoE+ Access Points, WAX214 and WAX218
