5.1.2.6 Advanced Level-2 access
Advanced Level-2 access is available to the user via a PC only by use of a password. This level of
access allows the manipulation of all code settings. Contact the Neutronics Inc. Service Department for
support before attempting to use Advanced Level-2 access.
5.1.2.7 SETTING UP THE MODEL 7100E – The RS-232 user setup menu
The RS-232 User Setup menu U00 is the “Home” screen in Advanced Level-1 access (see section
4.1.2.5), and provides access to all the parameters that may need to be adjusted by the user. The
interactive menu is initiated by typing “setup” and pressing the "Enter" key on the RS-232 terminal; as in
entering Advanced Level-1 access. To navigate backwards, use the <Esc> or “Q” key on the RS-232
terminal
5.1.2.8 Return all settings to factory delivered settings
In case of severe corruption of calibration and setting information, this setting will allow the user to restore
the Model 7100E analyzer to its “out-of-box” setting. The user may type “Y” at the prompt to initiate a
restore, or “N” and the prompt to bypass a restore. This setting is accessed from the Setup Main Menu
by typing “F” on the RS-232 Terminal. To navigate backwards, use the <Esc> or “Q” key on the RS-232
terminal.
5.1.2.9 System information display
The System Information Display U10 is a list of all the current settings for the Model 7100E analyzer. It is
accessed from the Setup Main Menu by typing “1” or “I” on the RS-232 Terminal.
5.1.2.10 (U20) Alarm relay setup menu

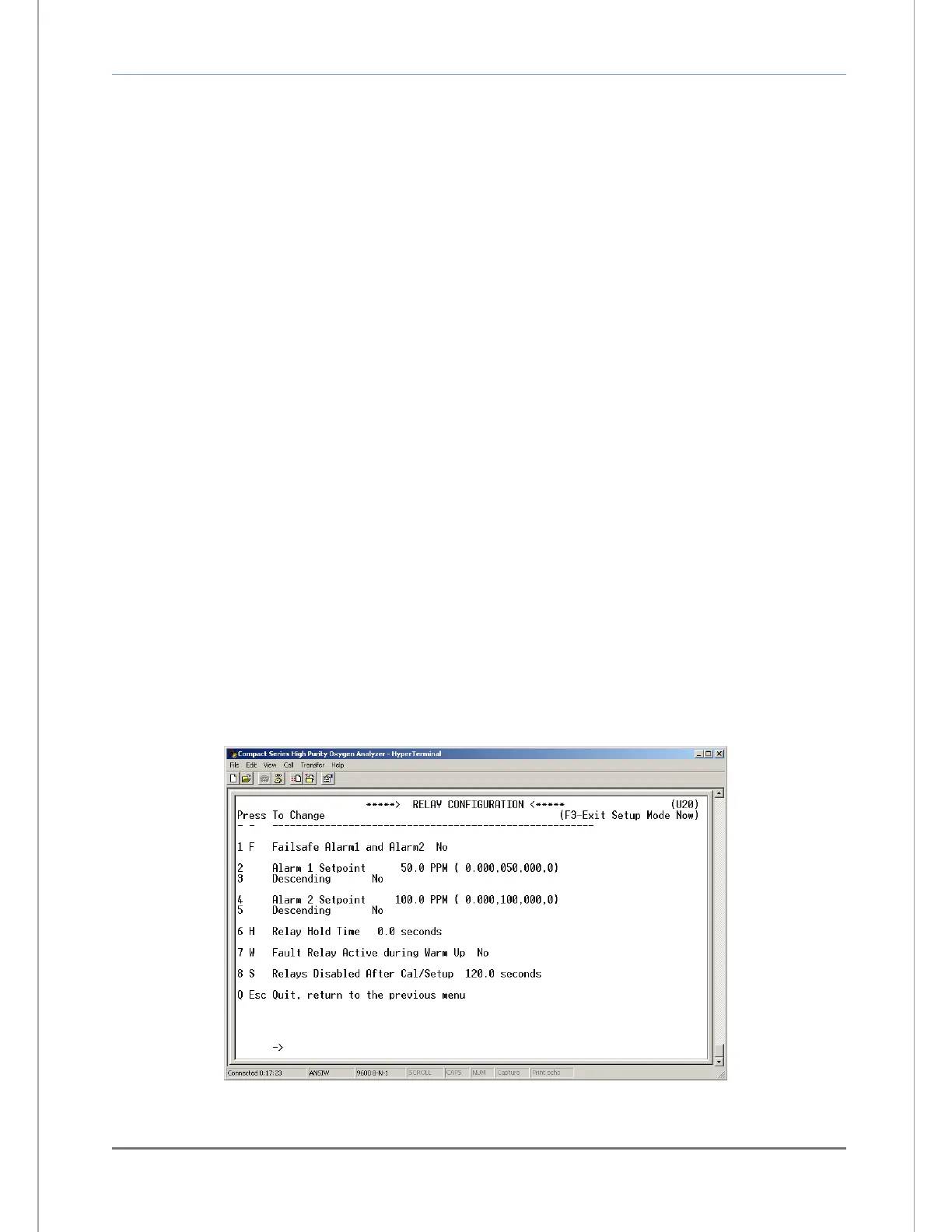

The RS-232 Alarm/Relay Setup menu U20 (Figure 23) provides access to all of the settings related to the
alarms, controls, and relays. It is accessed from the Setup Main Menu by typing “2” or “R” on the RS-232
Terminal. To navigate backwards, use the <Esc> or “Q” key on the RS-232 terminal.
