1.2 SYSTEM DESCRIPTION
The product described in this manual is a transformerless Uninterruptible Power System (UPS). It is a true online,
continuous duty, double conversion, solid state, three-phase system, providing conditioned and uninterruptible AC
power to protect the customer’s load from all nine power failures.

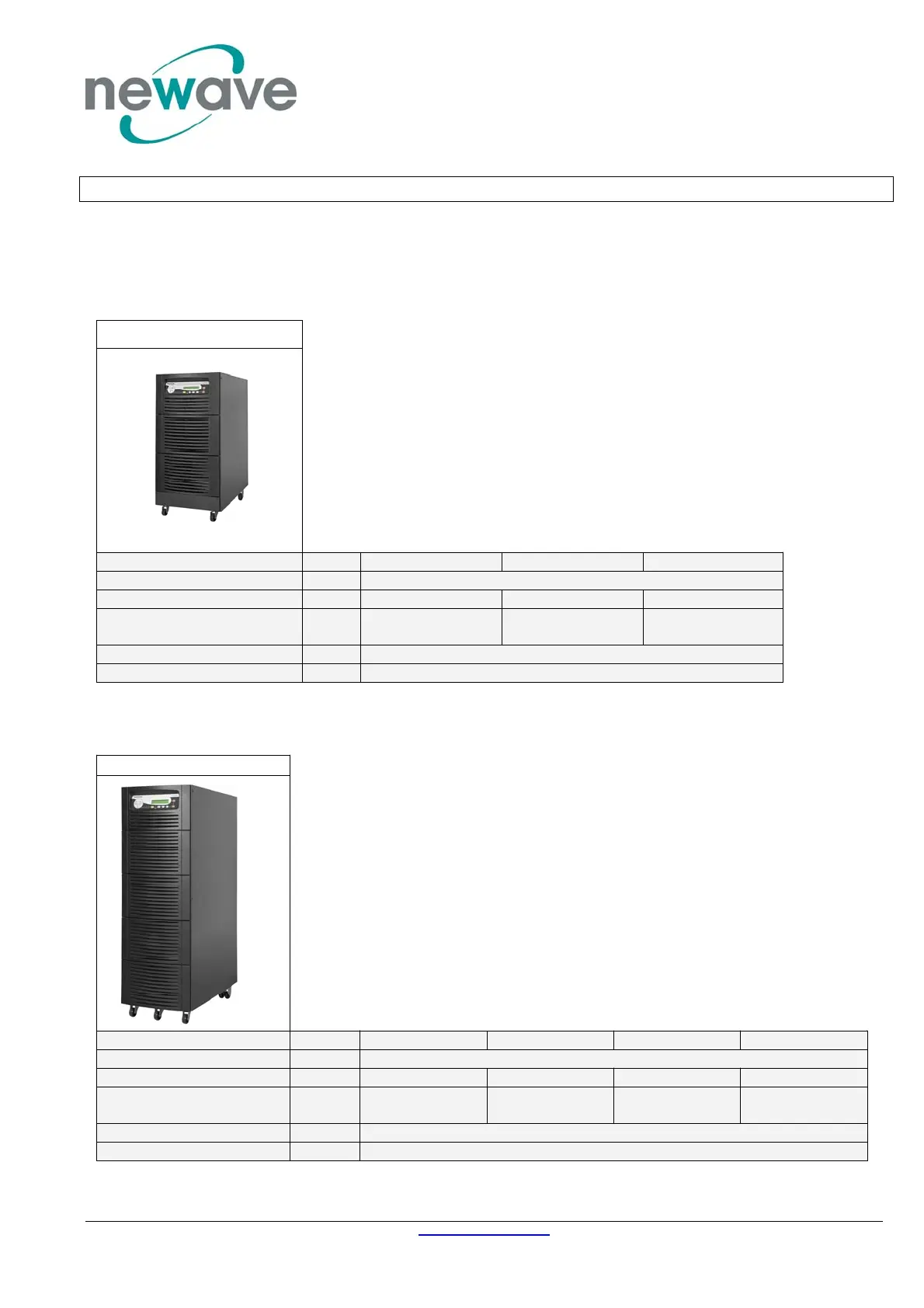

1.2.1 MECHANICAL CHARACTERISTICS POWERSCALE 10-20KVA CABINET A
PowerScale Cabinet A
Power range kVA 10 15 20
Dimensions (WxHxD) mm 345x720x710
Weight without battery kg 60 62 64
Weight with battery with 48
block of 7Ah
kg 180 182 184
with standard packaging kg + 4
Colour Graphite grey (RAL 7024)
1.2.2 MECHANICAL CHARACTERISTICS POWERSCALE 10-25KVA CABINET B
PowerScale Cabinet B
Max. Power connection kVA 10 15 20 25
Dimensions (WxHxD) mm 345x1045x710
Weight without battery kg 88 90 92 94
Weight with battery with
96 block of 7Ah
kg 328 330 332 334
with standard packaging kg + 5
Colour Graffito grey (RAL 7024)
