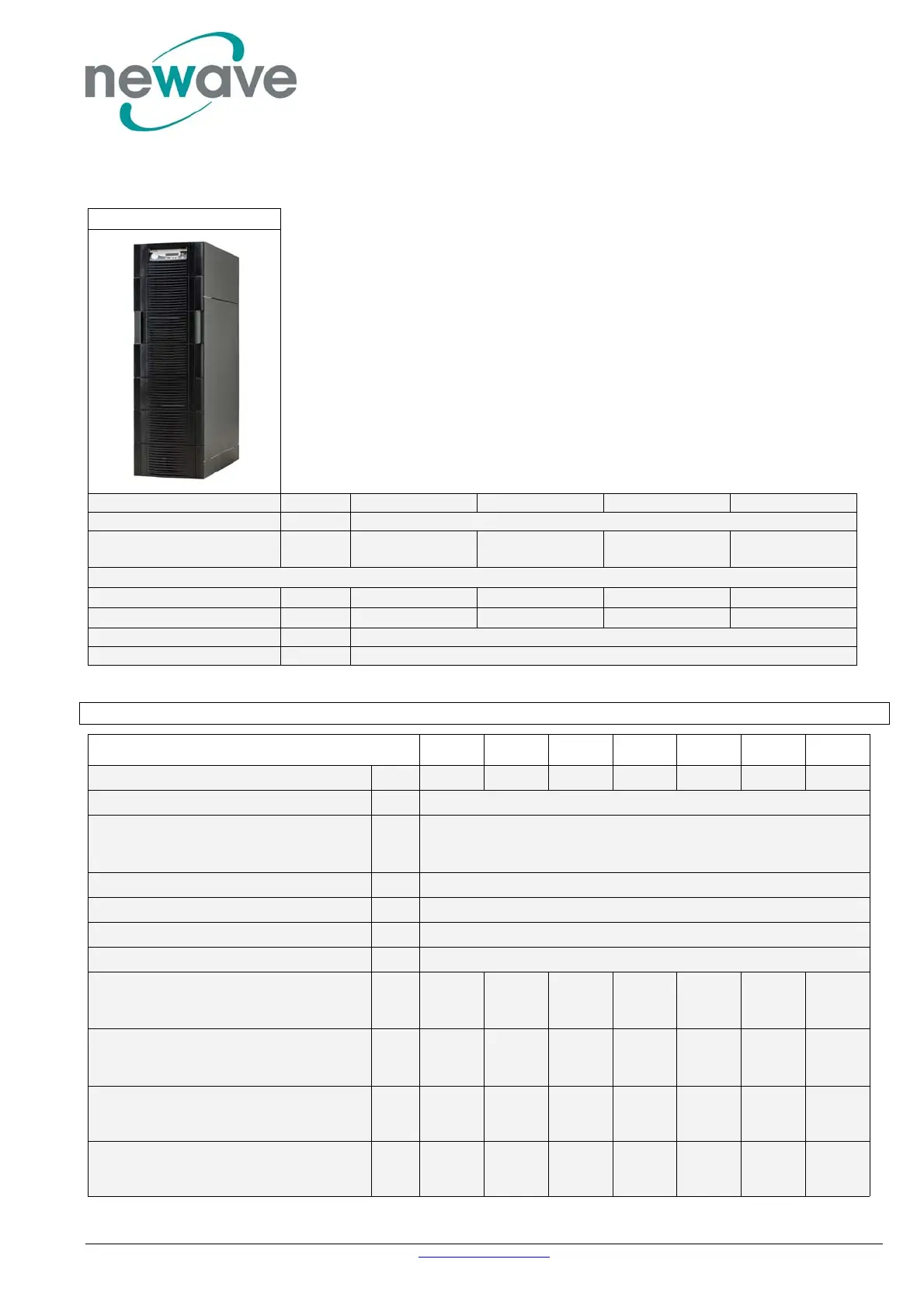

10.2.3 MECHANICAL CHARACTERISTICS POWERSCALE 25-50kVA Cabinet C
PowerScale Cabinet C
Max. Power connection kVA 25 30 40 50
Dimensions (WxHxD) mm 440x1400x910
Weight without battery kg
(9Ah/28Ah)
151/135
(9Ah/28Ah)
160/145
9Ah/28Ah
165/150
9Ah/28Ah
170/155
Weight with battery
144 blocks of 7/9Ah kg 540 550 555 560
48 blocks of 28Ah kg 605 615 620 625
with standard packaging kg + 5
Colour Graffito grey (RAL 7024)
10.3 INPUT CHARACTERISTICS
UPS Model PS 10 PS 15 PS 20 PS 25 PS 30 PS 40 PS 50
Output Power rating
kVA 10 15 20 25 30 40 50
Nominal Input Voltage
V 3x380/220V+N, 3x400V/230V+N, 3x415/240V+N
Input Voltage Tolerance
(ref to 3x400/230V) for Loads in %:
V
(-23%/+15%) 3x308/177 V to 3x460/264 V for <100 % load
(-30%/+15%) 3x280/161 V to 3x460/264 V for < 80 % load
(-40%/+15%) 3x240/138 V to 3x460/264 V for < 60 % load
Input Frequency
Hz 35 – 70
Input Power Factor
PF=0.99 @ 100 % load
Inrush Current
A max. In
Input Distortion THDi
Sine-wave THDi < 3 % @ 100% load
Max. Input Power with rated output
power and charged battery
(output cosφ = 0.9)
kW 9.6 14.4 19.1 23.9 28.7 38.3 47.9
Max. Input Current with rated output
power and charged battery
(output cosφ = 0.9)
A 13.9 20.8 27.8 34.7 41.6 55.5 69.4
Max. Input Power with rated output power
and discharged battery
(output cosφ = 0.9)
kW 10.5 15.7 21 26.2 31.4 41.9 52.4
Max. Input Current with rated output
power and discharged battery
(output cosφ = 0.9)
A 15.2 22.8 30.4 37.9 45.5 60.7 75.9
