10.12.2 INPUT FEED RATINGS
Cable Sections and Fuse Ratings recommended. Alternatively, local standards to be respected

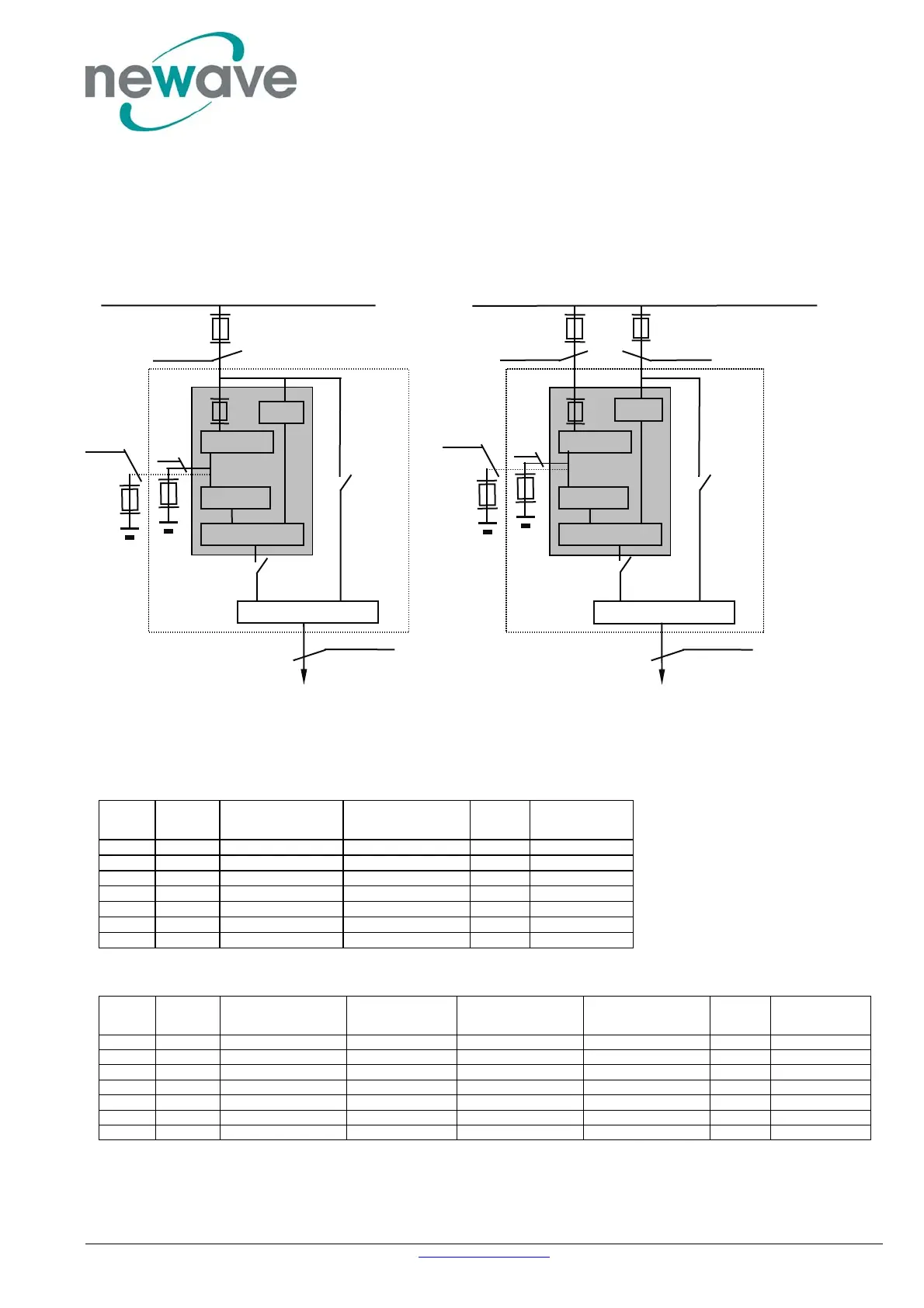

Block Diagram
Figure 3.3: Block Diagram POWERSCALE from 10-50 kVA
STANDARD VERSION (SINGLE INPUT FEED)
Power
(kVA)
Fuse A
(Agl/CB)
Cable A
(IEC 60950-1:2001)
Cable D
(IEC 60950-1:2001)
Fuse E
+/N/-
Cable E
+/N/-
10 3x20 5x2.5 5x2.5 3x32A 3x4+ PE
15 3x32 5x4 5x4 3x32A 3x4 + PE
20 3x40 5x6 5x6 3x50A 3x10 + PE
25 3x40 5x6 5x6 3x50A 3x10 + PE
30 3x63 5x10 5x10 3x80A 3x16 + PE
40 3x80 5x25 5x25 3x100A 3x25 + PE
50 3x80 5x25 5x25 3x10A 3x25 + PE
VERSION ON REQUEST (DUAL INPUT FEED)
Power
(kVA)
Fuse B
(Agl/CB)
Cable B
(IEC 60950-1:2001)
Fuse C
(Agl/CB)
Cable C
(IEC 60950-1:2001)
Cable D
(IEC 60950-1:2001)
Fuse E
+/N/-
Cable E
+/N/-
10 3x20 5x2.5 3x20 4x2.5 5x2.5 3x32A 3x4+ PE
15 3x32 5x4 3x32 4x4 5x4 3x32A 3x4 + PE
20 3x40 5x6 3x40 4x6 5x6 3x50A 3x10 + PE
25 3x40 5x6 3x40 4x6 5x6 3x50A 3x10 + PE
30 3x63 5x10 3x63 4x10 5x10 3x80A 3x16 + PE
40 3x80 5x25 3x80 4x25 5x25 3x100A 3x25 + PE
50 3x80 5x25 3x80 4x25 5x25 3x10A 3x25 + PE
DUAL INPUT FEED IS AVAILABLE ON REQUEST
DUAL INPUT FEED
SINGLE INPUT FEED
Fuse B Fuse C
Cable C
Frame
Static Switch
Inverter
Rectifier
Mainten. Bypass
Cable D
Load
FA2
Cable B
FA1
Cable E
FA4
MAINS (3x380V/220V,
3x400/230V
,
3x415/240V
)
Cable A
Fuse A
Frame
Static Switch
Inverter
Rectifier
Mainten. Bypass
Cable D
Load
FA2
MAINS (3x380V/220V,
3x400/230V
,
3x415/240V
)
FA1
Cable E
FA4
F1 or
FA3
IA2
IA1
F1 or
FA3
IA2
IA1
