2.3 BATTERY CONNECTIONS
2.3.1 BATTERY BANKS CABINETS A & B AND EXTERNAL BATTERY

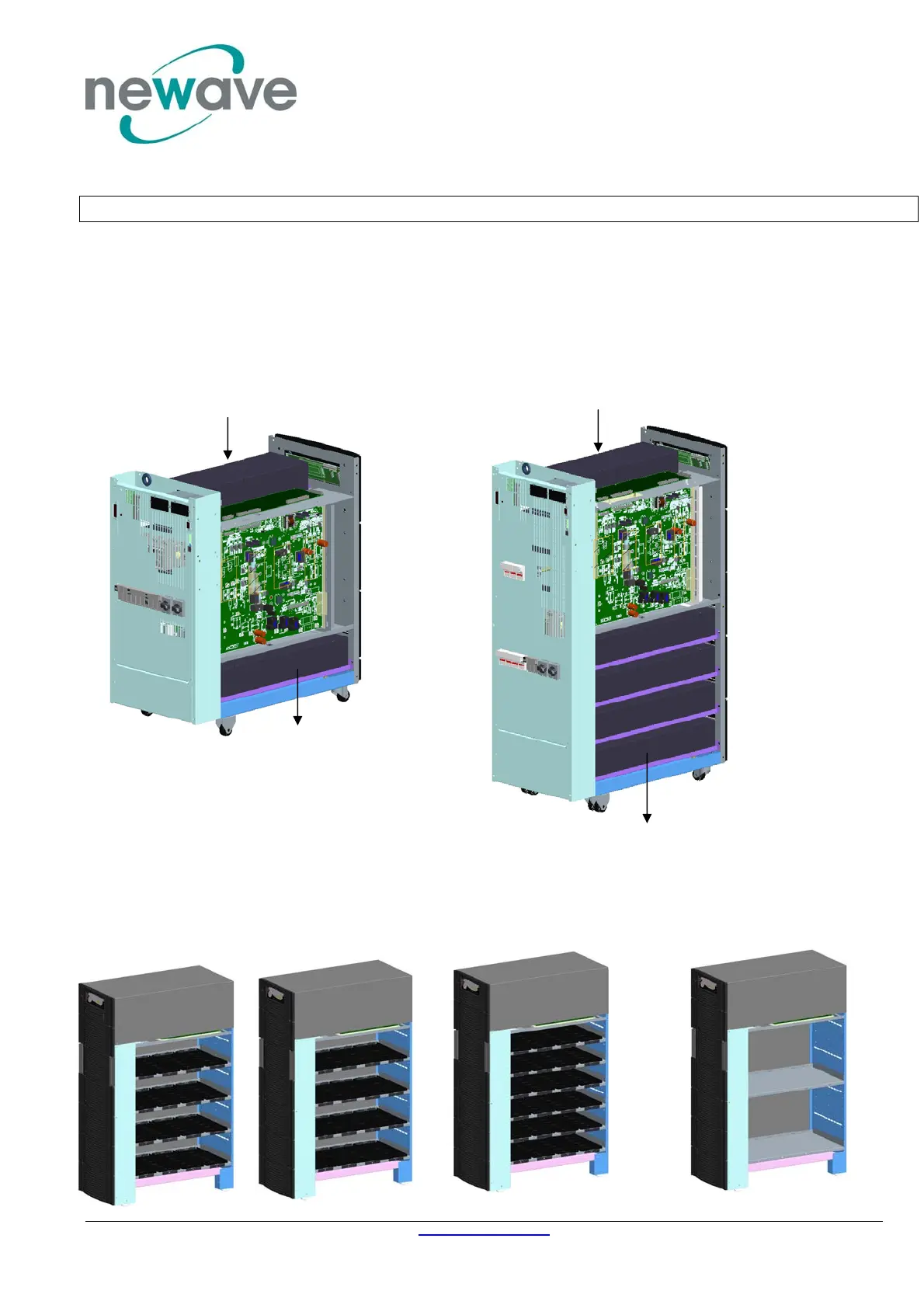

PowerScale has additional battery enclosure. In the drawing below the Battery enclosures are shown.
NOTE: Within the cabinets A & B in only 7/9Ah batteries are allowed (16-48 blocks), in Cabinet C also 28Ah
batteries are allowed
Cabinet A (max. 48 blocks) Cabinet B (max.96 blocks) (2x48 blocks)
Battery bank Battery bank
Battery bank
Battery bank
NOTE: Set-up the correct number of battery blocks on Control Panel (Menu: Service-Set-Up).
Cabinet C (max 144 blocks, 3x48 7/9Ah or max. 48 blocks 28Ah)
PS-Cabinet-C-
48x28Ah
PS-Cabinet-C-
96x9
A
h
PS-Cabinet-C-
144x9
A
h
PS-Cabinet-C-
Standard
