XPS-D Controller User Interface Manual
2.0 User Interface description
2.1 Interface Overview
The XPS software tools provide users a convenient access to the most common features
and functions of the XPS controller. All software tools are implemented as a web
interface. The advantage of a web interface is that it is independent from the user's
operating system and doesn't require any specific software on the host PC.
When connected to the controller, a log-in menu pops up. There are two options to log-
in to the XPS controller: as “User” or as “Administrator”. Users can log-in only with
User rights. Administrators can log-in with User or with Administrator rights by
selecting the respective Role in the login page. When logged-in with Administrator
rights, you have an extended set of tools available.
The predefined user has the log-in name Anonymous, Password Anonymous. The
predefined Administrator has the log-in name Administrator, Password
Administrator. Both the log-in name and the password are case sensitive. Select
"Remember me" to save the login credentials.
Once logged, the main tab is displayed across the top of the XPS Motion
Controller/Driver main program window, and lists each primary interface option. Each
interface option has its own pull-down menu that allows the user to select various
options by clicking the mouse's left button.

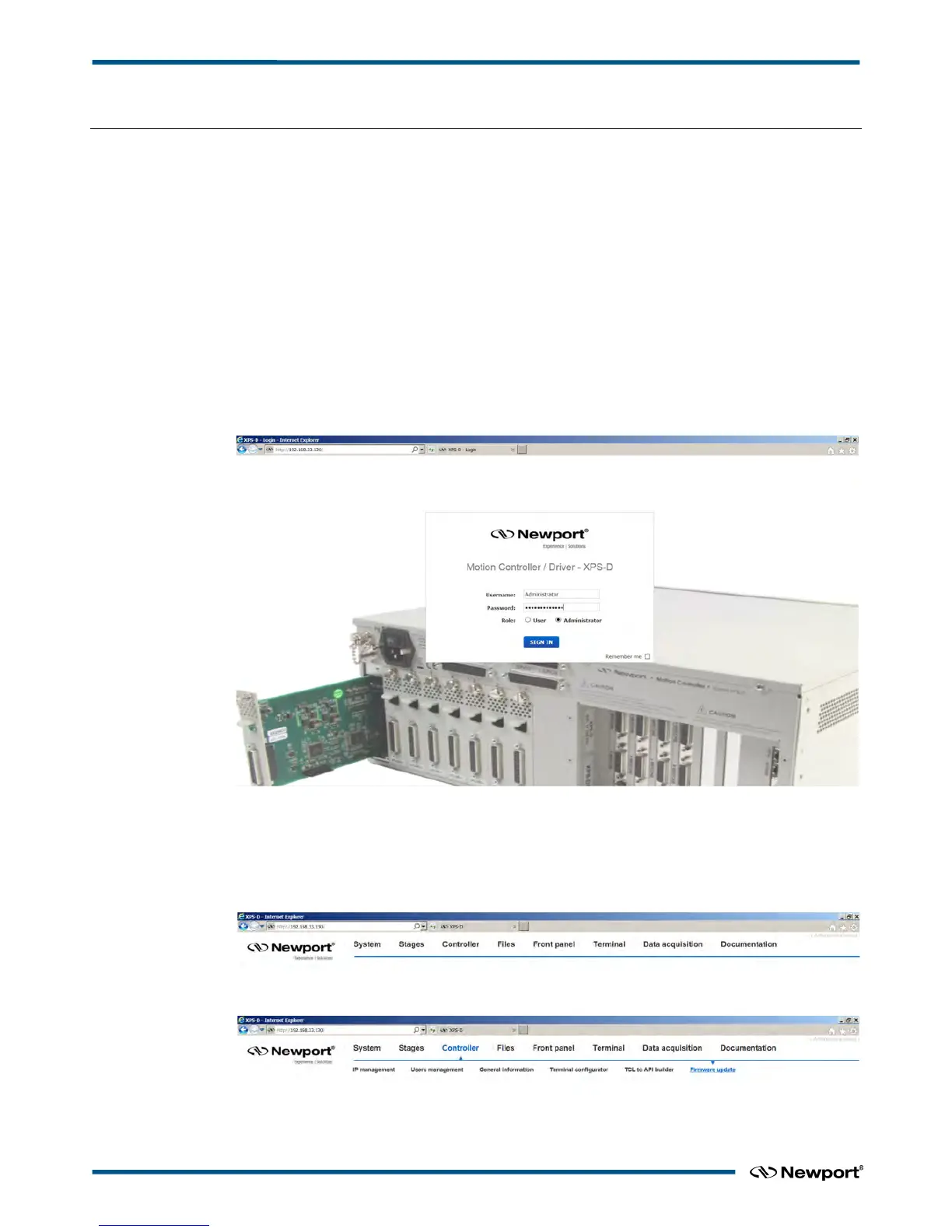

Administrator Menus (with Administrator Rights)
Sub-Menu for CONTROLLER (with Administrator Rights)
