Physical Description
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
version 3.2
29
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS

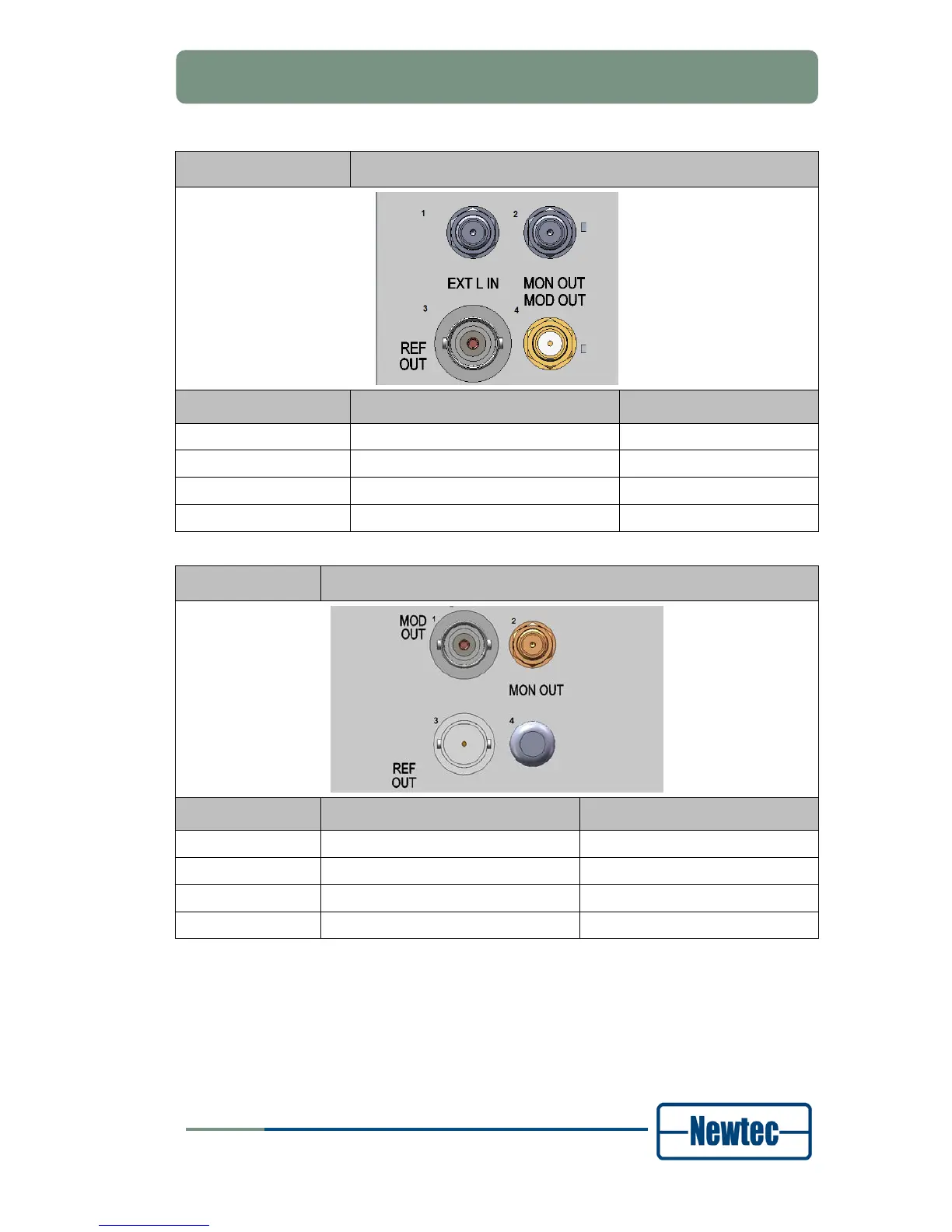

Back Panel 02 / Description
Connector Technical Specifications Signalling Type
1. EXT L IN Not used
2. MON OUT SMA (Female) 50 Ohm L-band 1080MHz
3. MOD OUT BNC (Female) 50 Ohm L-band
4. REF OUT SMA (Female) 50 Ohm 10MHz
Back Panel 03 / Description
Connector Technical Specifications Signalling Type
1. MOD OUT SMA (Female) 50 Ohm IF-band 70MHz – 140MHz
2. MON OUT SMA (Female) 50 Ohm L-band 1080MHz
3. REF OUT BNC (Female) 50 Ohm 10MHz
4. Not used
