5.2.3 LEDs
The LEDs provide a basic status of the device.

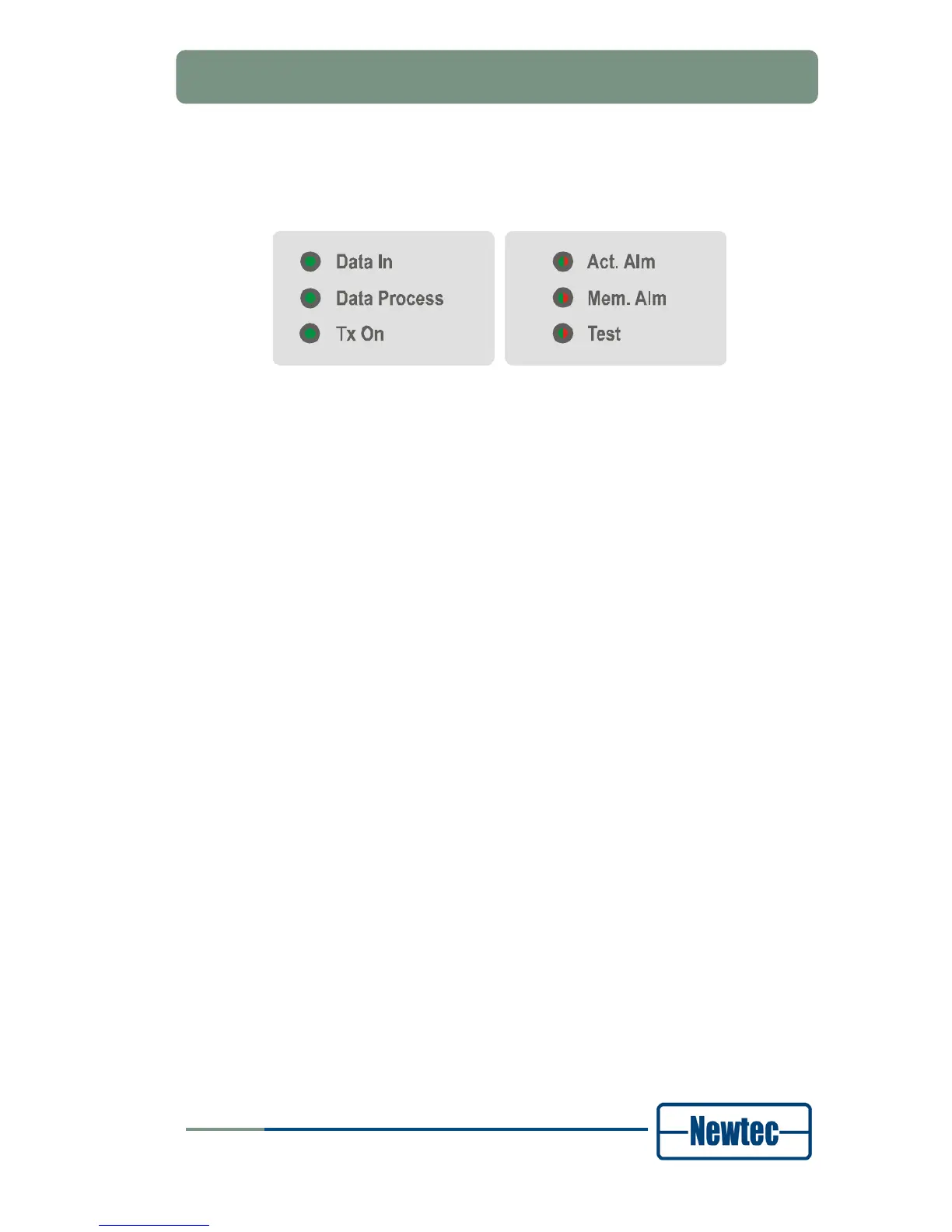

Figure 14- Front Panel LEDs
Data In: green At least 1 data input is active and valid
Data Process: green Data processed prior to transmission
(rate adaptation, etc.)
Tx on: green Transmit on
Act. Alm: red Actual alarm(s) present
Mem. Alm: red Memorised alarm(s) present
Test: orange On if the modulator is in test mode
