6.3.4.3 Macro Tab

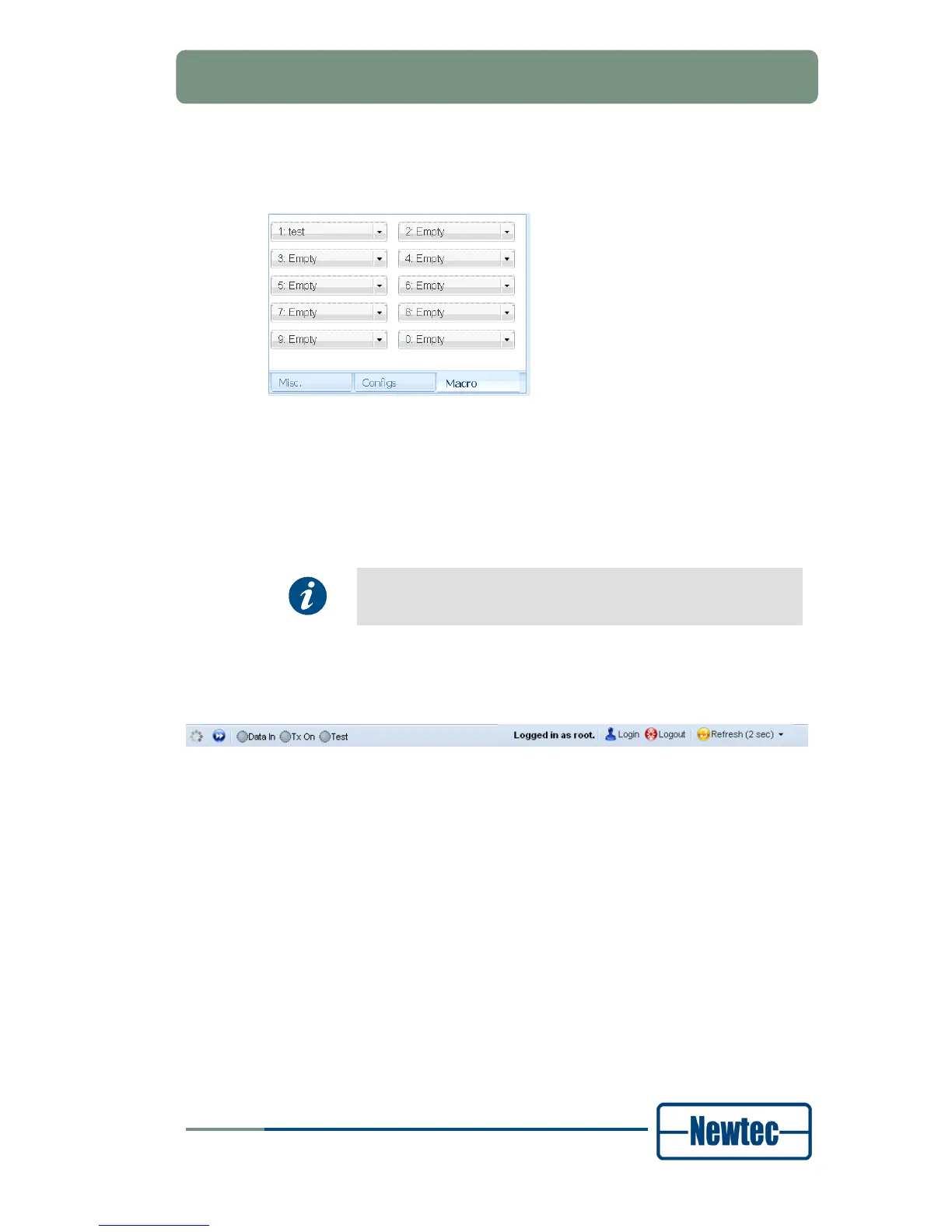

Figure 27 - Custom Function Controls Tab
Use the buttons on the Macro tab to store sets of RMCP-commands. Manually
insert and assign up to twenty RMCP-commands separated by a “;” to one button
or change stored RMCP-command sets via the Edit option.
Click the arrow next to the button to open the Edit option.
An overview of all allowed RMCP-commands can be found in the
reference manual of your device.
6.3.5 Status Bar
The status bar informs on:
• Ongoing interaction with the device via the status field on the left;
• The current user profile.
Log in to or log out from the GUI of the device via the buttons in the status bar.
When you click the:
• Logout button, the current user is logged out.
• Login button, to open the User identification dialog box.
• Refresh button to refresh the status of the device.
Click the arrow to configure the time interval of refresing the status of the
device.
