Physical Description
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
version 3.2
30
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS

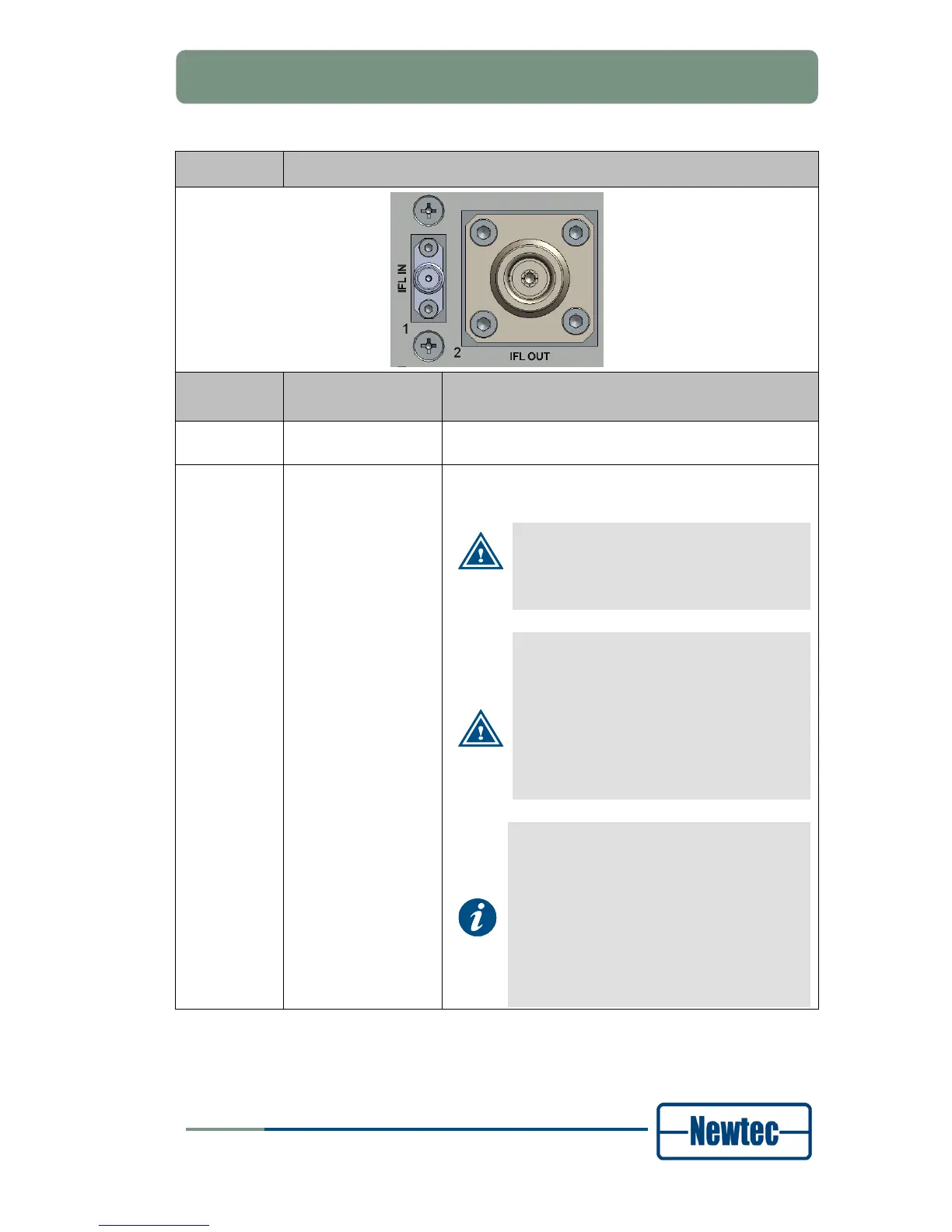

Back Panel 04 / Description
Connector Technical
Specifications
Signalling Type
1. IFIN SMA (Female) 50
Ohm
L-band, is looped to Mod out of BP01
2. IFL OUT N-Connector
(Female) 50 Ohm
L-band + 10MHz +DC (12V, 24V, 48V)
The following DC voltages can be selected:
• 12V
• 24V
• 48V
The maximum current on this connector is
3A.
Use a coax cable rated for the voltage and
current marked on the device.
Switch of the power of the device before
connecting the coax cable.
This to reduce the risk of personal injury
from electric shock or damage to the
device.
The following parameters must be enabled
in the device:
• ODU communication control
• Outdoor power supply
Set the parameters on the following
location. (Setting parameters refer to
chapter 5.)
AZ >> Unit >> Control >> Outdoor Unit
