Physical Description
User Manual for AZ110 Broadcast Satellite Modulator with ASI interface
version 3.2
32
SHAPING THE FUTURE SATELLITE OF COMMUNICATIONS

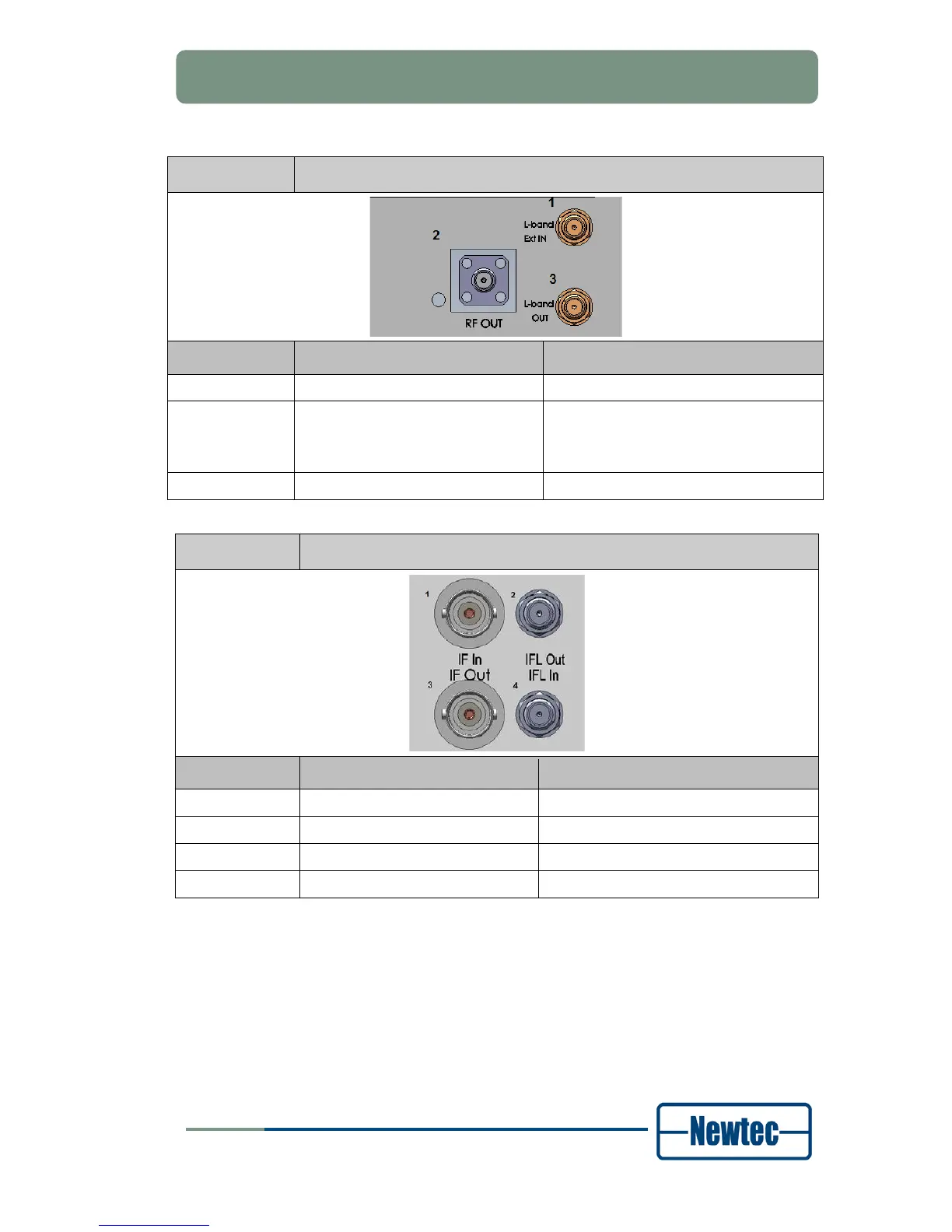

Back Panel 08/Description
Connector Technical Specifications Signalling Type
1. IF In Not used
2. IF Out SMA (Female) 50 Ohm L-band
3. IFL Out Not used
4. IFL In Not used
Back Panel 07/Description
Connector Technical Specifications Signalling Type
1. L-band Ext IN SMA (Female) 50 Ohm L-band
2. RF OUT SMA (Female) 50 Ohm C-band or
Ku-band or
DBS-band
3. L-band OUT SMA (Female) 50 Ohm L-band
