NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for NDiB B533
NDiB B533

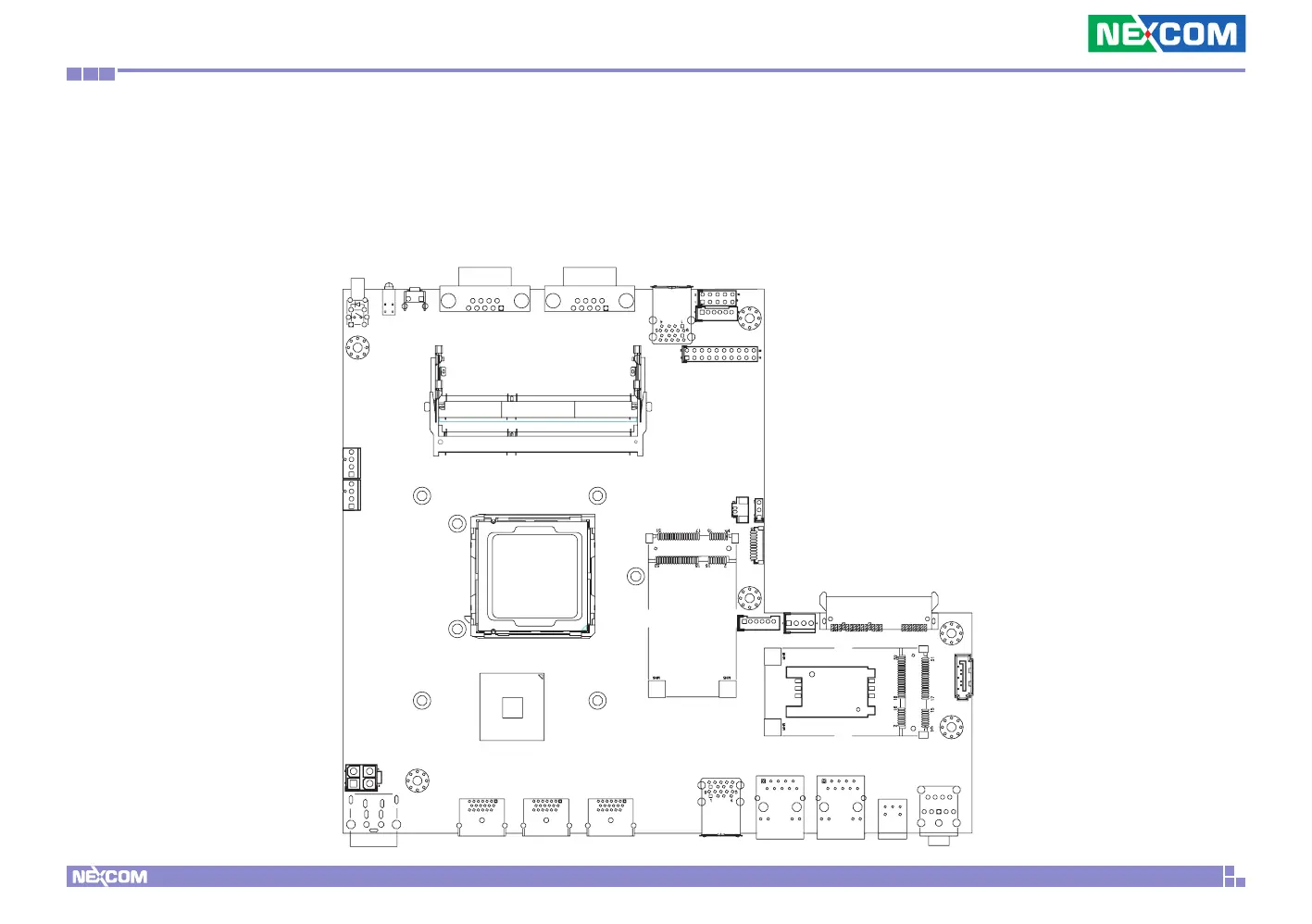

The figure below is the top view of the NDiB B533, which is the mainboard used in the NDiS B533. It shows the locations of the jumpers and connectors.
SW2
LED1
SW1
DIMM1
DIMM2
FAN1
FAN2
J1 J2
JP2
CN1
J6
J8
CN2
CN4
CN3
CN6
CN10
CON3CON2
USB2
CN9CN8CN7
CN11
CON1
CN5
SATA1
JP3
J5
JP1
J3
USB1
