NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
12
51 52
Pin Definition Pin Definition
1 WAKE# 2 3.3VSB
3 NC 4 GND
5 NC 6 1.5V
7 CLK_REQ# 8 UIM_PWR
9 GND 10 UIM_DAT
11 PCIE_CLK# 12 UIM_CLK
13 PCIE_CLK 14 UIM_RST
15 GND 16 NC
17 NC 18 GND
19 NC 20 WLAN_DIS#
21 GND 22 RESET#
23 PCIE_RX_N 24 3.3VSB
25 PCIE_RX_P 26 GND

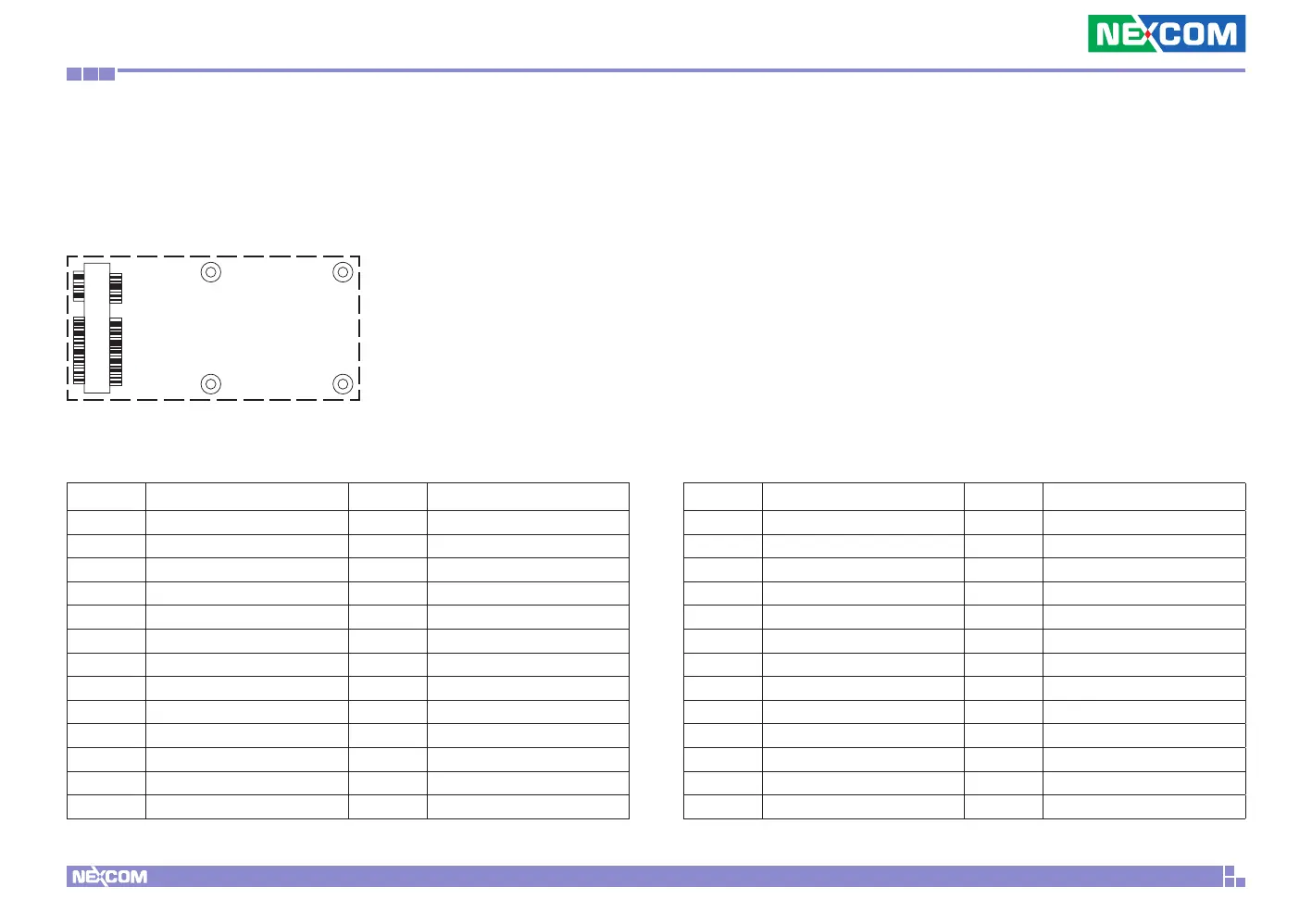

Mini-PCIe Connector
Connector location: CN5
Pin Definition Pin Definition
27 GND 28 1.5V
29 GND 30 SMBCLK
31 PCIE_TX_N 32 SMBDAT
33 PCIE_TX_P 34 GND
35 GND 36 USB_N
37 GND 38 USB_P
39 3.3VSB 40 GND
41 3.3VSB 42 NC
43 GND 44 NC
45 NC 46 NC
47 NC 48 1.5V
49 NC 50 GND
51 NC 52 3.3VSB
