NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

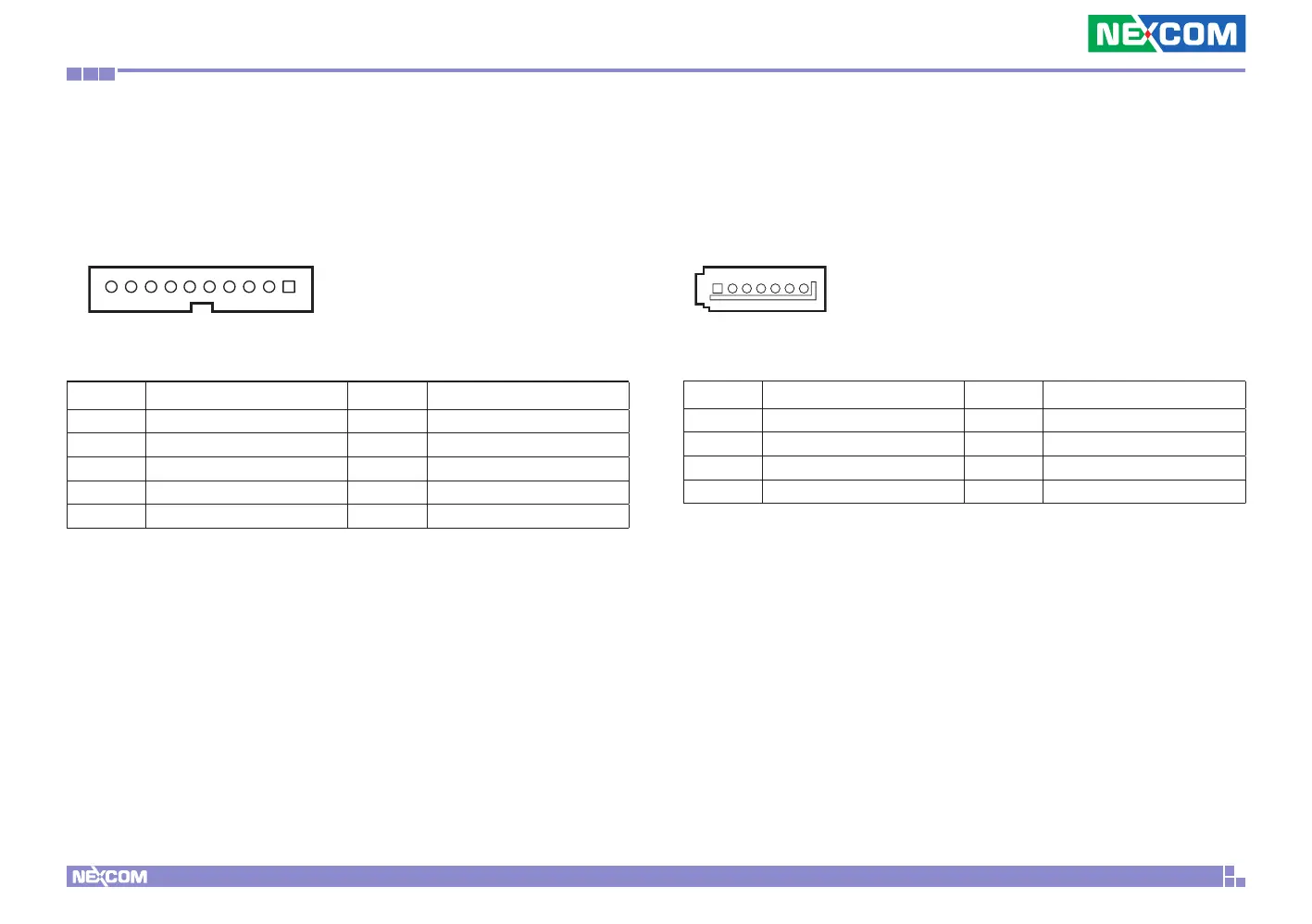

Debug 80 Port Connector
Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J6
Pin Definition Pin Definition
1 GND 2 PCIRST#
3 33M_CLK 4 LPC_FRAME#
5 LPC_AD3 6 LPC_AD2
7 LPC_AD1 8 LPC_AD0
9 3.3V 10 3.3V
110
SATA Connector
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN3
Pin Definition Pin Definition
1 GND 2 SATA_TXP
3 SATA_TXN 4 GND
5 SATA_RXN 6 SATA_RXP
7 GND
1 7
