NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

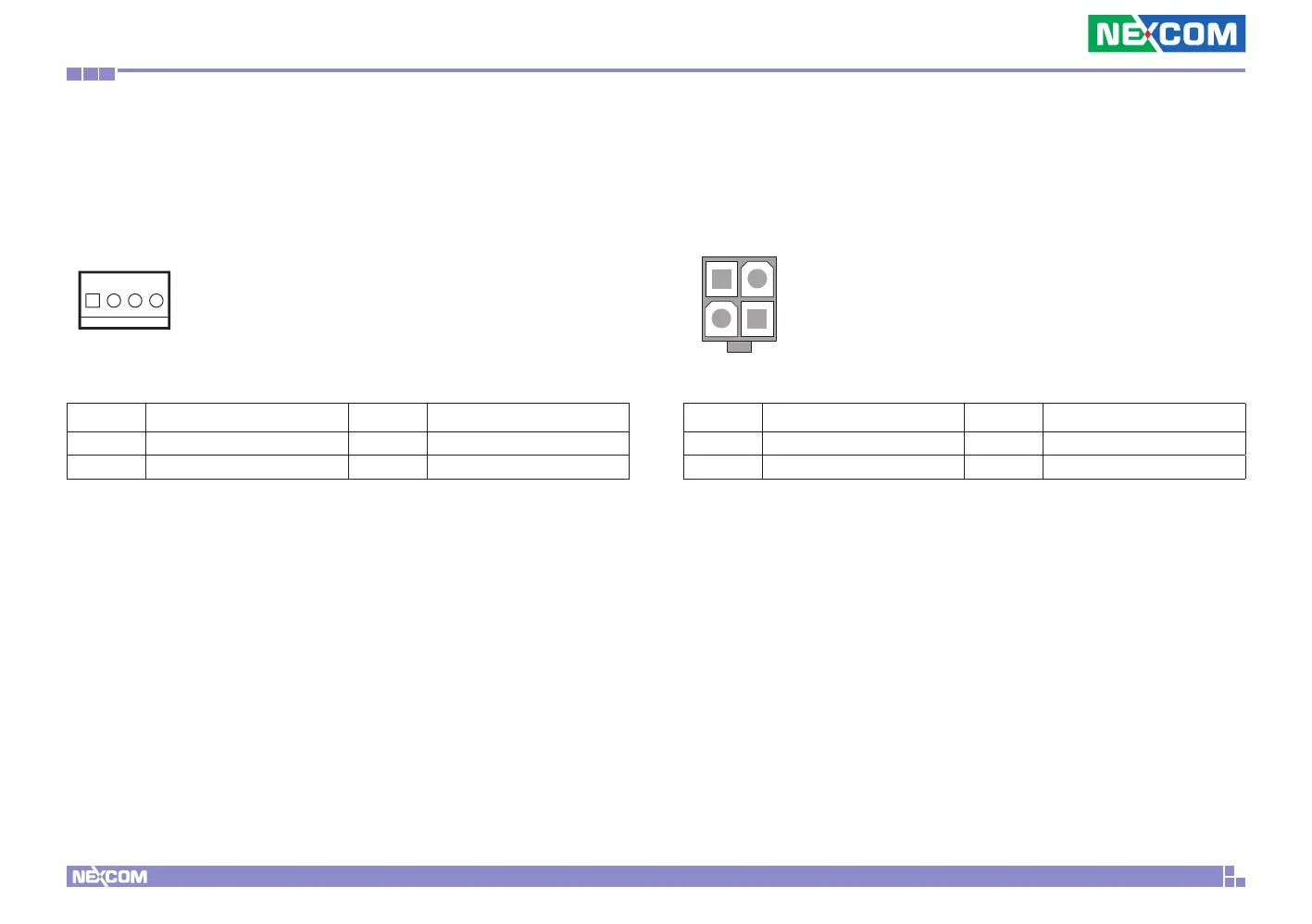

FAN Connectors
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: FAN1 and FAN2
Pin Definition Pin Definition
1 GND 2 VCC
3 SPEED 4 CONTROL
Pin Definition Pin Definition
1 GND 2 GND
3 12V DC_IN 4 12V DC_IN
14
DC-in Power Connector
Connector type: 2x2 4-pin header
Connector location: CON1
12
34
