NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

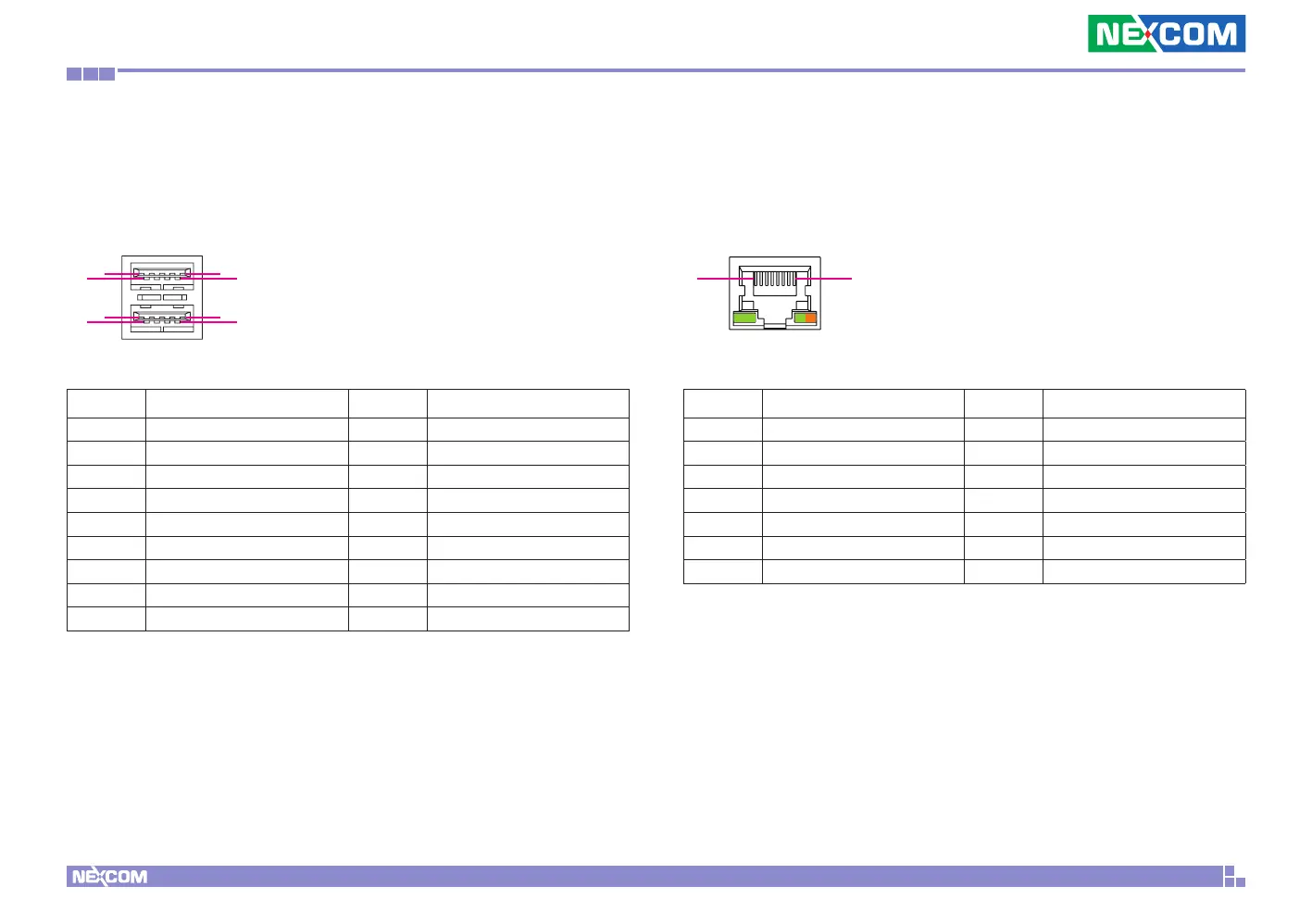

USB 3.0 Ports
Connector type: Dual USB 3.0 ports
Connector location: USB2
Pin Definition Pin Definition
1 VCC 2 USB0_N
3 USB0_P 4 GND
5 USB3_RX0_N 6 USB3_RX0_P
7 GND 8 USB3_TX0_N
9 USB3_TX0_P 10 VCC
11 USB1_N 12 USB1_P
13 GND 14 USB3_RX1_N
15 USB3_RX1_P 16 GND
17 USB3_TX1_N 18 USB3_TX1_P
9
1
5
4
10 13
1418
LAN Connectors
Connector type: RJ45 port with LEDs
Connector location: CON2 and CON3
Pin Definition Pin Definition
1 TCT 2 TD4-
3 TD4+ 4 TD3-
5 TD3+ 6 TD2-
7 TD2+ 8 TD1-
9 TD1+ 10 TCTG
11 Left_LED+ 12 Left_LED-
13 Right_LED+ 14 Right_LED-
1
ACT Link
8
