NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

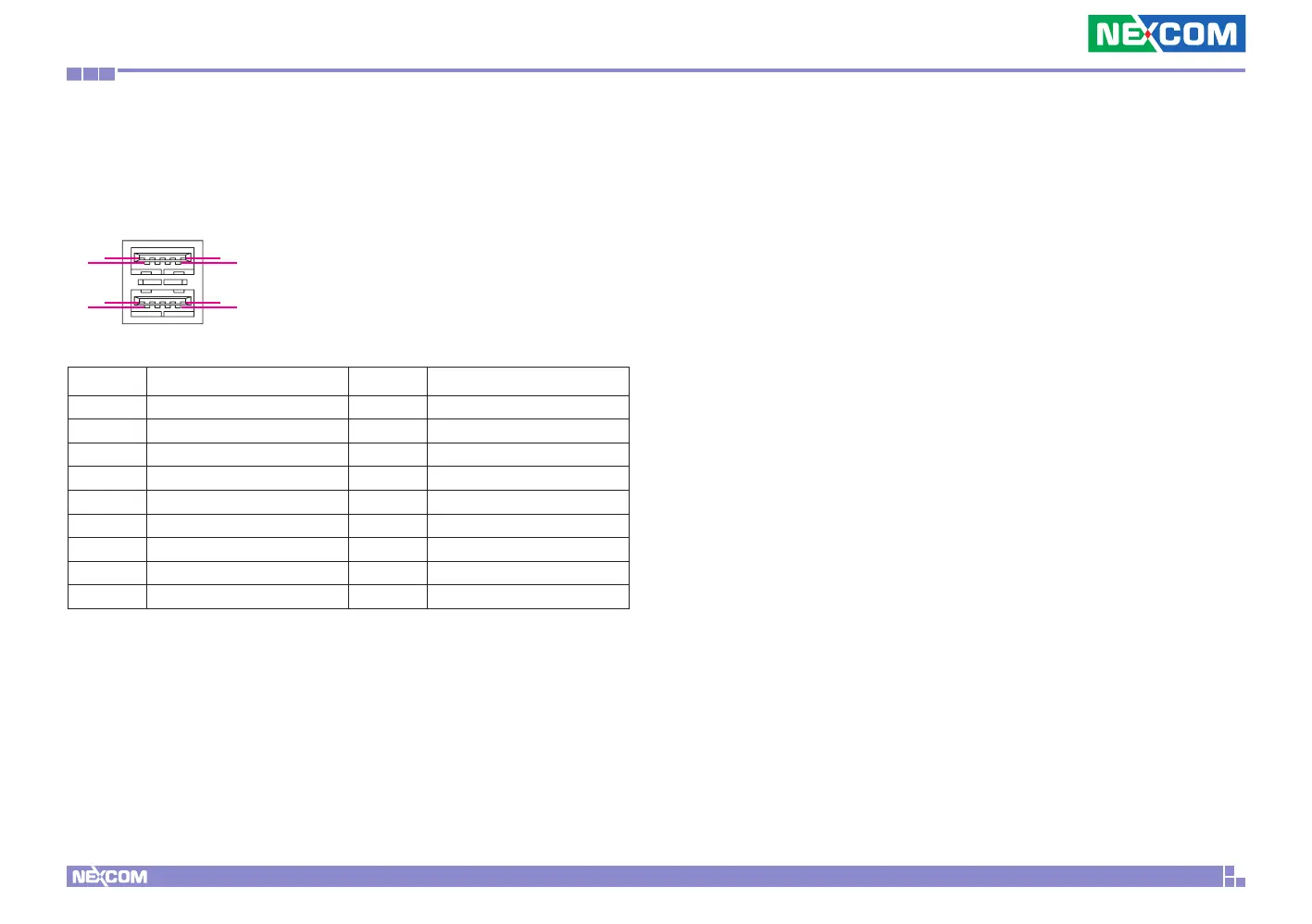

USB 3.0 Ports
Connector type: Dual USB 3.0 ports
Connector location: USB1
Pin Definition Pin Definition
1 VCC 2 USB0_N
3 USB0_P 4 GND
5 USB3_RX0_N 6 USB3_RX0_P
7 GND 8 USB3_TX0_N
9 USB3_TX0_P 10 VCC
11 USB1_N 12 USB1_P
13 GND 14 USB3_RX1_N
15 USB3_RX1_P 16 GND
17 USB3_TX1_N 18 USB3_TX1_P
9
1
5
4
10 13
1418
