NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

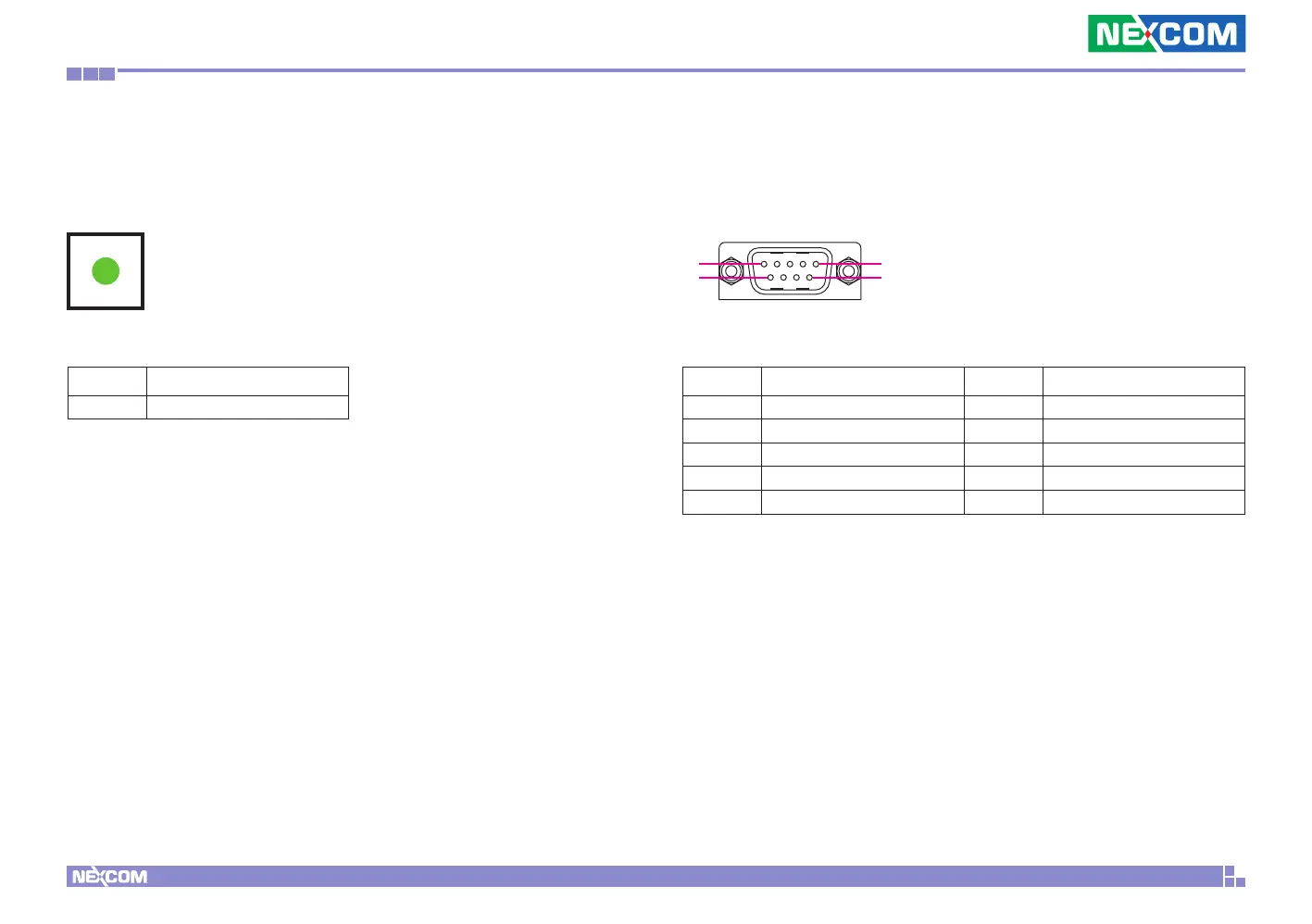

Reset Button
Connector location: SW1
COM1 and COM2 Connectors
Connector type: DB-9 port
Connector location: J1 and J2
Pin Definition
1-2 System Reset
1 5
6
9
Pin Definition Pin Definition
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI
