NDiS B533 User Manual
Chapter 3: System Setup
Installing a TV Tuner Module

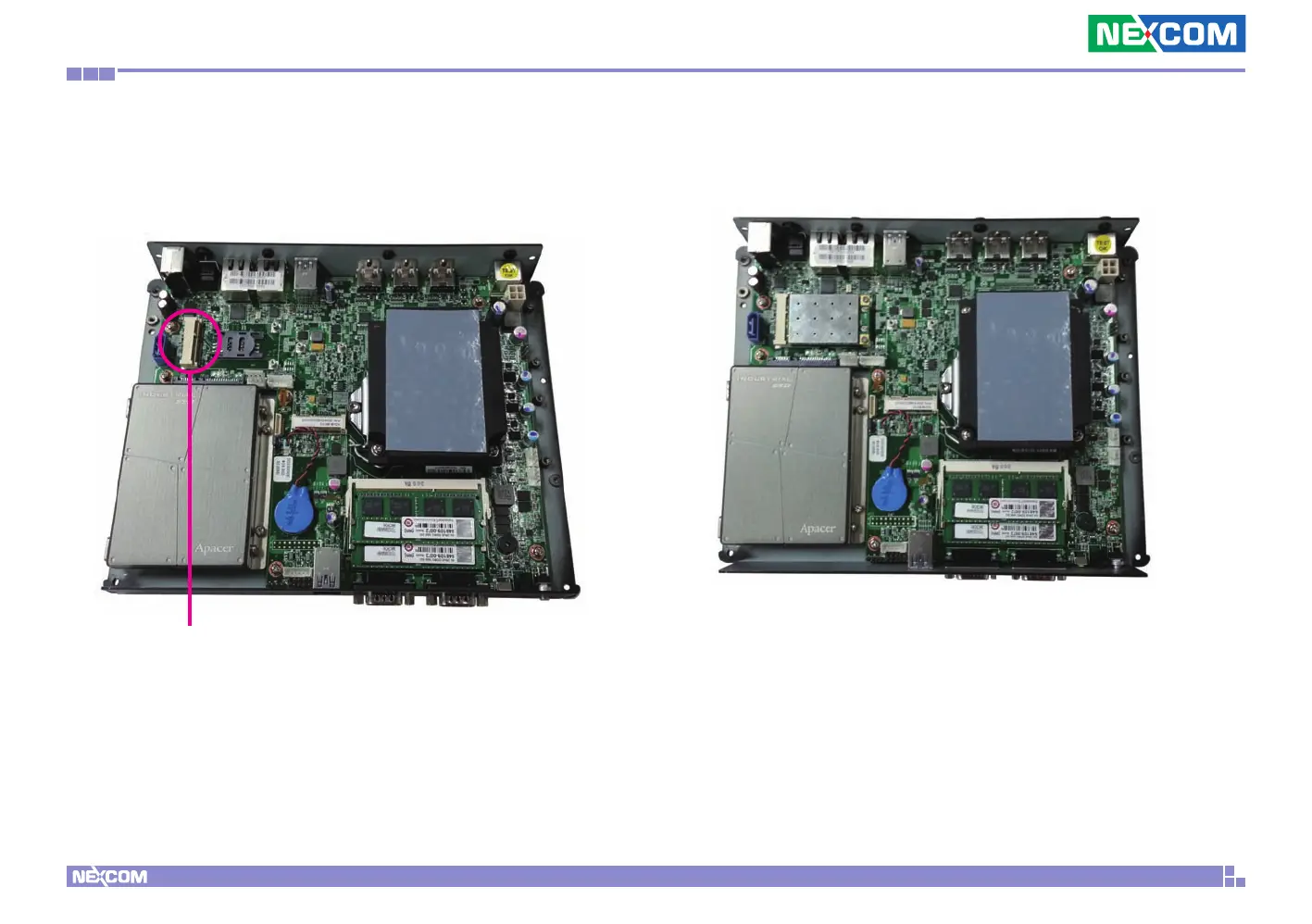

1. Locate the Mini PCI Express slot on the board.
Mini PCI Express Slot
2. Insert the TV module into the Mini PCI Express slot at a 45 degrees
angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
3. Push the module down then secure it with mounting screws.
