NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

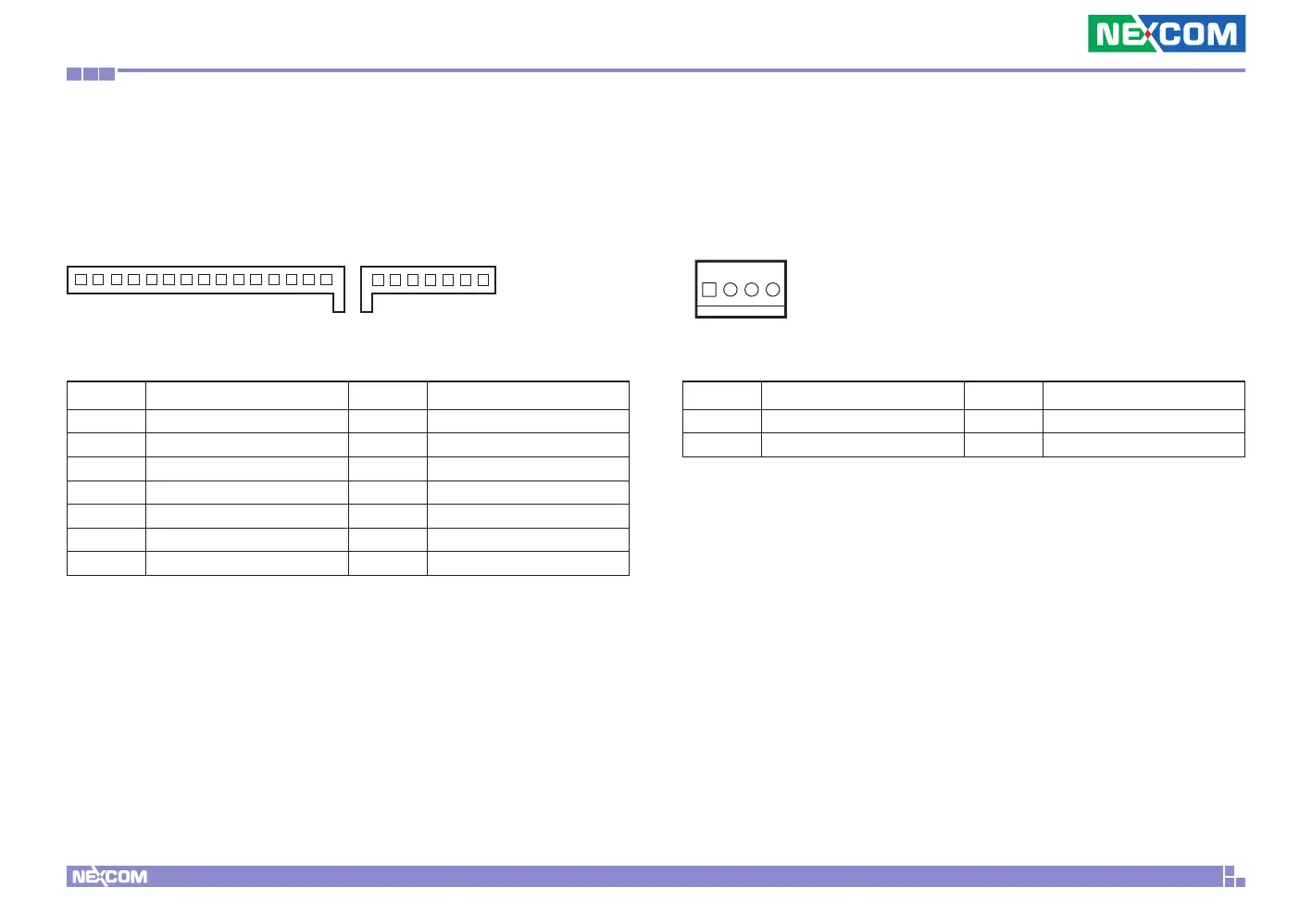

SATA Connector (7-pin and 15-pin)
Connector type: Standard Serial ATAII 7P and 15P
Connector location: SATA1
Pin Definition Pin Definition
S1 GND S2 SATA_TXP
S3 SATA_TXN S4 GND
S5 SATA_RXN S6 SATA_RXP
S7 GND
P1-3 NC P4-6 GND
P7-9 VCC5 P10,12 GND
P11 NC P13-15 VCC12
S1P15
SATA DOM Power Connector
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: CN2
Pin Definition Pin Definition
1 +12V 2 GND
3 GND 4 +5V
