NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

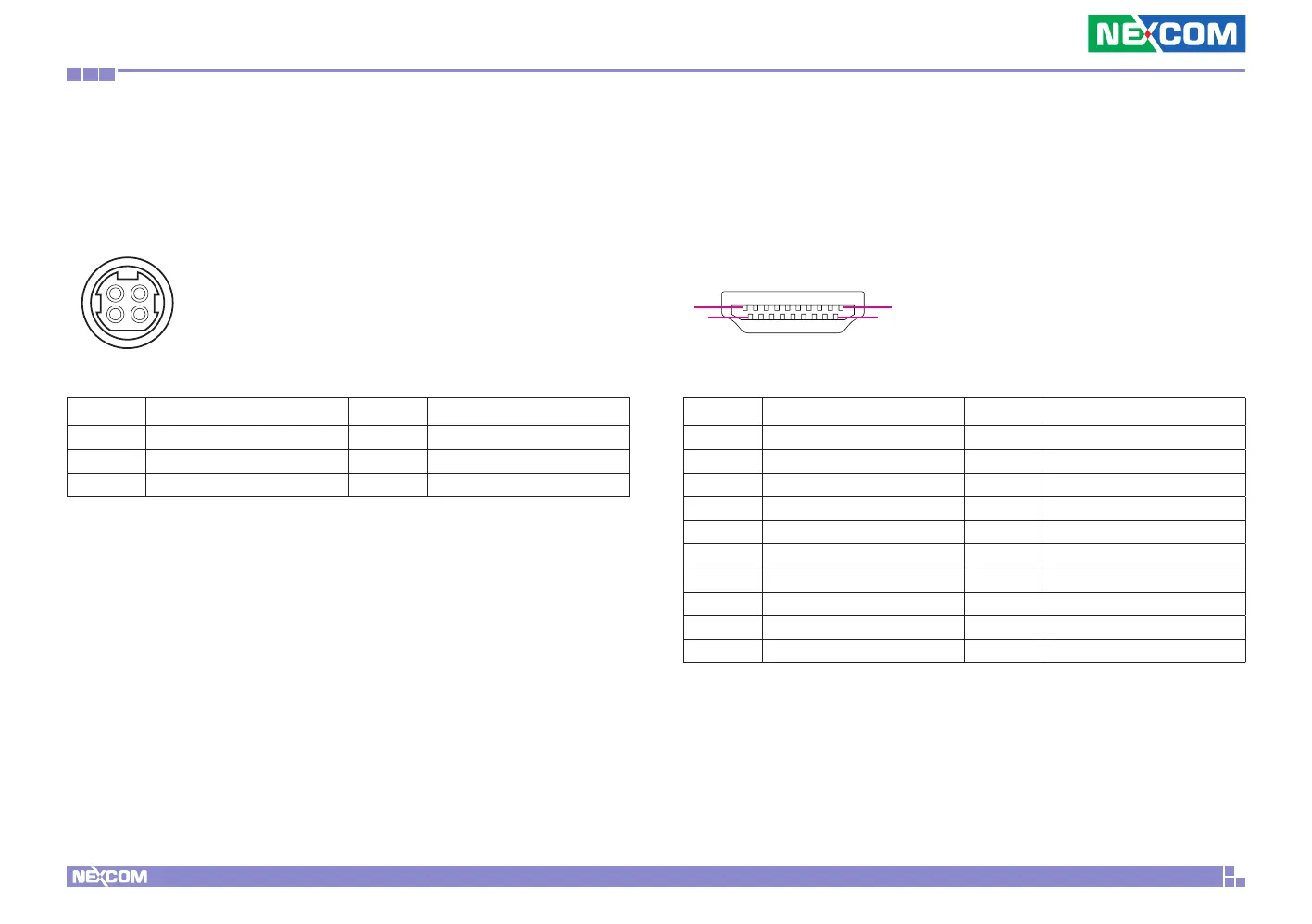

External I/O Interfaces - Rear Panel
DC Jack Connector
Connector location: CN11
Pin Definition Pin Definition
1 12V DC_IN 2 12V DC_IN
3 GND 4 GND
5 GND
HDMI
Connector type: HDMI port
Connector location: CN7, CN8 and CN9
Pin Definition Pin Definition
1 HDMI_D2+ 2 GND
3 HDMI_D2- 4 HDMI_D1+
5 GND 6 HDMI_D1-
7 HDMI_D0+ 8 GND
9 HDMI_D0- 10 HDMI_CLK+
11 GND 12 HDMI_CLK-
13 NC 14 NC
15 HDMI_DDC_SCL 16 HDMI_DDC_SDA
17 GND 18 VCC5
19 HDMI_HPD
1
1 2
3 4
2 18
19
