NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

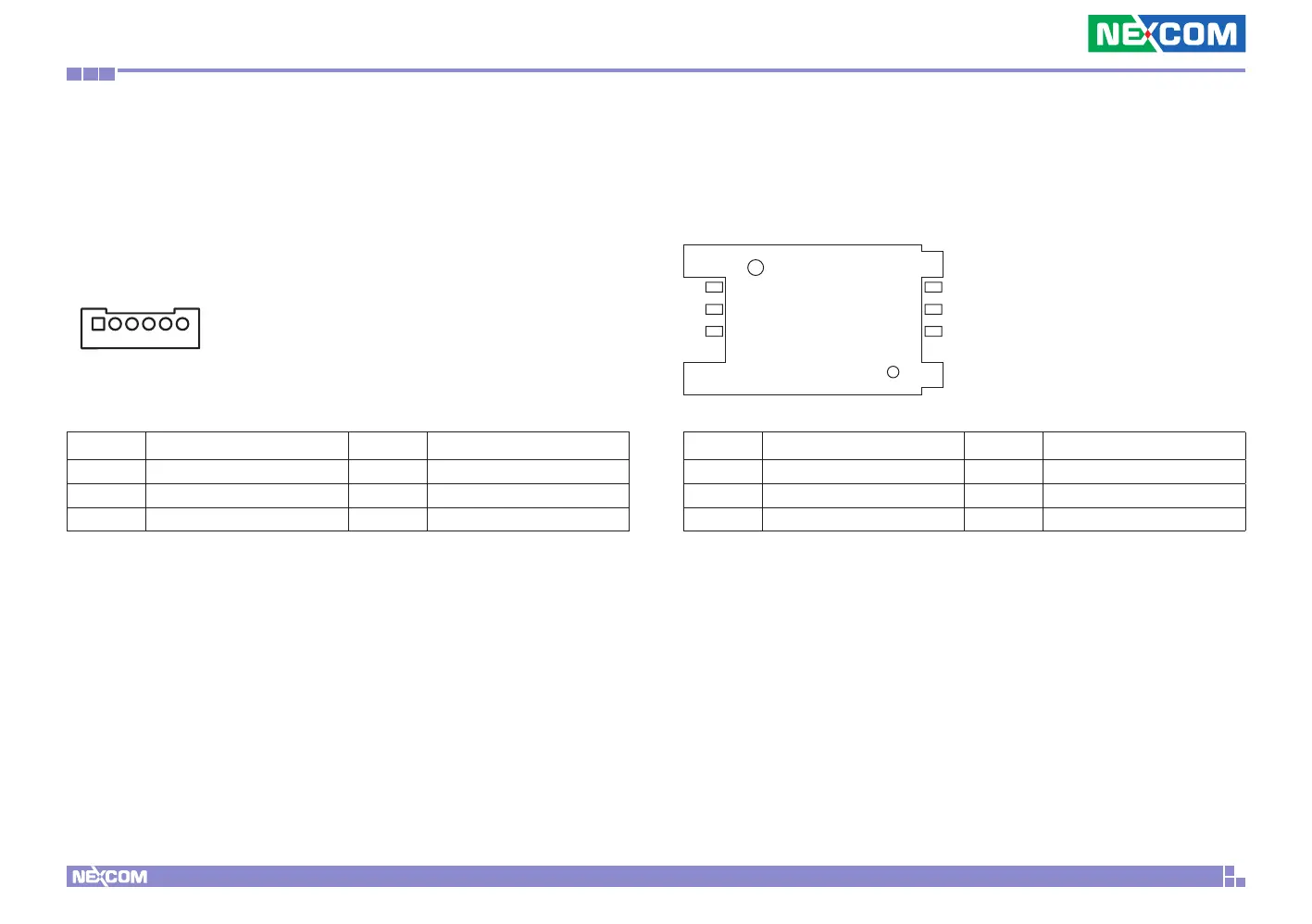

Internal Connectors
USB Connectors
Connector type: 1x6 6-pin header JST, 2.0mm pitch
Connector location: J3 and J8
16
SIM Card Slot
Connector location: CN4
C3
C2
C1
C7
C6
C5
Pin Definition Pin Definition
C1 UIM_PWR C5 GND
C2 UIM_RST C6 NC
C3 UIM_CLK C7 UIM_DAT
Pin Definition Pin Definition
1 VCC 2 USB0_N
3 USB0_P 4 USB1_N
5 USB1_P 6 GND
