30
NDiS B533 User Manual
Chapter 3: System Setup

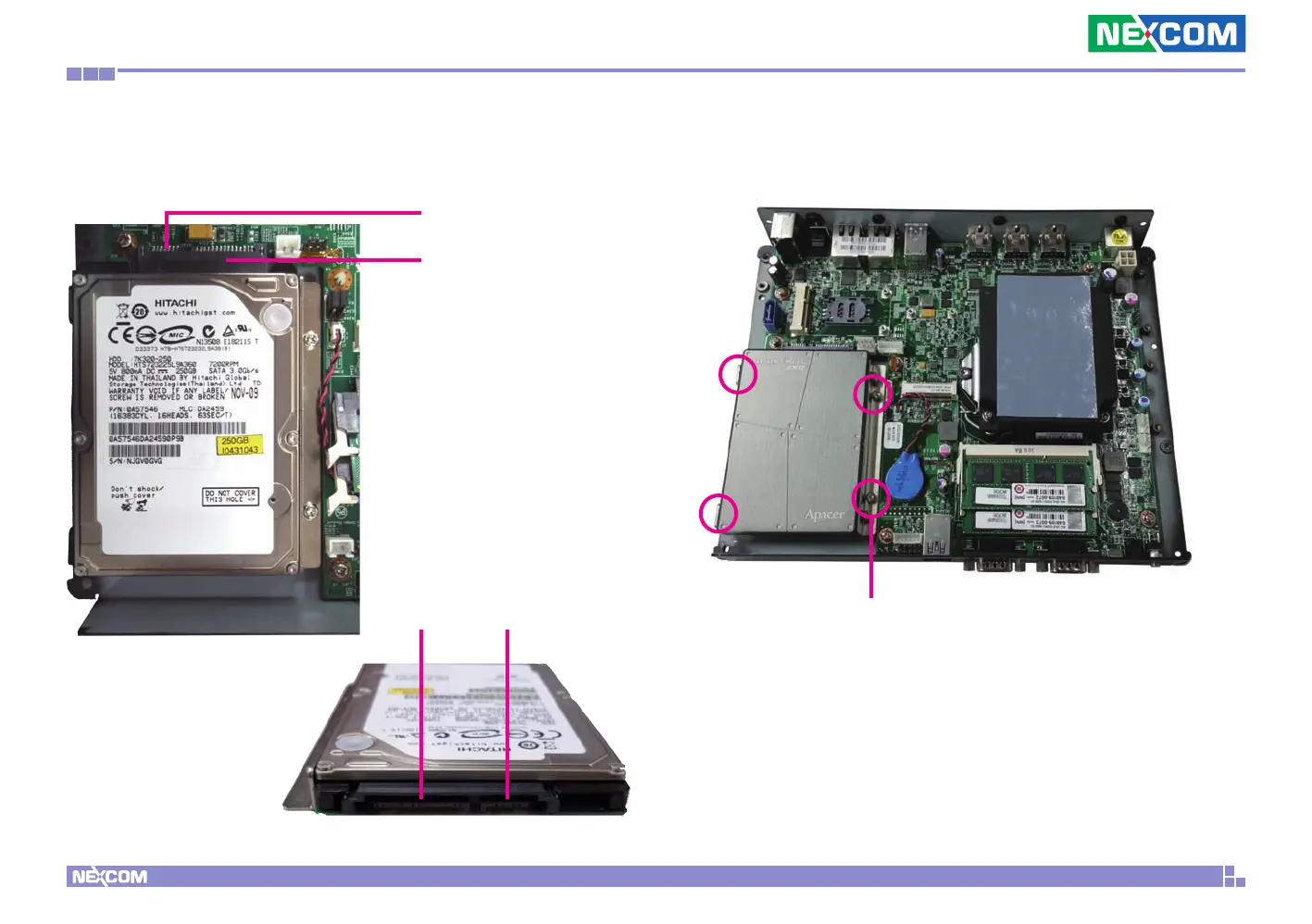

6. Locate the SATA connector and the SATA power connector on the SATA
drive.
SATA Data Connector
SATA Power Connector
SATA Power
Connector
SATA Data
Connector
7. Align the mounting holes of the drive bracket with the mounting studs
on the board then use the provided mounting screws to secure the hard
drive in place.
Mounting Screw
