3 Cabling and Amplication
3.4 LEDs
3.4.1 Status LED
3.4.1 ETH/AES Connector LED
1
2

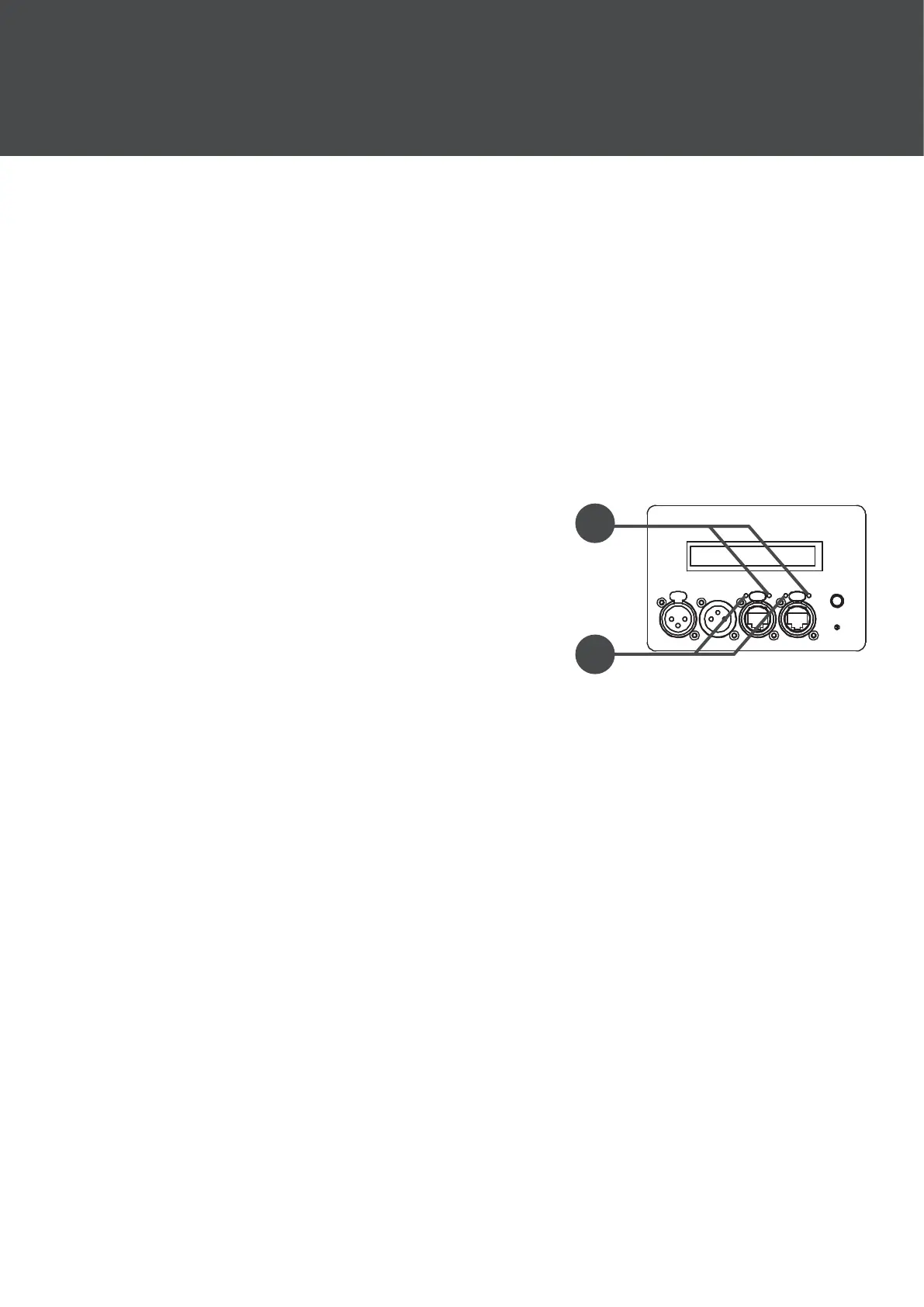

The ETH/AES connectors have two LED
indicators above them as shown in the diagram.
1. A standard Ethernet indicator and ashes
green when the connection is active.
2. This LED indicates the AESOP connection. If
the LED is inactive then AESOP is not selected.
If ashing yellow then AESOP is selected but
not locked. A solid yellow light indicates the
AESOP is selected and locked.
The status LED, see section 3.1, has the following meaning:
• Solid Green: analogue signal present
• Red Blinking: analogue input clip
• Solid Red: AES locked
