15

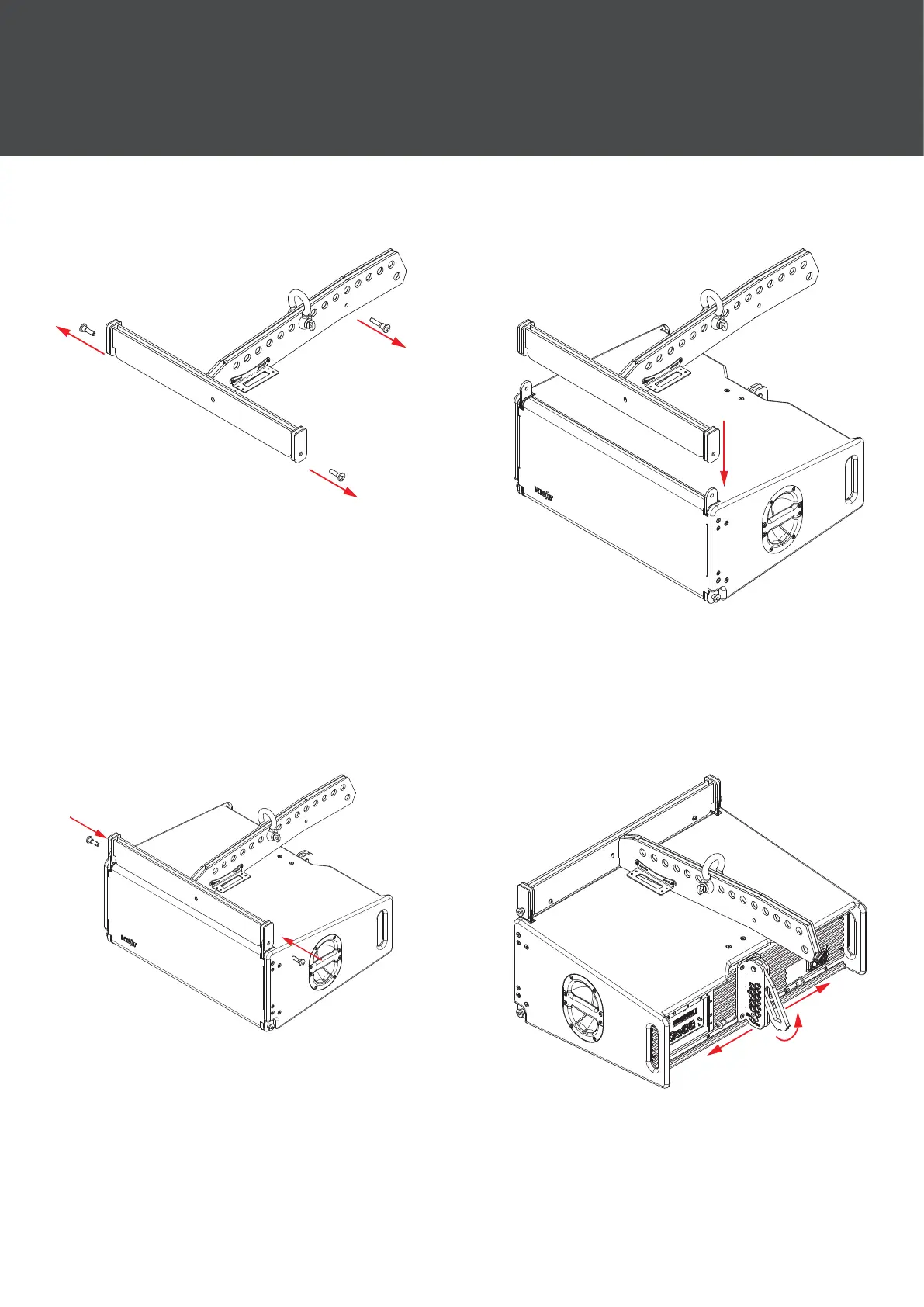

Step 1:
Remove all rigging pins from the y
frame.
Step 2:
Lower the y frame into position
aligning the front holes of the y
frame with the rigging elements on
the LA210x.
4.1.1 Fly Frame
Step 3:
Insert both pins at the front of the
y frame.
Step 4:
Remove both pins from the rear
rigging assembly to allow to rear
link to swing free.
4 Mechanical Congurations
