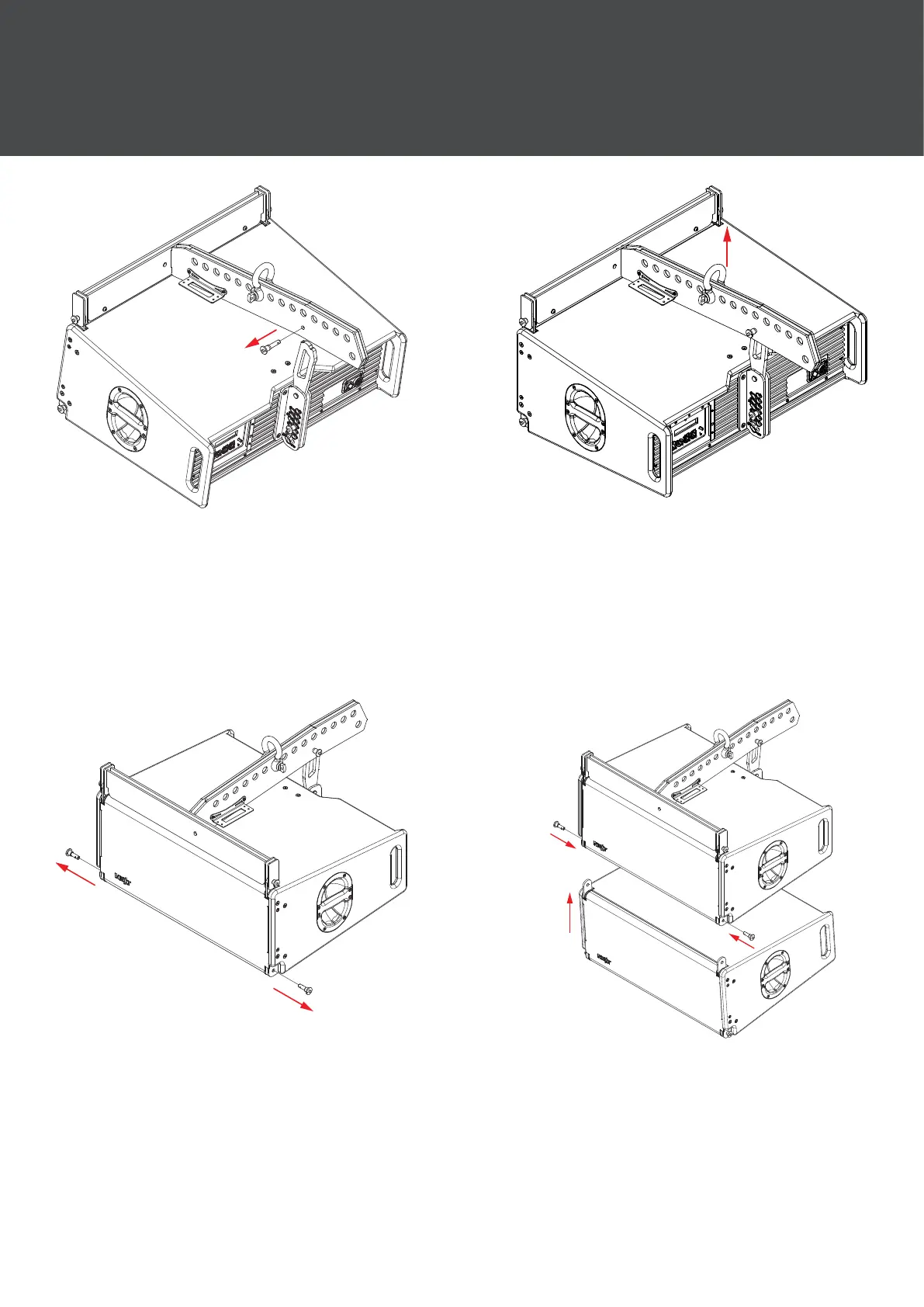

Step 5:
Rotate the rear link into position
and x it into place with the rear
pin on the y frame.
Step 6:
With the rigging in place it is now
possible to raise the assembly from
the shackle.
Step 7:
Remove the rigging pins from the
lower end of the rigging assembly.
Step 8:
Move the next cabinet into position
and x it at the front of the rigging
assembly with the rigging pins.
