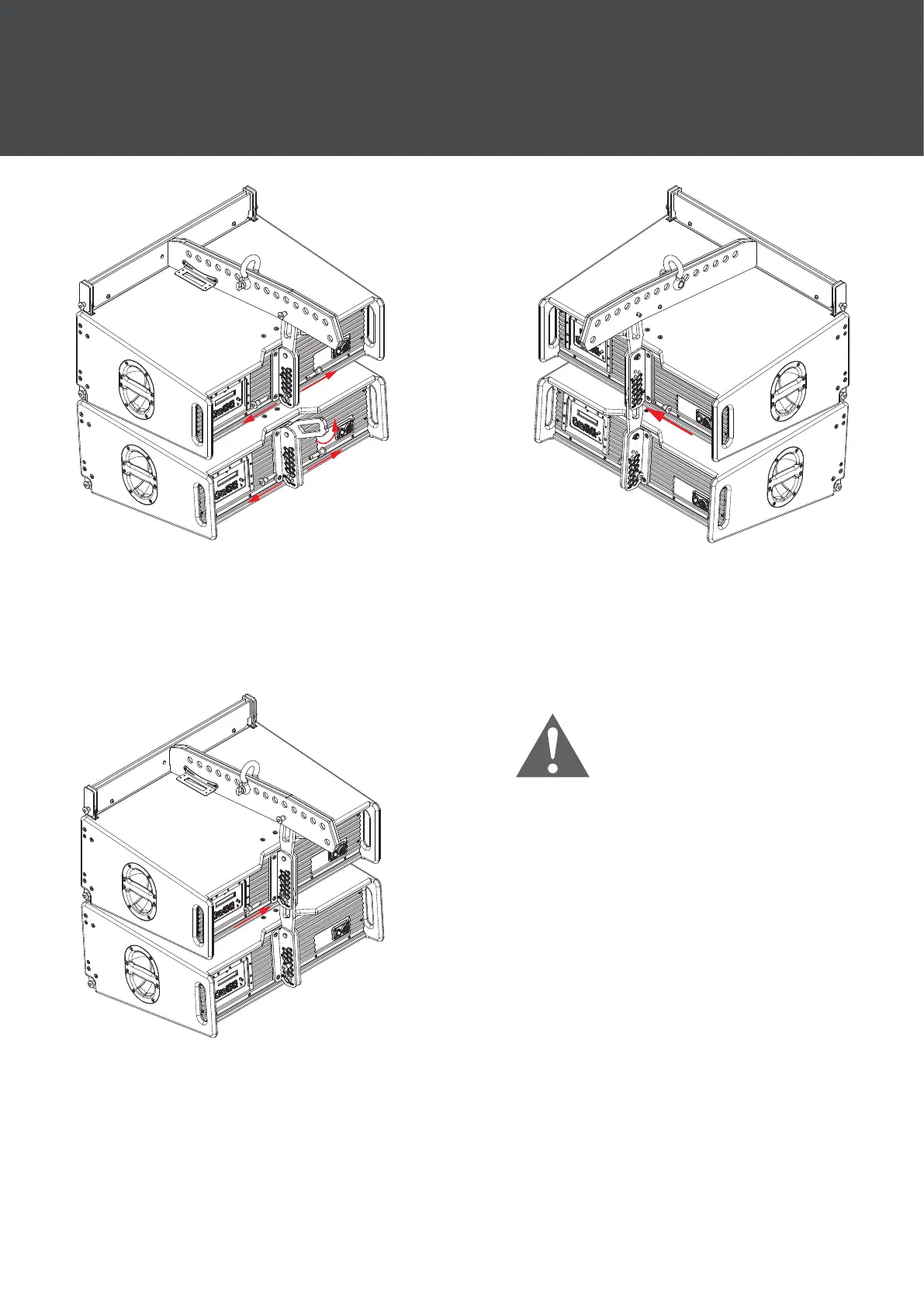

Step 9:
Remove both pins from the rear
rigging assembly on both cabinets
to release the rear link.
Step 10:
Rotate the rear link into position
and insert the pins on the right
hand side.
Note: The hole numbers
determine the splay
angle of the assembly.
To determine what angle
the cabinets should be
congured use EASE Focus.
Step 11:
Insert the left hand pin in the same hole
number as the right hand side to lock
the cabinet in position.
Repeat steps 7 to 11 for additional
cabinets as required.
