Maximum Ethernet cable distance between devices is 70m. NEXT-proaudio
advises using CAT6 S/FTP cable
3.7 Power Distribution
When linking units for power distribution the following is the maximum units that
can be linked:
Voltage LA210x LAs518A
230 V Max 6 units Max 2 units
110 V Max 4 units Max 1 unit
3 Cabling and Amplication
AES In
(XLR)
Control
In (ETH)
AESOP
Converter
AESOP
(AES + Control)
AESOP Out
(AES + Control)
Analogue
In
Analogue
Out
AESOP
(AES + Control)

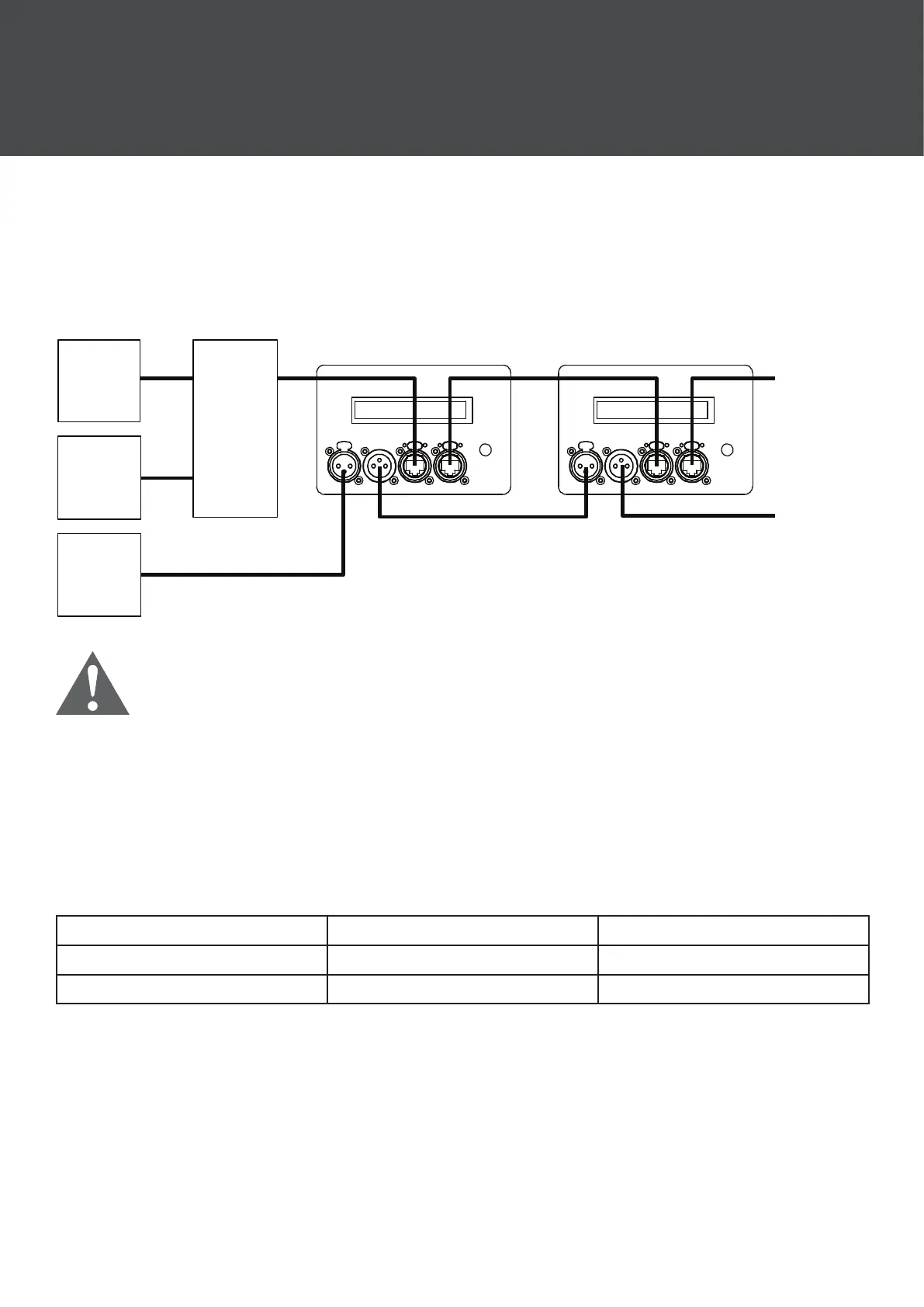

In this example if the AESOP signal is interrupted for any reason, the DSP will
switch to the analogue signal instantly (fallback option must be enabled on X-NET
software). This method is highly recommended when redundancy is needed.
