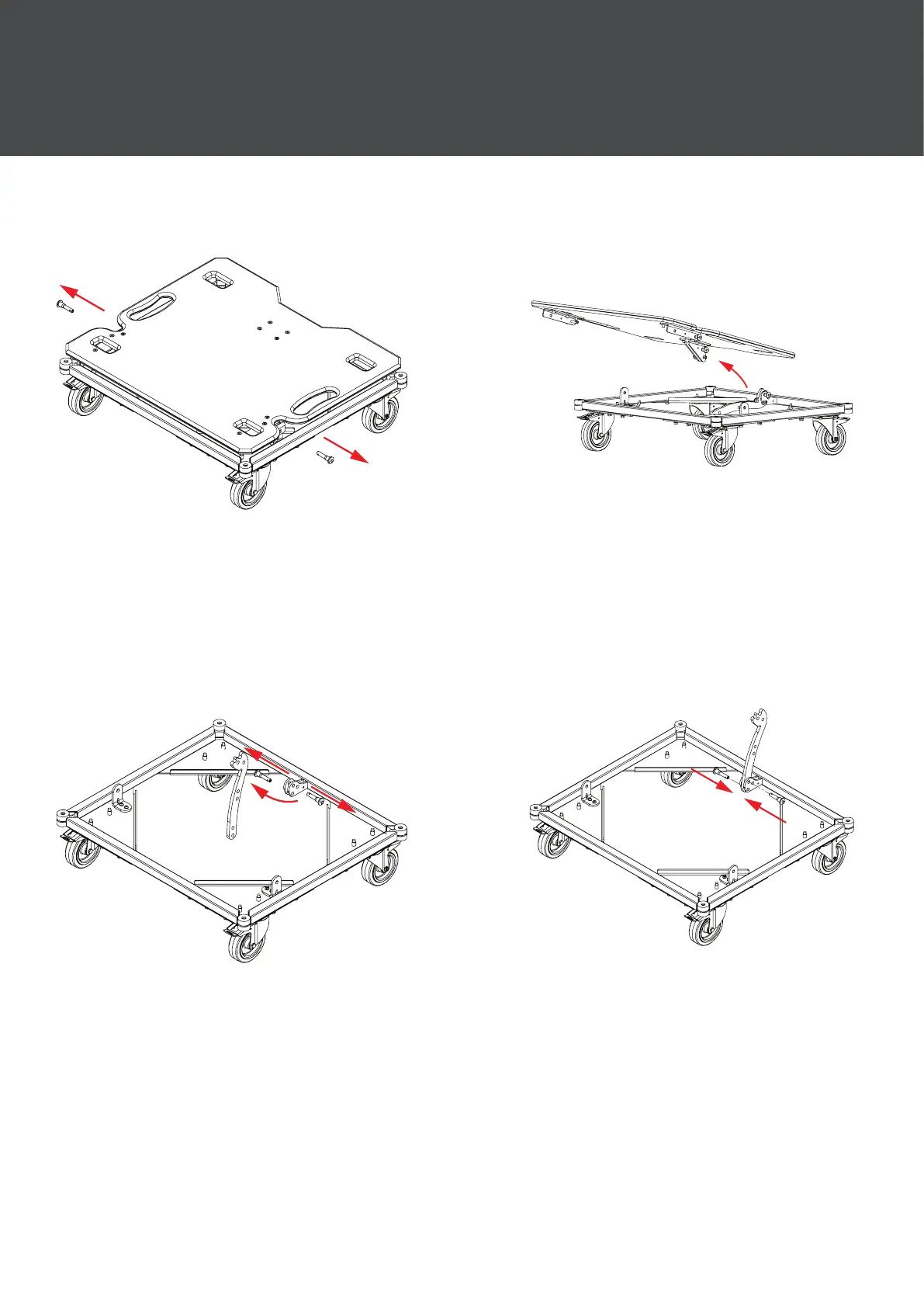

4.3.1 Transportation Dolly
Step 1:
Remove both pins from the top of
the dolly.
Step 2:
Remove the lid from the assembly.
Step 3:
Remove both pins to release the
link at the rear of the dolly.
Step 4:
Attach the rear link as shown with
the pins provided.
4 Mechanical Congurations
