4.2.2 Dolly Ground Stack

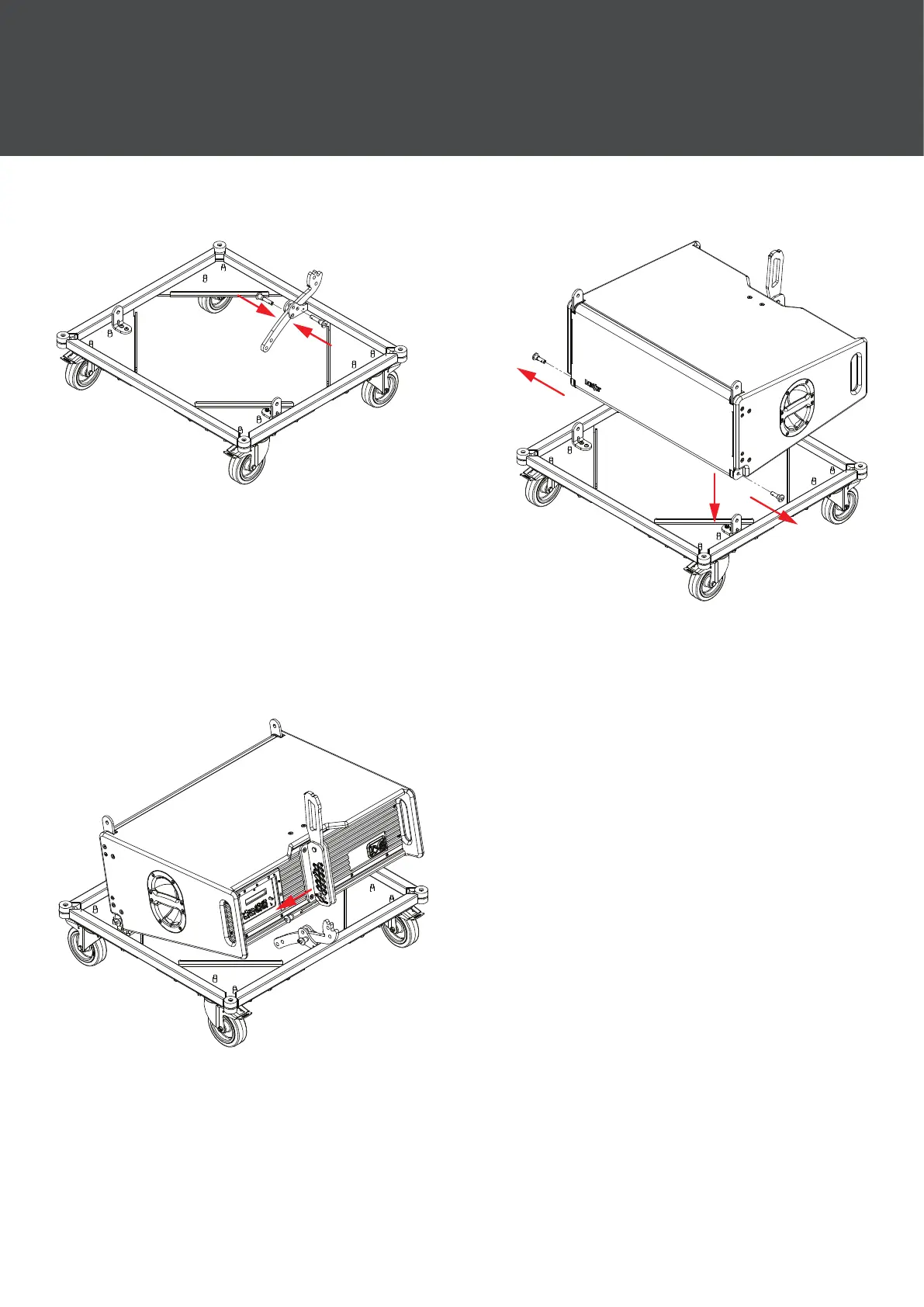

Step 1:
Move the link on the dolly to the
ground stack position as shown.
Step 2:
Lower the cabinet into position and t
to the dolly using the front pins.
Step 3:
With the right hand pin in hole number
2, marked ground stack dolly, remove
the left hand pin and lower onto the
rear link of the dolly.
